CQD-B-2040-Q Electric Reach Truck

ONEN CQD-B series sit-down reach stacker has a rated load capacity of 2 tons and a maximum lifting height of up to 4 meters. The entire vehicle adopts a compact design, optimized specifically for narrow aisle warehouse operations, effectively enhancing storage capacity utilization. Equipped with a powerful electric drive system and multi-valve hydraulic control, the vehicle features smooth mast lifting and supports functions such as forward movement and tilting. It combines the comfort of a sit-down vehicle with the energy-saving and environmentally friendly characteristics of an electric forklift, featuring zero emissions and low noise. It is an efficient and reliable solution for dense high-level warehousing.
Availability:
  • CQD-B-2040-Q

  • ONEN

  • Electric Reach Truck

  • Electric

  • 2000kg

  • Seated

  • 4000mm

  • Lead-acid / Lithium

  • Single Sided Tray, Double Sided Tray

  • CE/RoHS/SGS

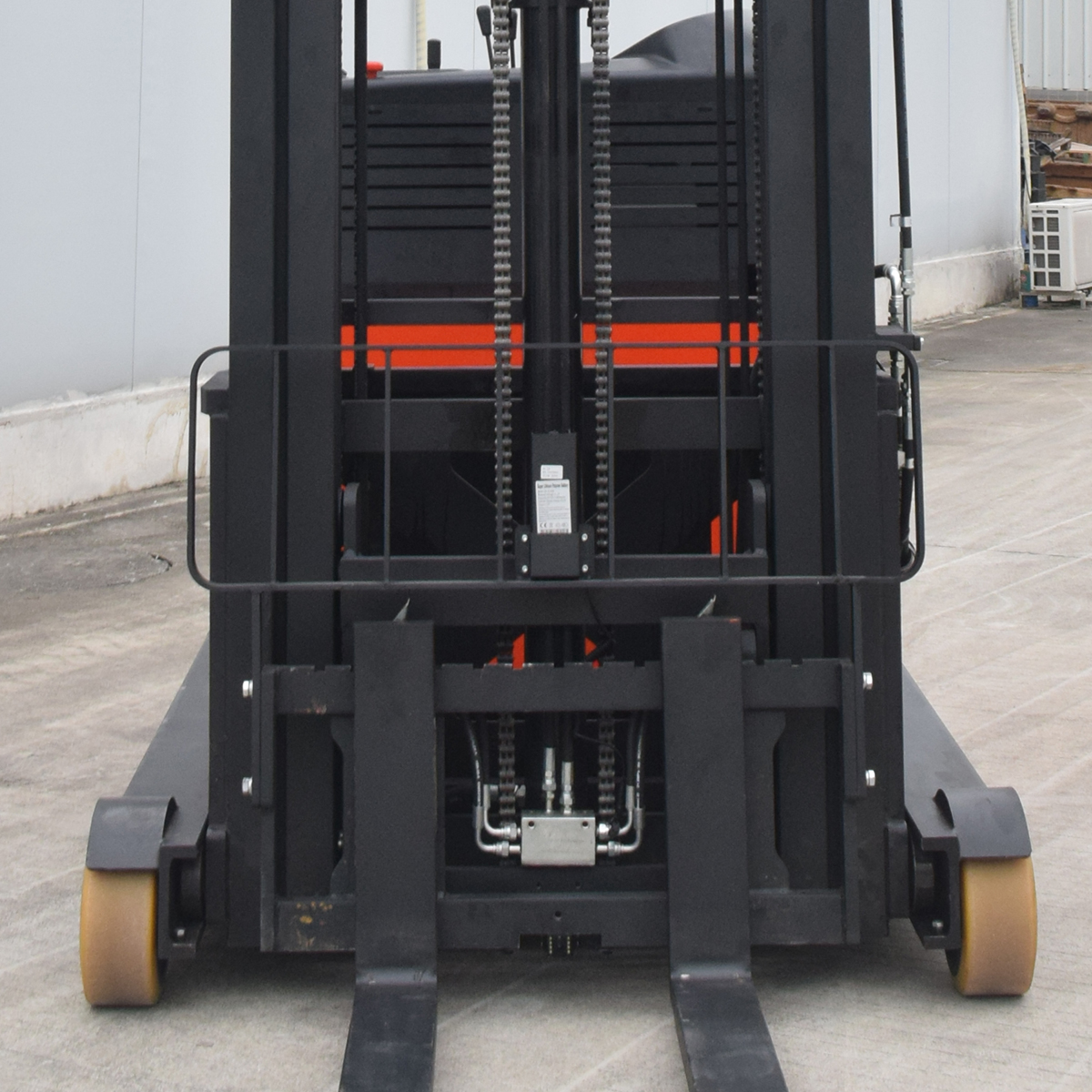

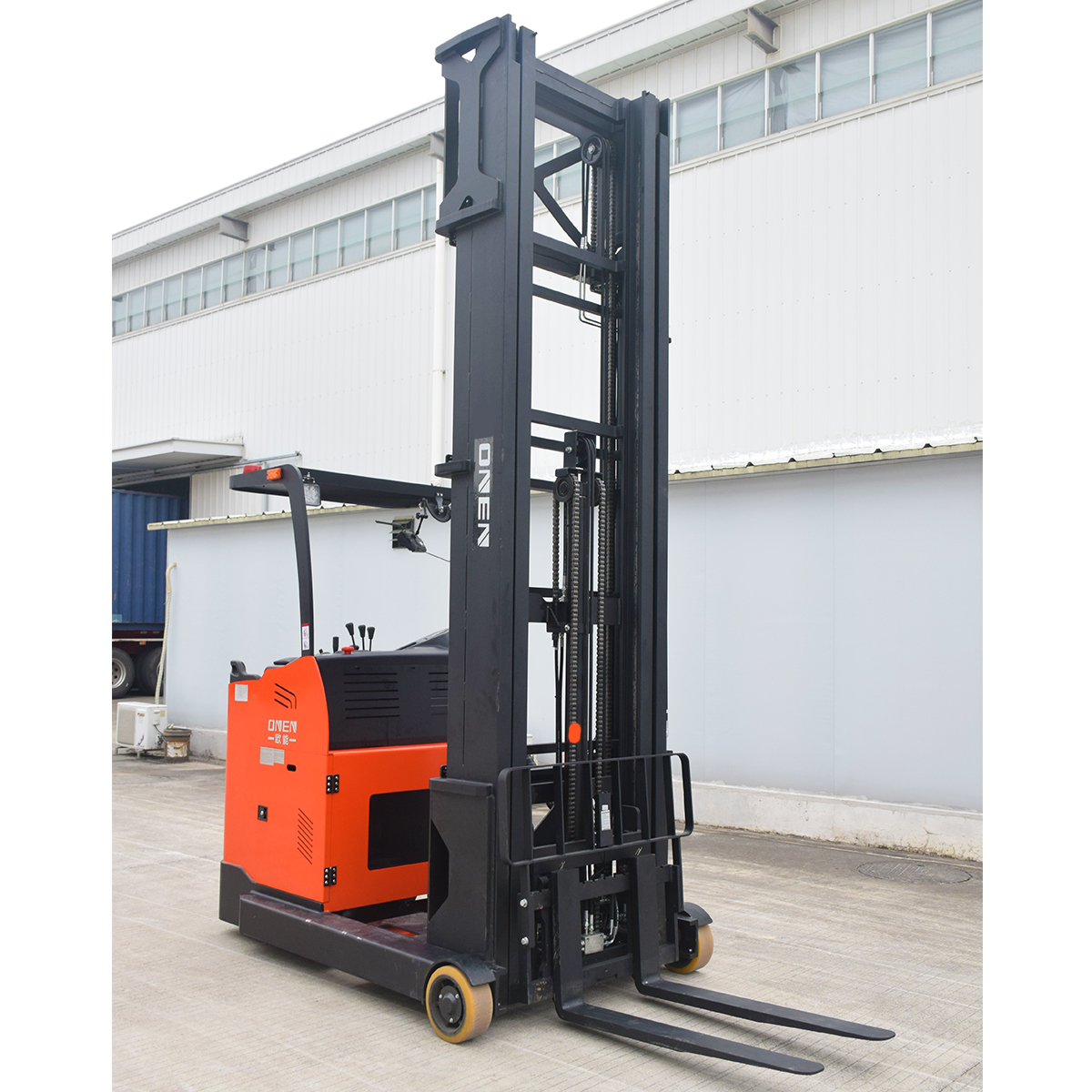

2-ton sit-down reach truck

ONEN CQD-B stacking vehicle (2-ton/4-meter configuration) is primarily suitable for high-level stacking operations in narrow passageways. In high-density warehouses or narrow alleys of production workshops, this vehicle, with its compact body and forward-moving design, can flexibly handle heavy pallets and accurately stack them up to a height of 4 meters.

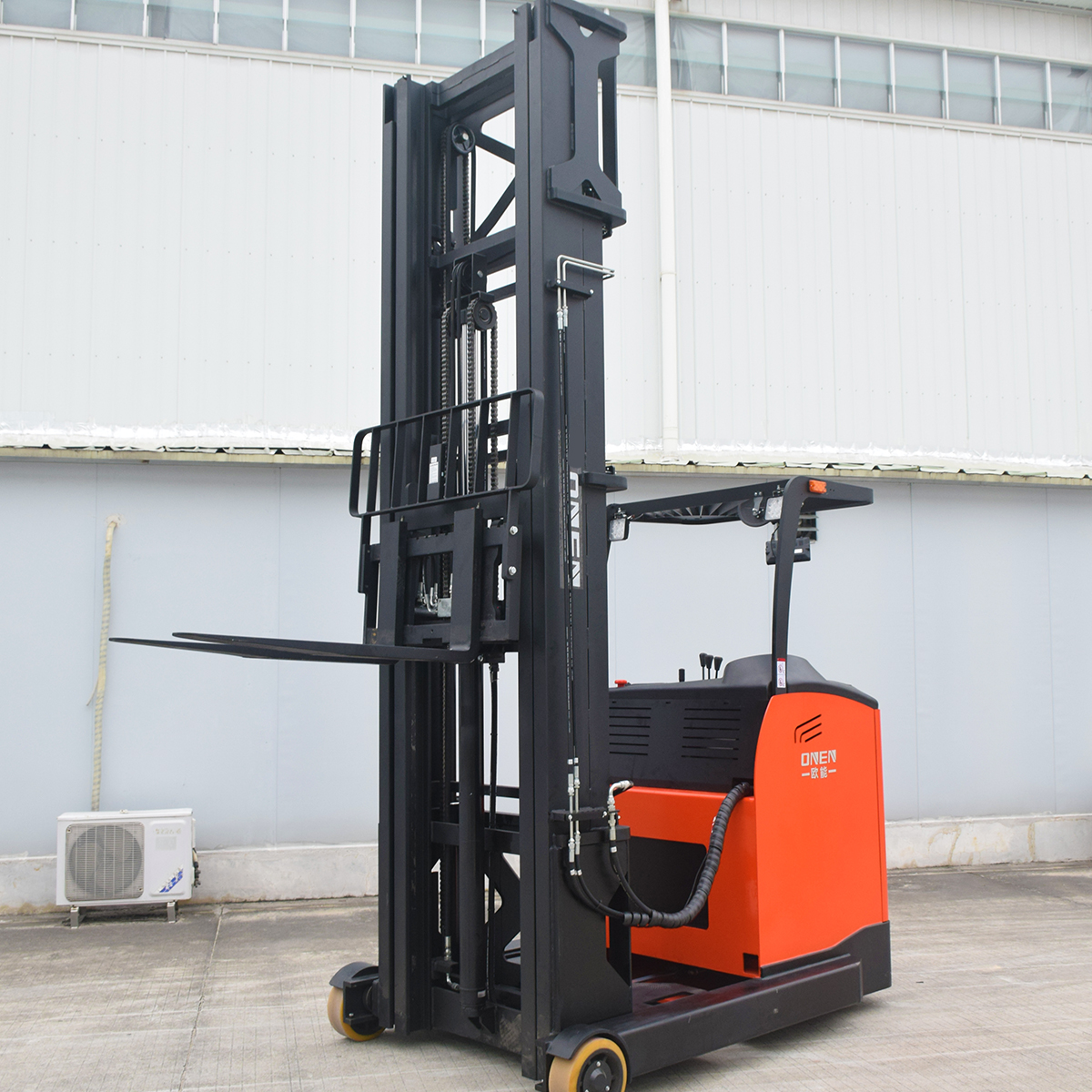

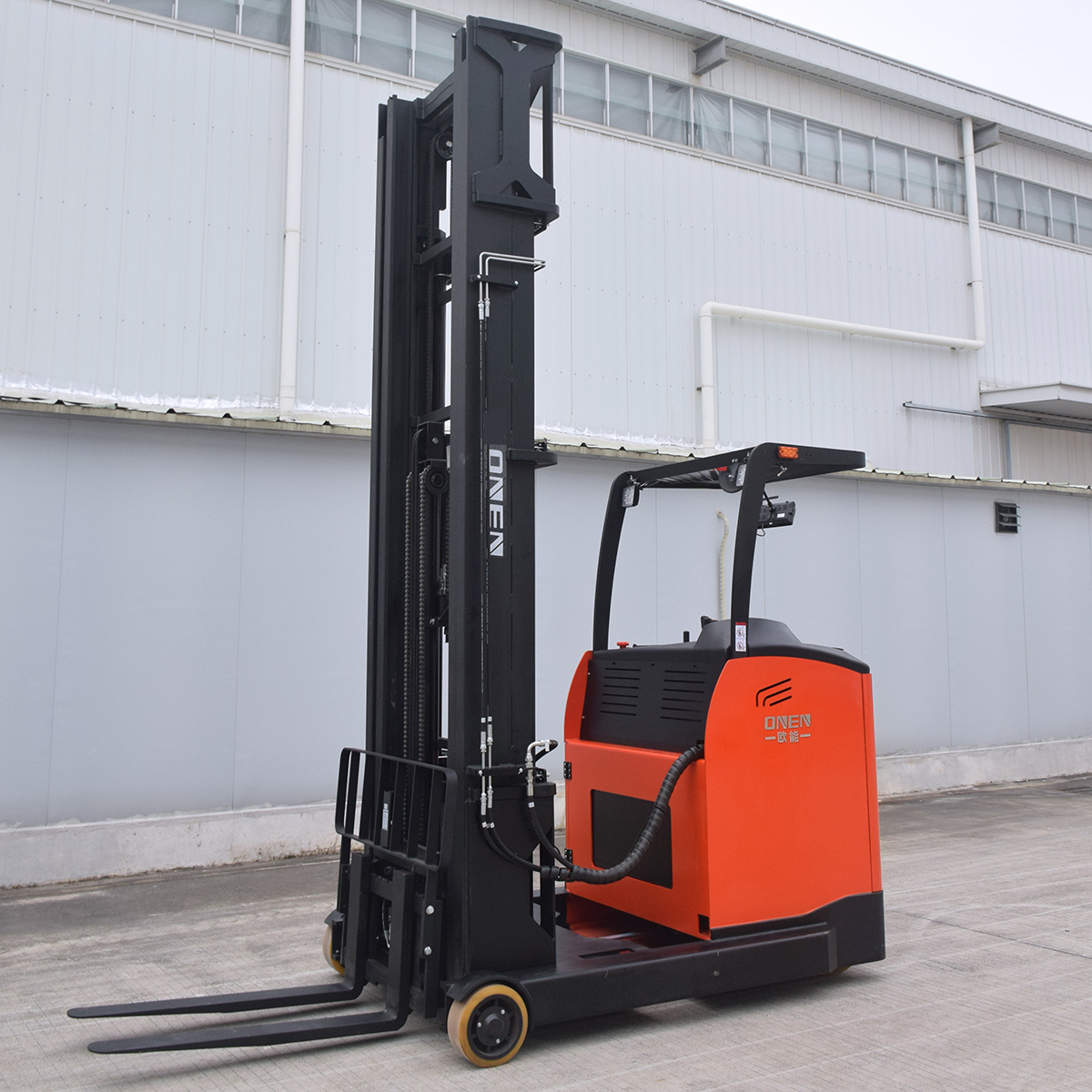

warehouse stacking forklift

It is commonly used for raw material warehousing, finished product shelving, and line-side distribution. Its saddle-type design can significantly reduce operational fatigue during prolonged work, enhancing work efficiency and safety.


1

Model

CQD-B

2

Configuration No.

2040-Q

3

Power type

Electric

4

Steering type

Electric steering

5

Operation type

Seated

6

Load capacity

kg

2000

7

Load center distance

mm

500

8

Reach Distance

mm

505

9

Wheels type

PU

10

Driving wheel size

mm

Ф382×142

11

Bearing wheel size

mm

Ф267×114

12

Overall Length (With Fork)

mm

2477

13

Overall Width

mm

1270

14

Mast lowered height

mm

2600

15

Lift height

mm

4000

16

Extended mast height

mm

4577.5

17

Fork dimensions

mm

35/100/1070

18

Turning radius

mm

1800

19

Travel speed (Laden/Unladen)

km/h

6.8/7.8

20

Lift speed (Laden/Unladen)

mm/s

120/240

21

Lowering speed (Laden/Unladen)

mm/s

315/260

22

Gradeability (Laden/Unladen)

%

≤10

23

Driving motor

kw

6.5

24

Lifting motor

kw

4.5

25

Voltage/Capacity of lead-acid battery

V/Ah

48/300

26

Lead-acid battery charger

V/A

24/40

27

Voltage/Capacity of lithium battery (Optional)

V/Ah

48/280

28

Lithium battery charger

V/A

24/50

29

Sound level at driver's ear

dB(A)

<70

Mast Table

Lift height

Mast lowered height

Free lift

Extended mast height

h3(mm)

h1(mm)

h2(mm)

h4(mm)

3000

2100

3577.5

3500

2350

4077.5

4000

2600

4577.5

4500

2100

1500

5465

5000

2280

1660

5965

5500

2450

1820

6465

6000

2620

1980

6965

6500

2790

2140

7465

7000

3210

2320

7965
