CPDD-V-3030
ONEN
Lithium forklift
Electric
3.0T
Seated
500mm
Pneumatic Tire / Solid Core Tire
3m
1070mm
2500mm
Lithium Battery
Single Sided Tray, Double Sided Tray
80V/280Ah or 80V/410Ah or 80V/560Ah
80V/100A
support
Warranty for one year or 2000 hours (5-year warranty for lithium batteries)
CE/RoHS/SGS
CPDD-V-3030
About the CPDD-V-3045

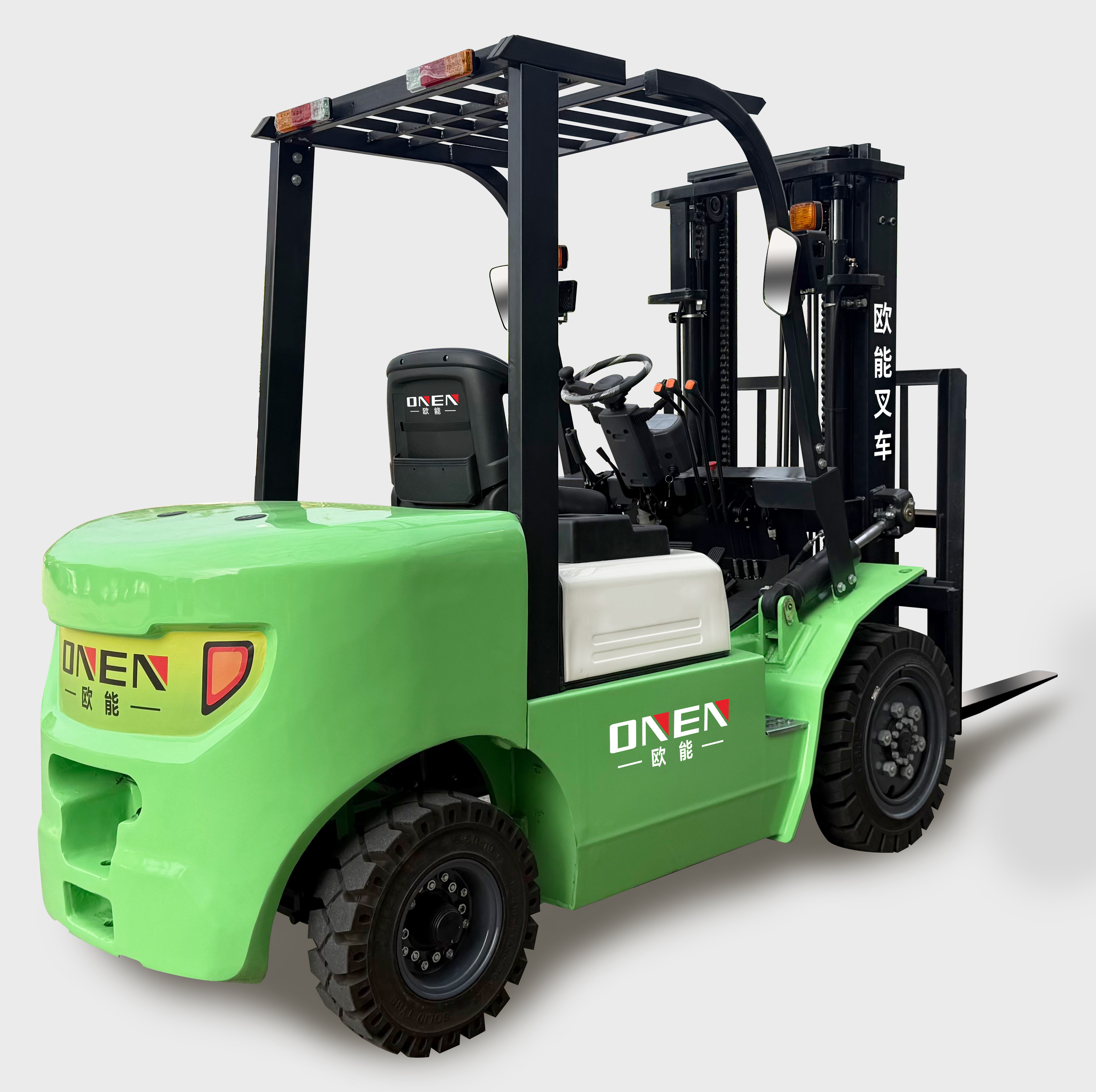

CPDD-V-3030 is a balance weight electric forklift with a load capacity of 3000kg. It is equipped with an 80V lithium battery and a vehicle mounted operation, suitable for high-intensity indoor and outdoor operations.
The forklift has a lifting height of 3000mm and a height of 2070mm when the door frame is lowered. It is equipped with a 130mm free lifting distance, a vehicle width of 1220mm, and a turning radius of only 2500mm. It has good flexibility in narrow passages.
In terms of performance, the full load speed is 13.5km/h, and the empty load speed is 14.5km/h; Full load climbing slope of 15%, equipped with solid or inflatable tire options, with strong load-bearing capacity. The lithium battery system supports fast charging and long battery life, with maintenance costs lower than traditional lead-acid batteries, making it suitable for industries such as logistics and manufacturing.
Core specifications for the CPDD-V-3030.
1 | Model | CPDD-V | ||
2 | Configuration No. | 3030 | ||
3 | Power type | Electric | ||
4 | Operation type | Seated | ||
5 | Load capacity | kg | 3000 | |
6 | Load center distance | mm | 500 | |
7 | Wheels type | Pneumatic tires/Solid tires(Optional) | ||
8 | Tyre size (Front) | 28×9-15-14PR | ||
9 | Tyre size (Rear) | 6.5-10-10PR | ||
10 | Mast lowered height | mm | 2070 | |
11 | Free lift | mm | 130 | |
12 | Lift height | mm | 3000 | |
13 | Full height at maximum lifting | mm | 4173 | |
14 | Tilt of mast carriage (Forward/Backward) | ° | 6/12 | |
15 | Overall length（Without forks） | mm | 2760 | |
16 | Overall width | mm | 1220 | |
17 | Turning radius | mm | 2500 | |
18 | Aisle width for pallets 1000×1200 | mm | 4080 | |
19 | Maximum Travel speed (Laden/Unladen) | km/h | 13.5/14.5 | |
20 | Maximum Lift speed (Laden/Unladen) | mm/s | 290/400 | |
21 | Maximum Lowering speed (Laden/Unladen) | mm/s | 390/380 | |
22 | Gradeability (Laden/Unladen) | % | 15/15 | |
23 | Voltage/Capacity of lithium battery | V/Ah | 80/205 | |
24 | Lithium battery charger | V/A | 80/100 | |
