CPC/CPCD-3550 Diesel Forklift

Load Capacity: 3500kg
lift height: 5000mm
engine model: Xinchai / Quanchai / YANMAR / KUBOTA

Availability:
  • CPC/CPCD-3550

  • ONEN

  • Diesel Forklift

  • Diesel

  • 3.5T

  • Seated

  • 500mm

  • Pneumatic Tire / Solid Core Tire

  • 5m

  • 1070mm

  • 2240mm

  • 60L

  • Xinchai / Quanchai / YANMAR / KUBOTA

  • Single Sided Tray, Double Sided Tray

  • Support

  • Warranty for one year or 1000 hours

  • CE/RoHS/SGS

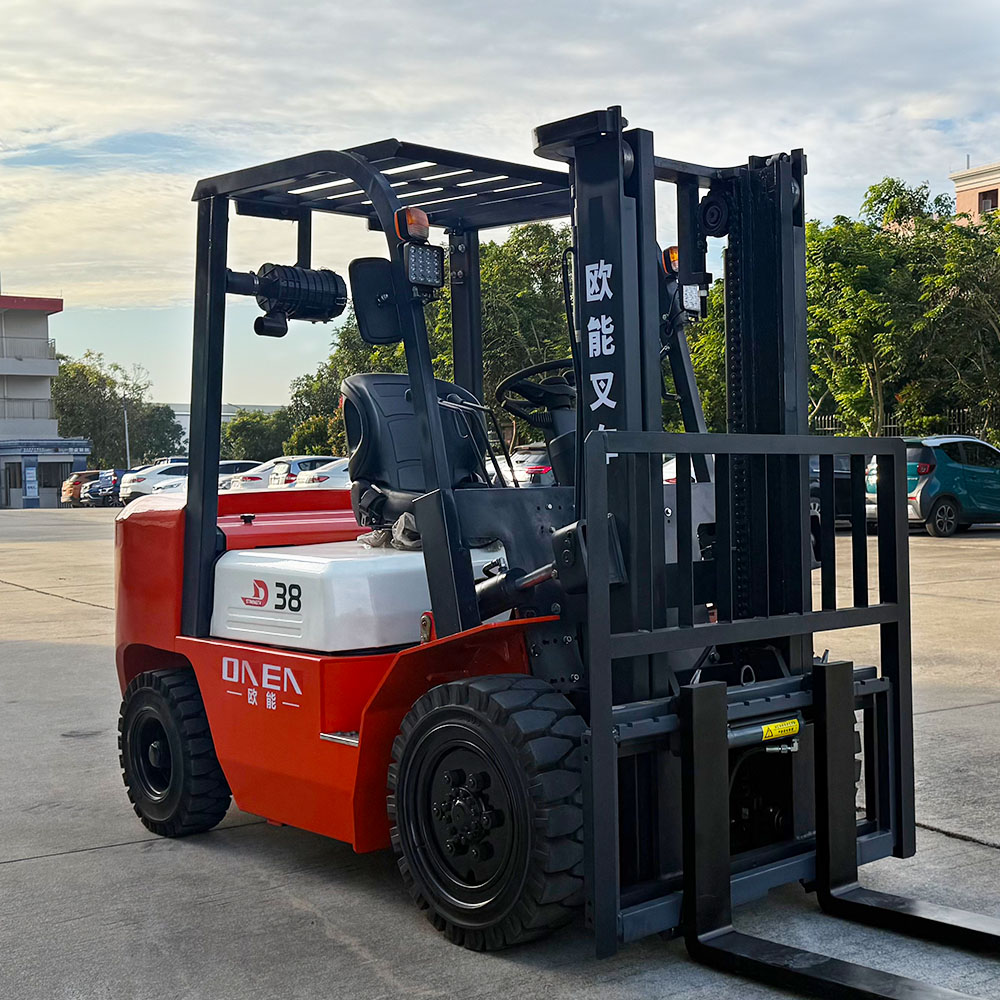

China diesel forklift exporter

ONEN CPC/CPCD-3550 diesel forklift is primarily designed for outdoor heavy-duty and medium-to-high-level stacking applications. With its diesel power, the forklift boasts strong endurance, making it suitable for road conditions such as ports, docks, construction sites, and open storage yards in factories.

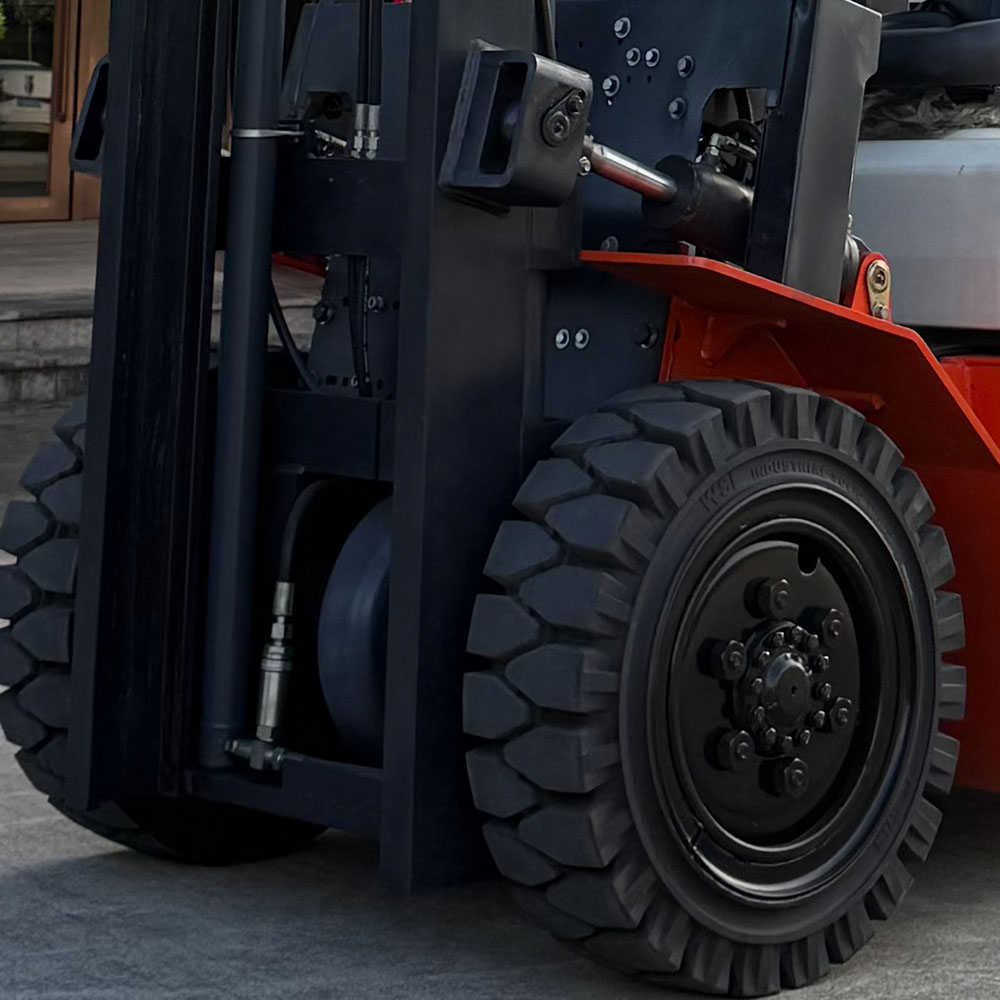

Manual diesel forkliftWith a lifting height of 5 meters, it can meet the needs of stacking three layers of goods or loading and unloading trucks. The counterbalanced design is suitable for heavy-duty long-distance handling and can withstand harsh environments such as rain, snow, and rough terrain.


1 Model
CPC3550/CPCD3550
2 Powertype
diesel
3 Operation type
seated
4 Load capacity kg 3500
5 Load centre distance mm 500
6 Wheels type
Solid tires/Pneumatic tires(Optional)
7 Tire specification(Front/Rear)
28x9-15/6.50-10
8 Fork length mm 1070
9 Width overall forks (Adjustable) mm 1100/250
10 Overall Length (Without fork) mm 2690
11 Overall Width mm 1210
12 Lift height mm 5000
13 Extended mast height mm 5560
14 Mast lowered height mm 2285
15 Free height mm 1700
16 Tilt of mast carriage (Forward/Backward) α/β 6°/12°
17 Turning radius mm 2240
18 Travelspeed (Laden/Unladen) km/h 18/20
19 Lift speed (Laden/Unladen) mm/s 485/505
20 Lowering speed (Laden/Unladen) mm/s <600
21 Gradeability (Unladen) % 20
22 Service brake
Power brake (Pedal)
23 Parking brake
Mechanical (Manual)
24 Fuel capacity L 60
25 Engine model
Xinchal/Quanchai/YANMAR/KUBOTA
26 Battery (Voltage/Capacity) V/Ah 12/80
