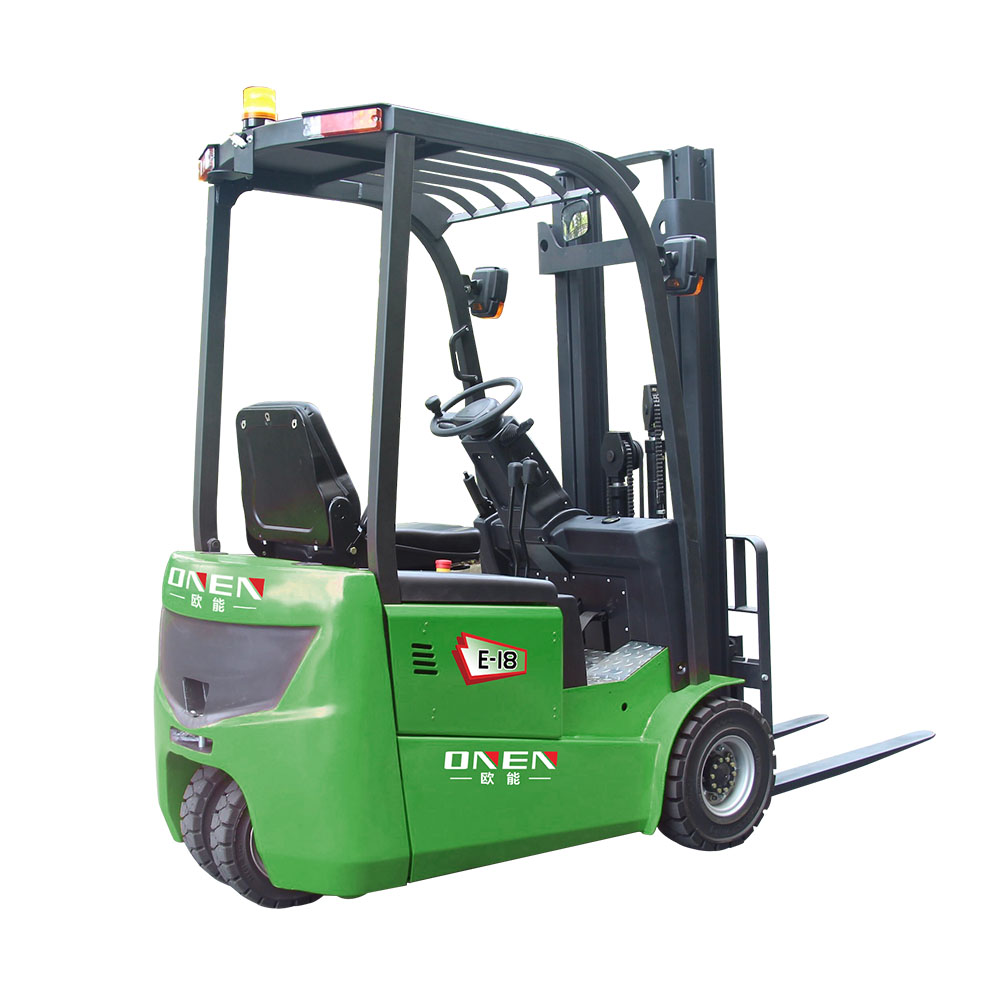

CPDD-1830, Three-Point Electric Forklift

Load Capacity: 1.8T
lift height: 3m
Battery: 48VLi-Ion
Availability:
  • CPDD-1830

  • ONEN

  • Three-Point Electric Forklift

  • Electric

  • 1.8T

  • Seated

  • 400mm

  • Pneumatic Tire / Solid Core Tire

  • 3000mm

  • 1603mm

  • Lithium Battery

  • Single Sided Tray, Double Sided Tray

  • 48V/200Ah or 48V/280Ah

  • 48V/50A or 48V/100A

  • support

  • Warranty for one year or 2000 hours (5-year warranty for lithium batteries)

  • CE/RoHS/SGS


Warehouse Storage Equipment

CPDD three-point forklift, with its compact body design and small turning radius, is primarily suitable for handling scenarios in narrow passageways.

The fully electric counterbalanced structure enables the forklift to perform excellently in factory floors with horizontal floors, small and medium-sized warehouses, and high-rack warehouses, flexibly completing stacking and pallet handling tasks.




Counterbalanced ForkliftFurthermore, the three-point forklift is equipped with outdoor operation capabilities, allowing it to be used interchangeably in factory areas, indoors, and outdoors, adapting to long-duration working conditions.


1 Model
CPDD
2 Configuration No.
1830
3 Power type
Electric
4 Operation type
Seated
5 Load capacity kg 1800
6 Load center distance mm 400
7 Wheels type
       Pneumatic tires /Solid tires(Optional)
8 Tyre size (Front)
18×7-8
9 Steering wheel
140/55-9
10 Mast lowered height mm 2075
11 Free lift mm /
12 Lift height mm 3000
13 Extended mast height mm 3863
14 Fork length mm 1070
15 Overall length (Without forks) mm 1956
16 Overall width mm 1078
17 Overall height mm 2075
18 Turning radius mm 1603
19 Ground clearance (Center of wheelbase, laden) mm 90
20 Travel speed (Laden/Unladen) km/h 8.0/9.0
21 Lift speed (Laden/Unladen) mm/s 184/194
22 Lowering speed (Laden/Unladen) mm/s 186/179
23 Gradeability (Laden/Unladen) ° 10
24 Driving motor kw 6
25 Lifting motor kw 4
26 Voltage/Capacity of lithium battery V/Ah 48/200 or 48/280
27 Lithium battery charger V/A 48/50 or 48/100
