Product Advantages • Flexible Aerial Maneuverability — The platform moves quickly or slowly at various working heights and supports continuous up/down, forward/backward, and turning motions from the air, enabling efficient multi-directional task completion without frequent repositioning. • Triple Safety Protection System — Equipped with a manual descent function, overload protection, and an active pothole protection device to ensure operator safety and prevent accidents in uneven floor conditions. • Heavy-Duty Structural Durability — Constructed from high-quality structural steel, the lift delivers reliable, long-lasting performance under demanding industrial use while maintaining stability at full extension. • High Reach & Versatile Load Capacity — Achieves a maximum working height of 14 meters with a load capacity ranging from 300 kg to 550 kg, making it suitable for diverse environments including factory workshops, lobbies, airports, and parks.

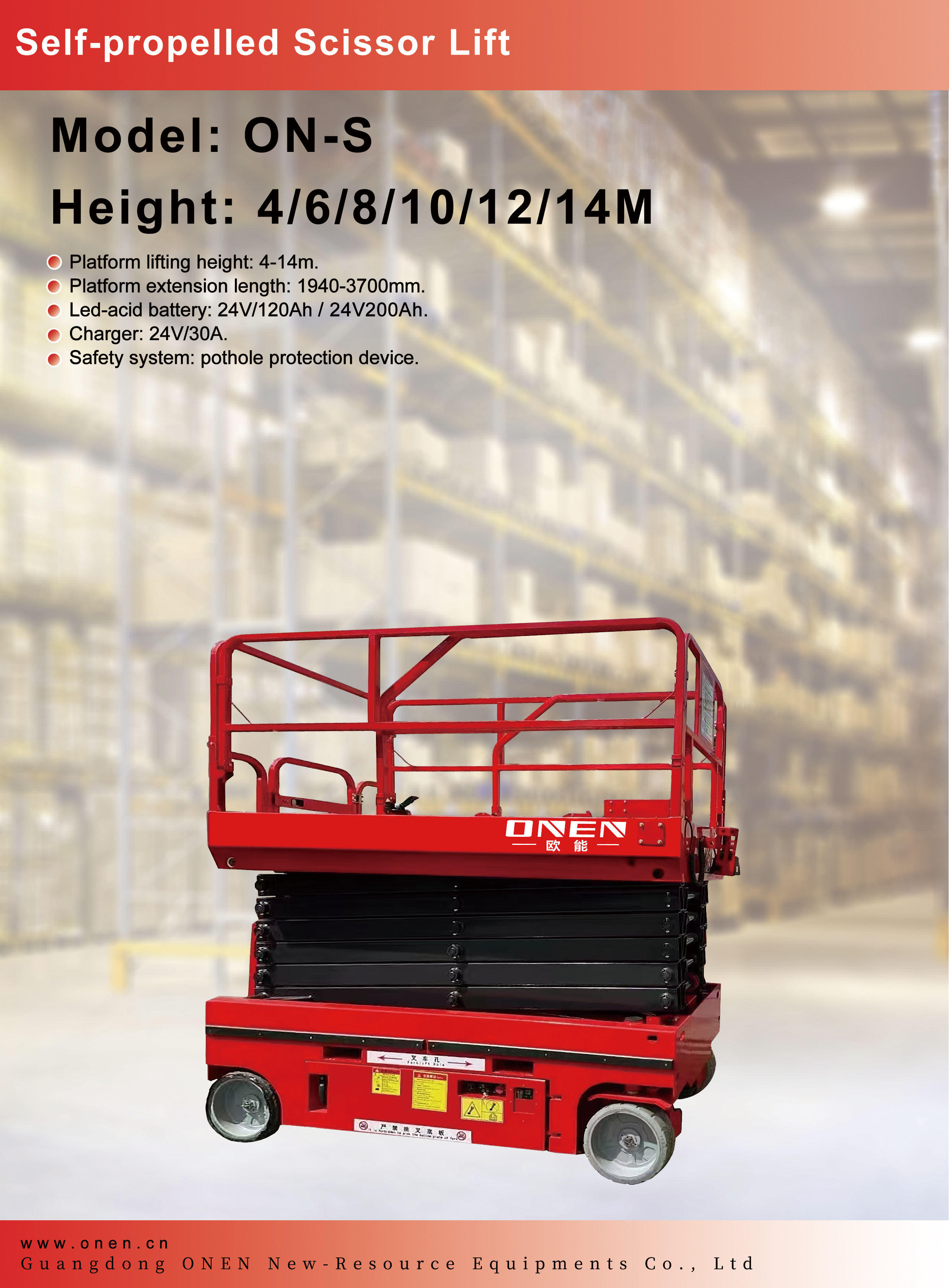

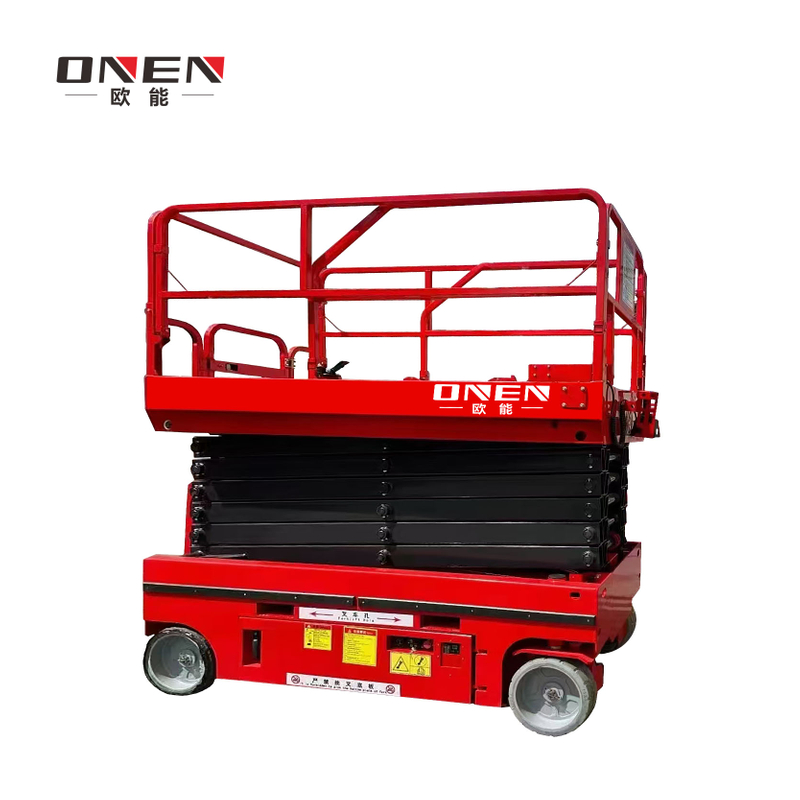

ON-S Self-Propelled Scissor Lift — Drive It, Extend It, Work Smarter at Height
Battery-Powered Aerial Mobility — The End of Towing, Pushing, and Repositioning
Does your maintenance crew waste valuable minutes climbing down, moving a platform, and climbing back up every time a job shifts five meters to the left?
The ONEN ON-S Series eliminates that downtime entirely. This is a true self-propelled electric scissor lift: operators drive, steer, raise, lower, and extend the deck—all from the platform controls. Available in vertical reach options from 4 m to 14 m and load ratings from 300 kg to 550 kg, the ON-S covers everything from narrow retail aisles to expansive factory floors. Powered by a maintenance-friendly 24 V lead-acid battery system and finished with a zero-emission electric drive, it is quiet enough for shopping malls yet robust enough for industrial warehouses.
Unlike traction-type units that require external towing, the ON-S moves under its own power even while elevated, letting technicians reposition seamlessly between overhead tasks without ever leaving the platform.
Engineered for Efficiency — Six Design Advantages
1. Drive-While-Elevated — Continuous Workflow
The ON-S travels at 3.5 km/h with the deck lowered for rapid site-to-site transit, and at 0.8 km/h while fully raised. This means no more descending, no more manual pushing, and no waiting for a forklift to relocate the machine. The result is more tasks completed per shift and measurably lower labor fatigue.
2. Slide-Out Platform Extension — Reach Without Relocating
The work deck telescopes outward to provide additional horizontal reach up to 3.7 meters on larger models. Technicians can bridge shelving gaps, access façade overhangs, or service conveyor systems without the downtime of repositioning the chassis. This single feature often cuts total job time by 20–30 % on maintenance routes.
3. Active Pothole Protection — Ground-Level Safety Intelligence
Uneven warehouse floors, loading dock transitions, and outdoor pavement gaps create tipping hazards. The ON-S integrates an automatic pothole-protection system that detects ground voids and prevents descent or travel when an unsafe condition is detected. It is an active safety layer that protects both operators and surrounding infrastructure.
4. Narrow-Chassis Maneuverability — Fits Where Others Cannot
With an overall width starting at just 780 mm on the compact ON-S0406, the smallest unit passes through standard single doorways and narrow warehouse aisles. Even the largest 14-meter model maintains a tight footprint relative to its reach, making the ON-S equally effective in congested indoor retail centers and open factory bays.
5. Zero-Emission Battery Power — Indoor-Friendly, All-Day Endurance
The 24 V system (available in 120 Ah or 200 Ah configurations) pairs with a 24 V/30 A onboard charger for straightforward overnight or opportunity charging. No exhaust fumes, no engine noise, and no hydraulic oil contamination risk—just clean electric performance approved for food-processing plants, hospitals, and clean logistics environments.
6. Fold-Down Guardrails — Low Stowed Height for Easy Transport
When the job is finished, the guardrail system folds neatly, reducing the overall stowed height to as low as 1,690 mm on select models. This allows the ON-S to roll into standard freight elevators, pass through basement-level doorways, and load onto common flatbed trucks without disassembly.

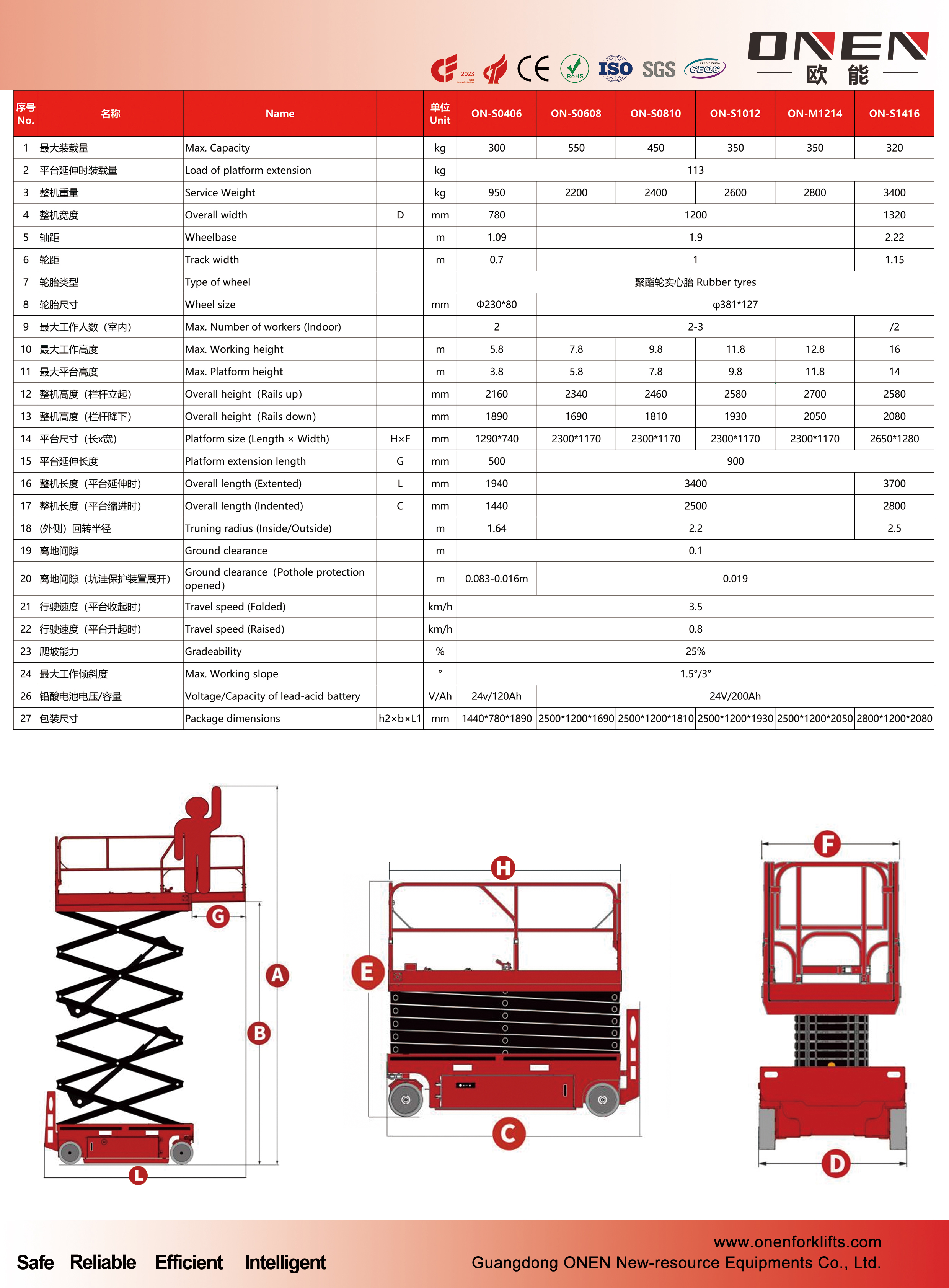

Specifications — Match the Model to Your Facility
Parameter
ON-S Series Range
Why It Matters for Your Operation
Max. Platform Height
3.8 m – 14 m
Direct access to single-story ceilings up to multi-story atriums
Max. Working Height
5.8 m – 16 m
Safe overhead reach for a standing operator with tools
Platform Capacity
300 – 550 kg
Supports 2–3 workers plus materials or heavy tooling
Extended Platform Length
Up to 3,700 mm
Overhead access across shelving bays without moving the base
Overall Width
780 – 1,320 mm
Navigates narrow retail aisles and standard industrial doorways
Overall Length (Folded)
1,440 – 2,800 mm
Compact enough for elevator transport and tight storage
Travel Speed (Folded)
3.5 km/h
Rapid relocation between distant work zones
Travel Speed (Raised)
0.8 km/h
Fine positioning while elevated for delicate overhead tasks
Gradeability
25 %
Handles ramps between warehouse levels and outdoor gradients
Max. Working Slope
1.5° / 3°
Stable operation on slightly sloped factory floors
Battery Configuration
24 V / 120 Ah or 200 Ah
Scalable energy storage for light or heavy daily cycles
Tire Type
Solid rubber / polyurethane
Non-marking options available; puncture-proof for debris
Certified for Global Markets — No Compliance Guesswork
Guangdong ONEN New-resource Equipments Co., Ltd. leverages three decades of manufacturing expertise to build every ON-S unit to international standards. The certification portfolio covers:
ISO 9001 / 45001 / 14001 — Quality, occupational health, and environmental management systems
CE Machinery Directive — Full European market access without costly retrofitting
SGS Independent Verification — Third-party validation of structural and electrical safety
RoHS Environmental Compliance — Supports corporate ESG targets and green procurement policies
TX Type Test & Special Equipment Production License — Meets domestic bidding thresholds for state-owned enterprises and large industrial contractors
What this means for buyers:
Export distributors receive CE-compliant documentation for smooth customs clearance and dealer registration.
Rental fleet operators benefit from standardized production consistency and lower total cost of ownership.
Facility managers gain peace of mind knowing every unit is traceable to an audited quality system.

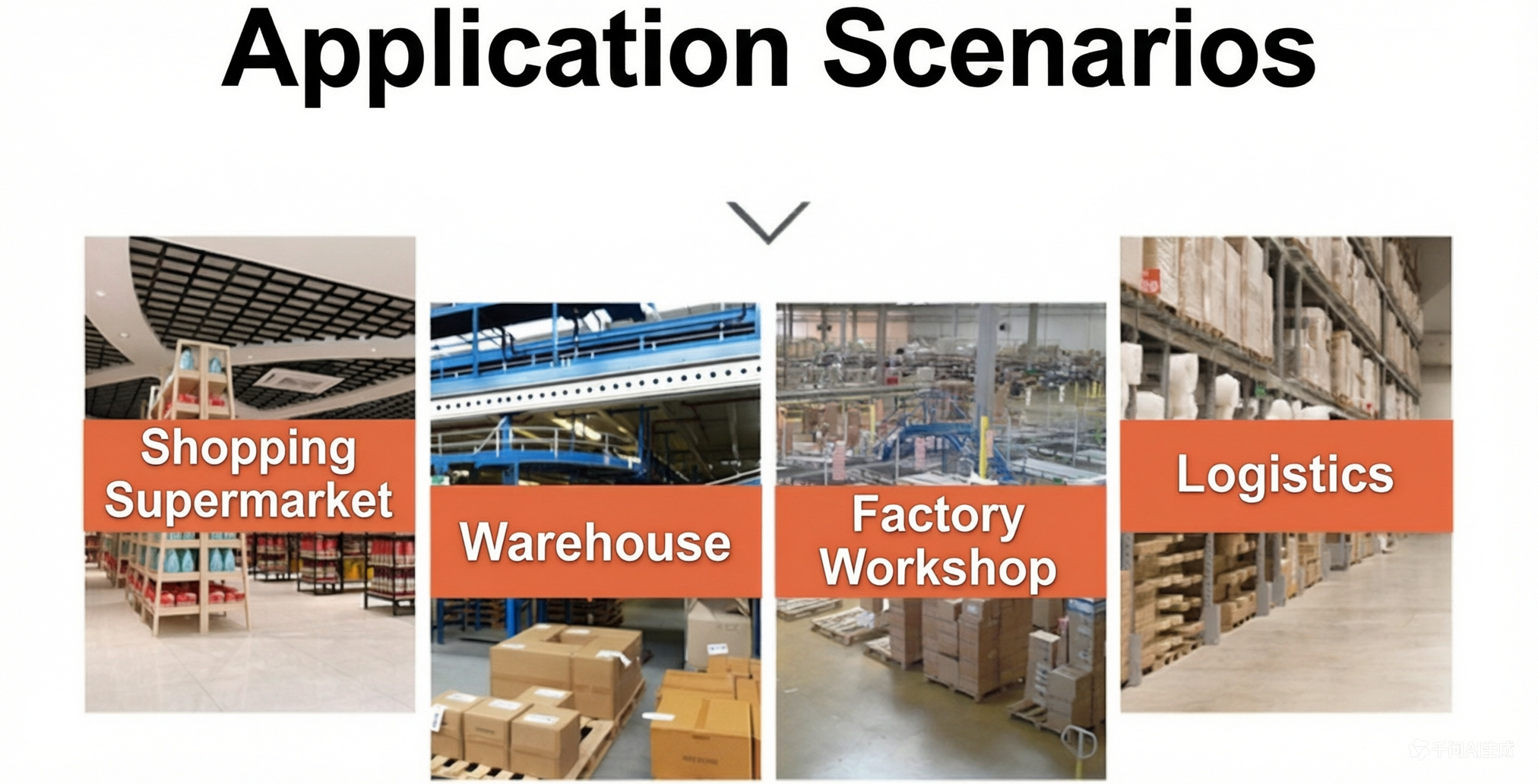

Born for Real-World Conditions — Application Scenarios
Retail & Shopping Centers
Install signage, service HVAC diffusers, or maintain lighting grids above sales floors. The whisper-quiet electric drive and compact width let the ON-S operate during business hours without disrupting customers.
Warehouses & Distribution Hubs
Reach high-bay racking for inventory audits, conveyor maintenance, or sprinkler inspections. The extended deck reaches deep over pallet rows, while solid tires leave no black marks on polished concrete.
Factory Workshops & Assembly Plants
Perform overhead crane inspections, pipe installations, and equipment servicing. The pothole-protection system guards against floor drain gaps and uneven mezzanine transitions common in aging industrial buildings.
Logistics Terminals & Airports
Load-bridge repairs, parking-garage lighting retrofits, and baggage-handling system maintenance. Self-propulsion eliminates the need for tug vehicles in secure zones.
Ready to Add the ON-S to Your Fleet?
Whether you are a rental company building an aerial inventory, a facilities contractor standardizing maintenance equipment, or a trading partner sourcing CE-certified platforms for regional distribution, we can configure the right ON-S model for your volume and voltage requirements.
[Request a Custom Quote] — Share your target working height, daily operating hours, and indoor/outdoor mix. We will recommend the optimal battery capacity and platform size within 24 hours.
[Schedule a Live Factory Tour] — View our scissor-lift assembly line, hydraulic test bench, and finished-goods commissioning area in real time.
[Download the ON-S Technical Datasheet] — Receive PDF specifications, dimensional drawings, and certification scans for your engineering review.
