ON
ONEN
steels
Suitable for factory workshop, square lobby airport, park and other high-altitude work needs of customers.
230/450/320/320kg

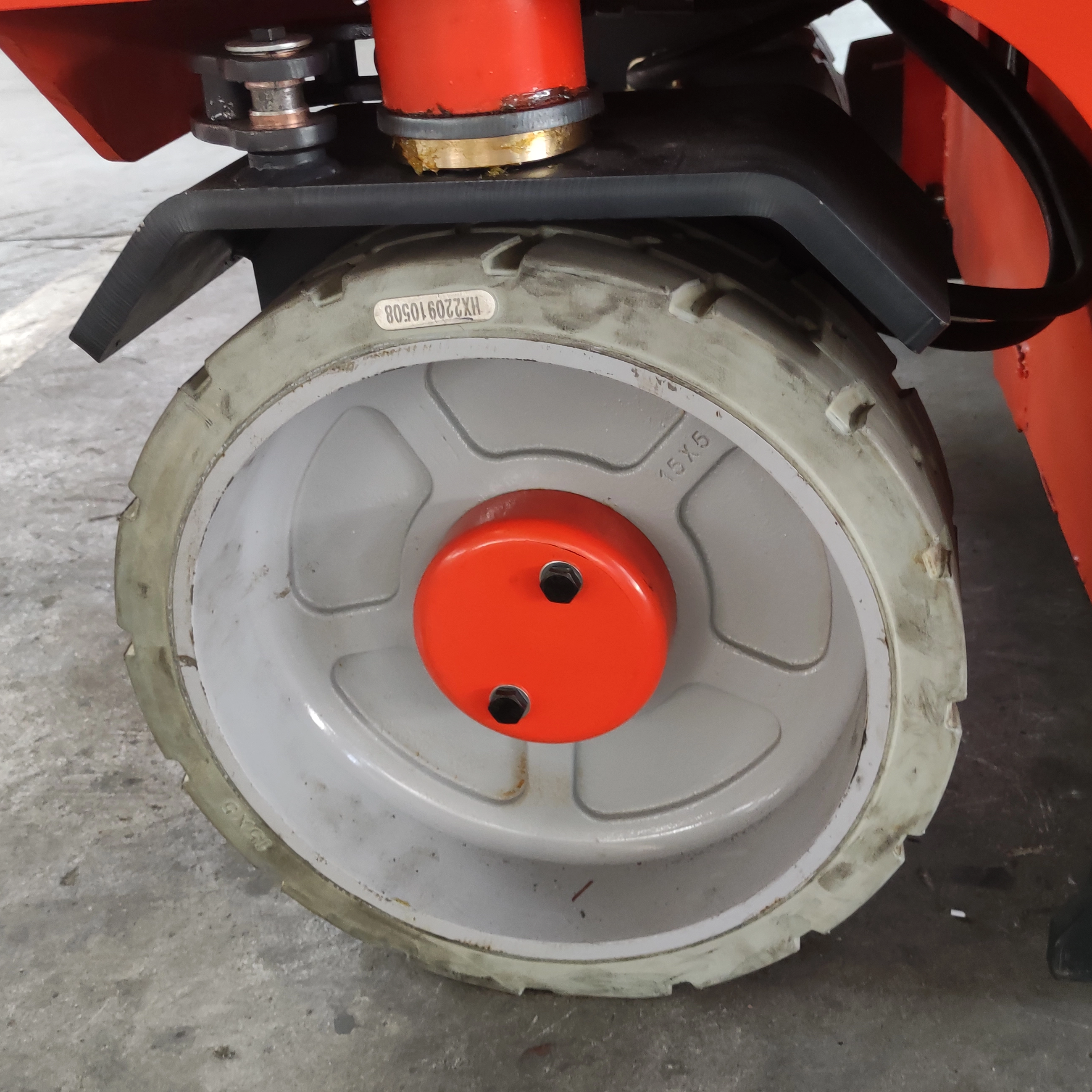

Rubber tyres
4
orange+black
500mm
Standing and driving style

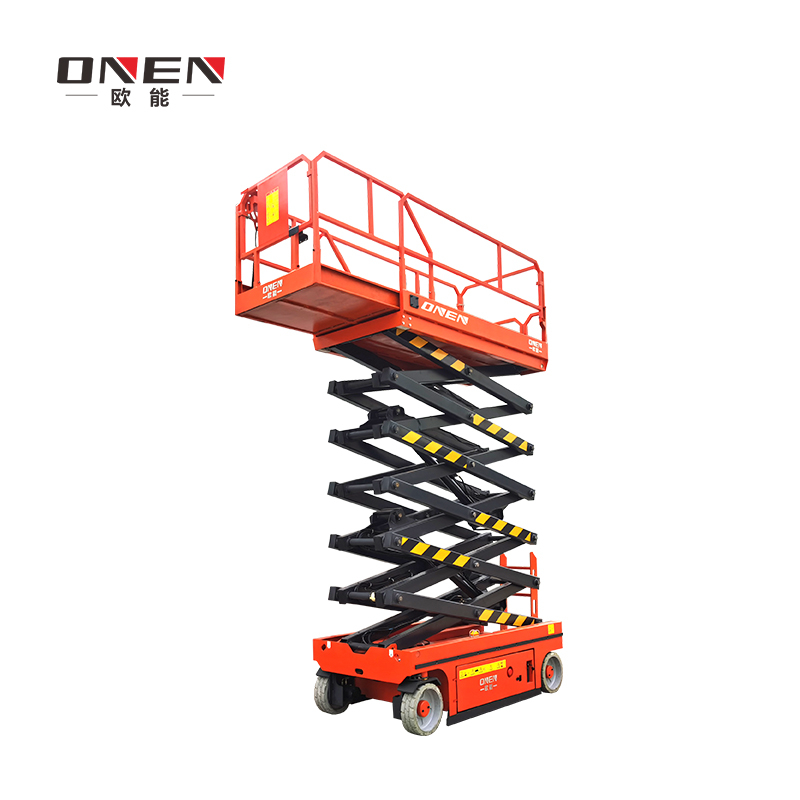

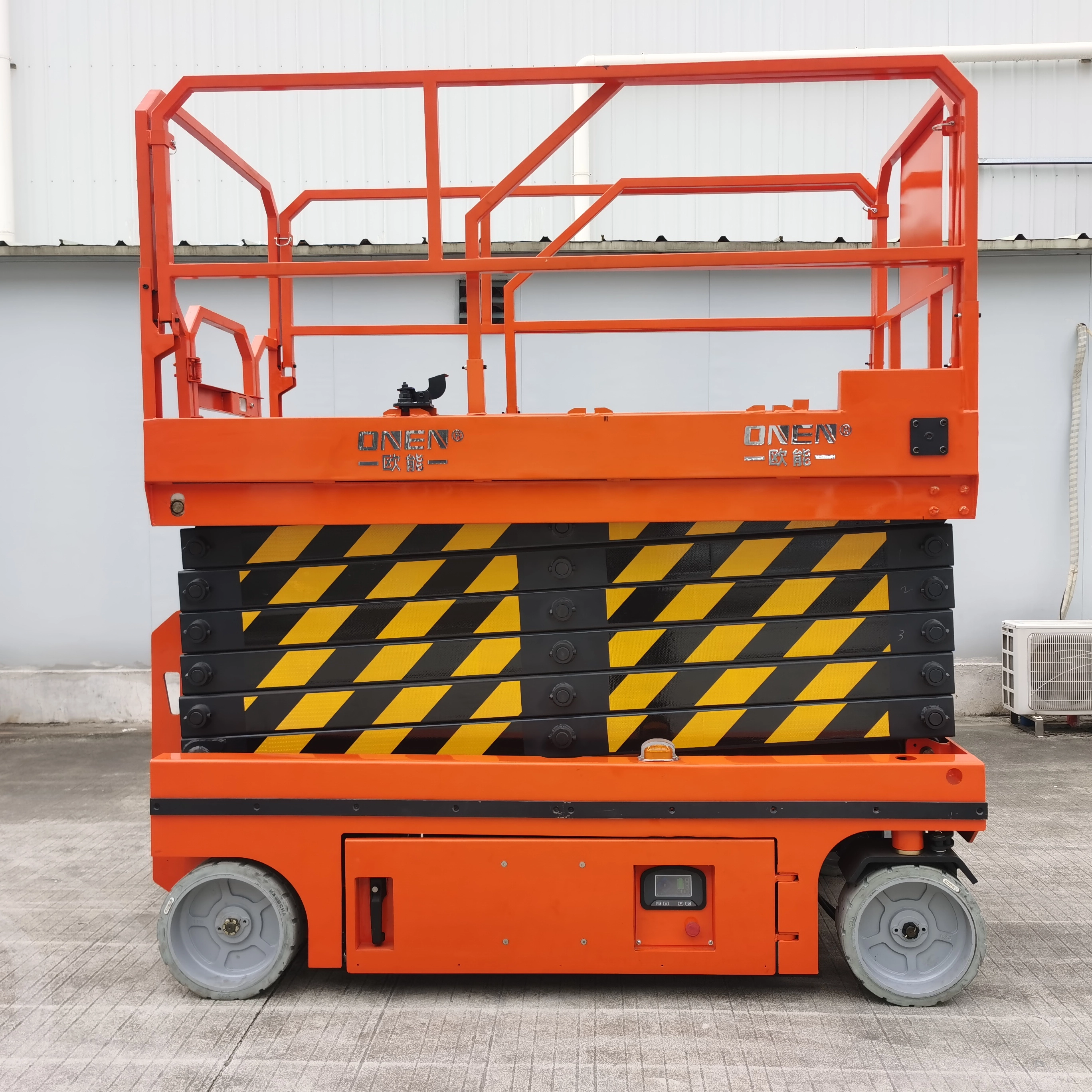

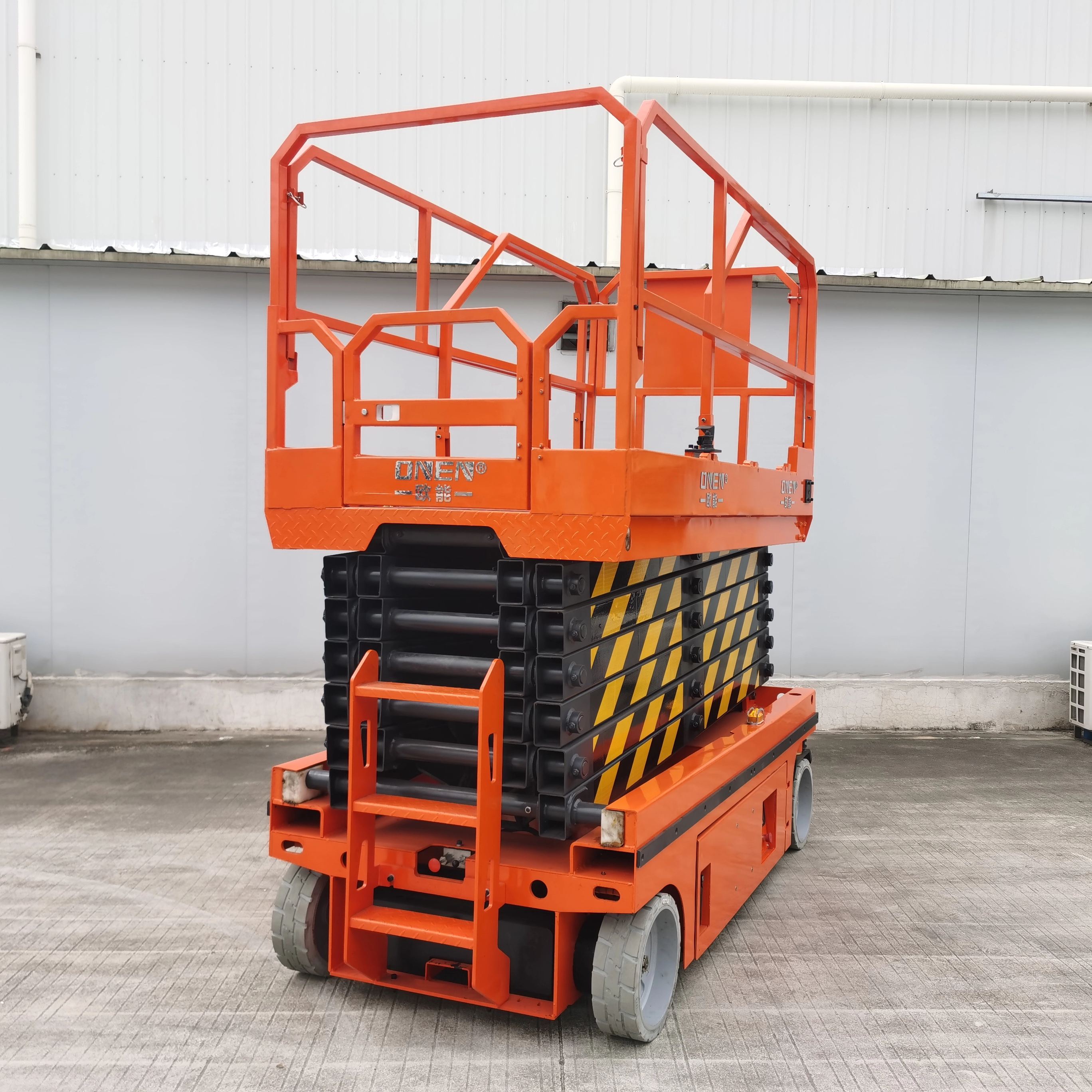

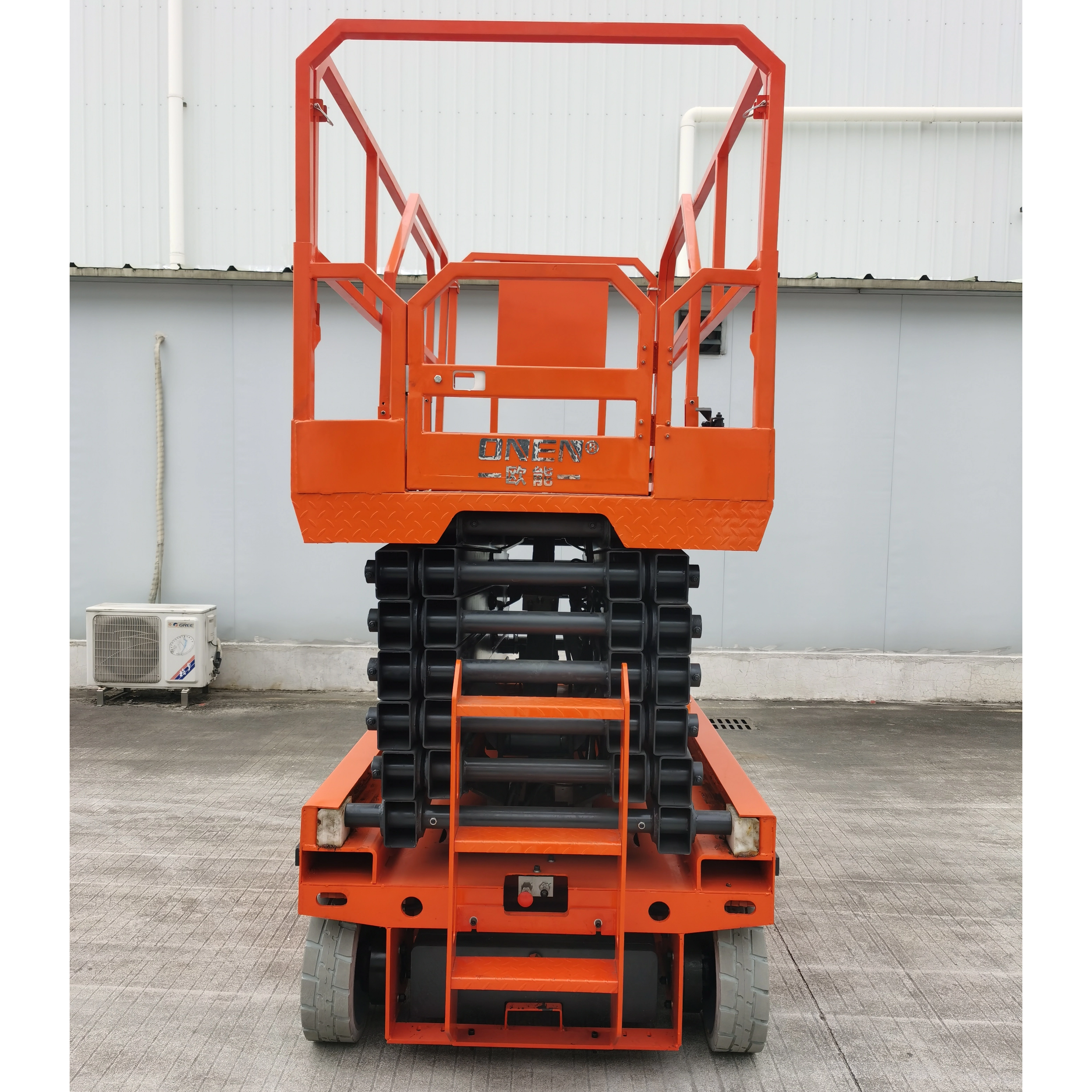

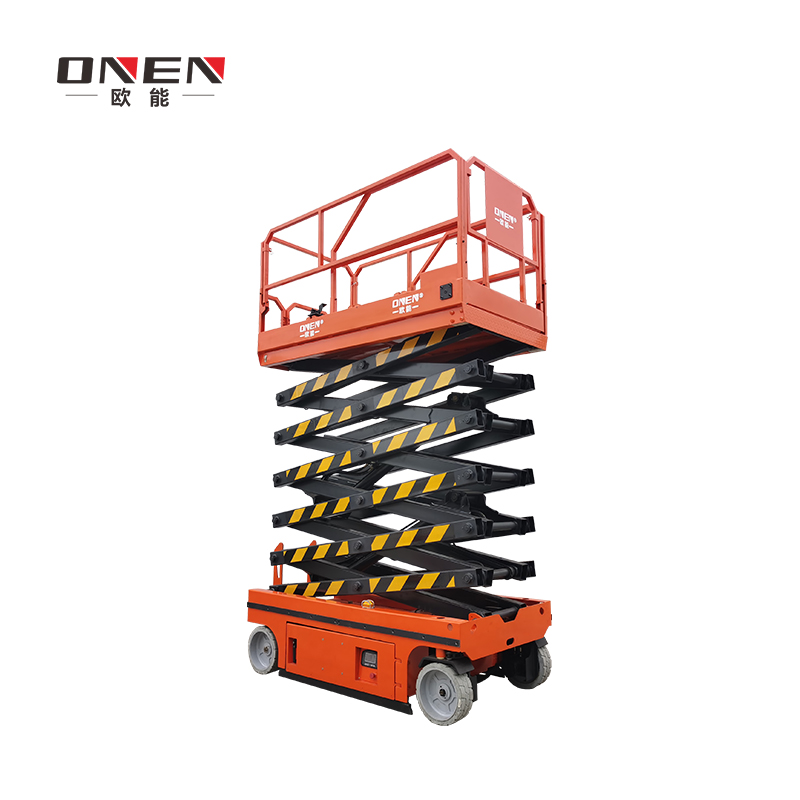

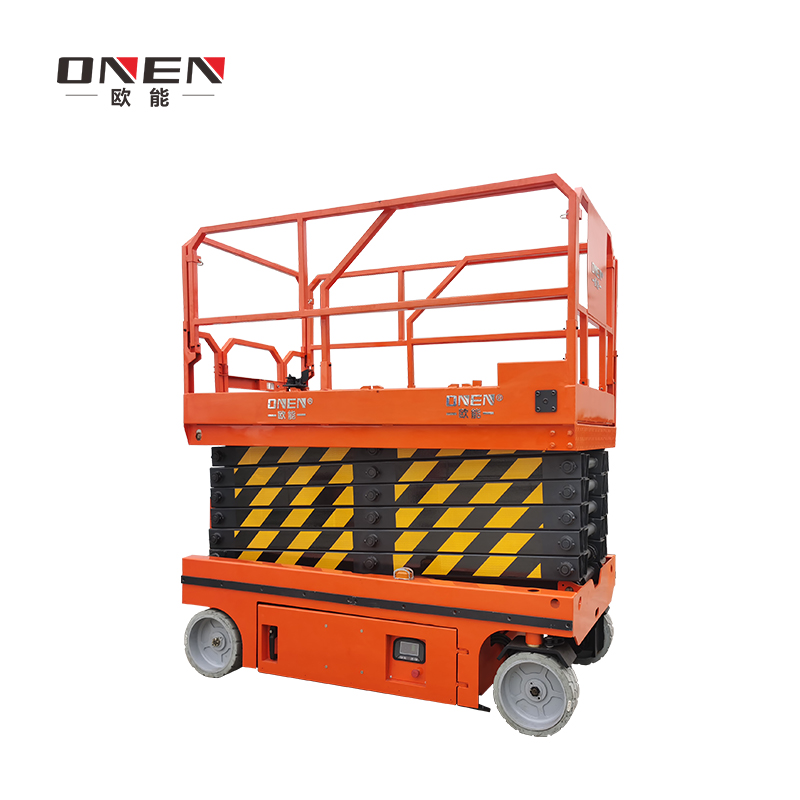

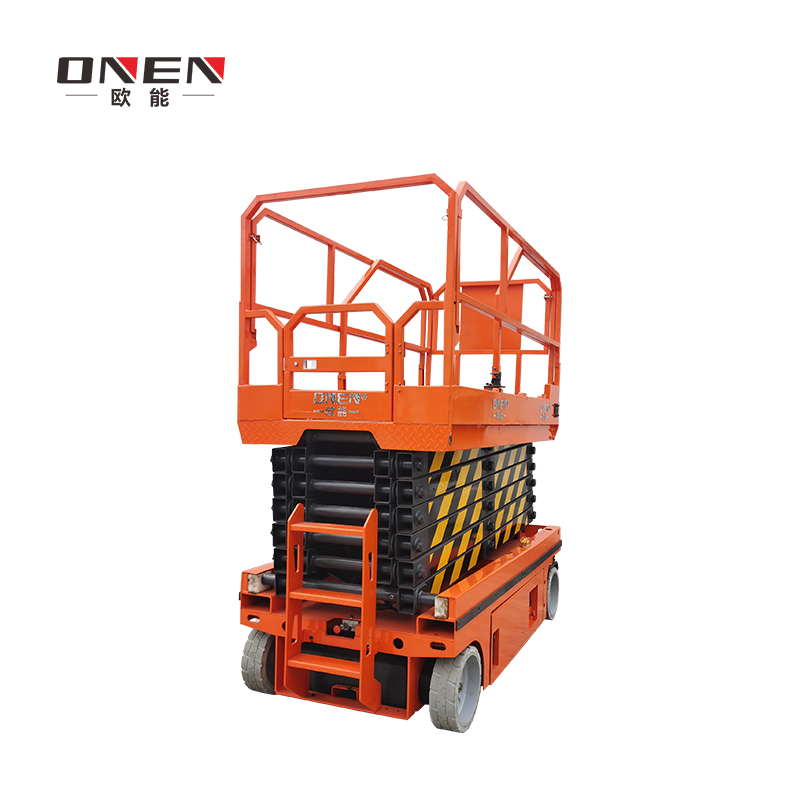

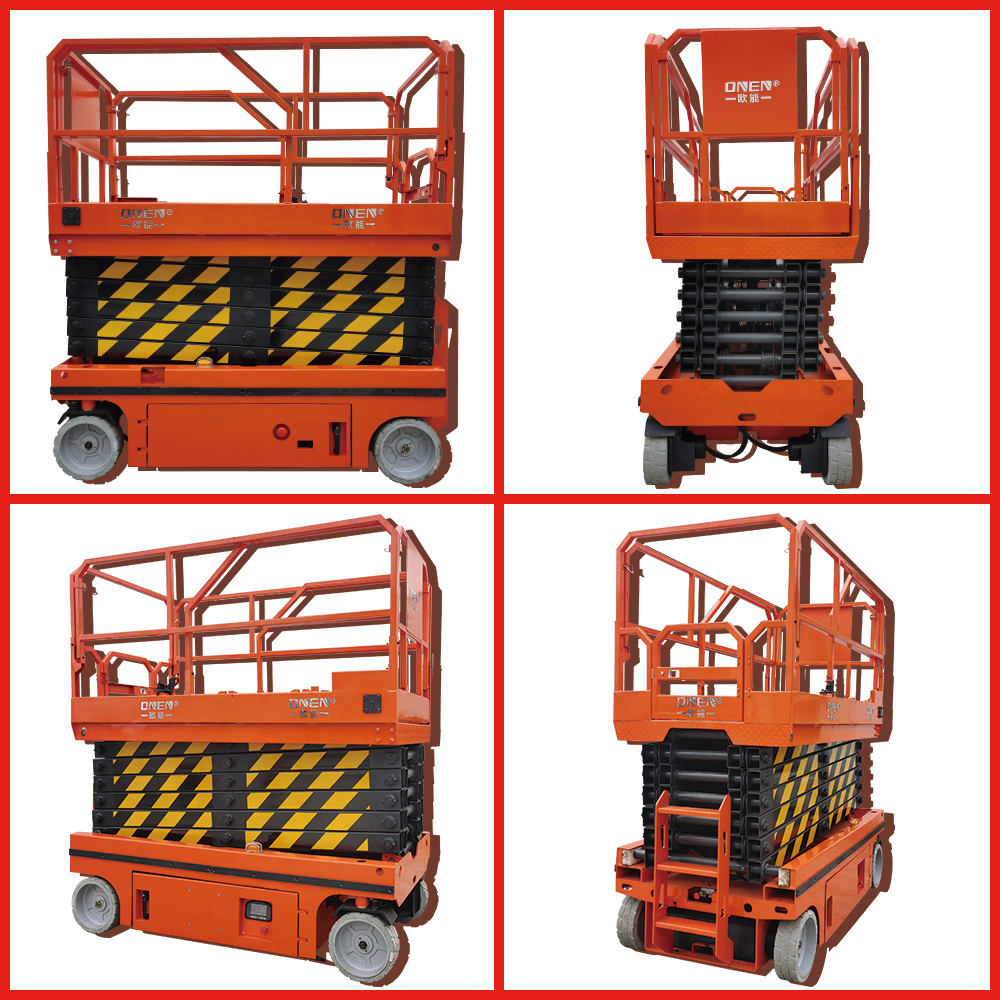

Electric Scissor Lift
AC motor
Electric
6/8/10/12M
completely new
1 year or 1000 hours
provided
Surface painting
support
ON
ONEN
Italian brand
CE/RoHS/SGS
Strong power AC motor, hydraulic driving system, more stable and smoothy for driving and lifting;
Extendable platform, spacious and safe working space;
Pothole protection device, anti-collision protection, falling alarm and other safety systems, safe and reliable;

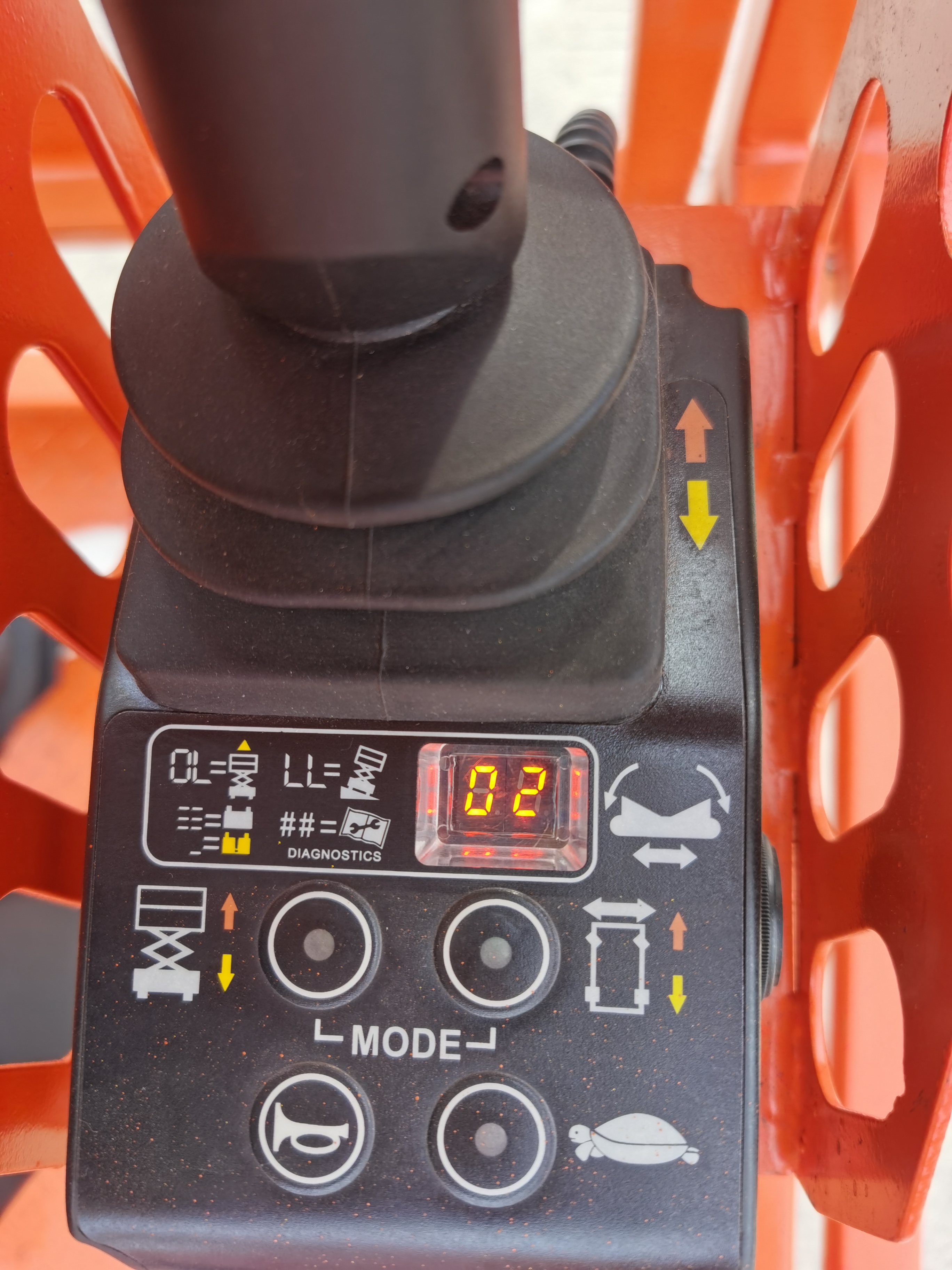

The integrated high-definition LCD instrument integrates functions such as lifting operation buttons, mode selection, power display, and working time

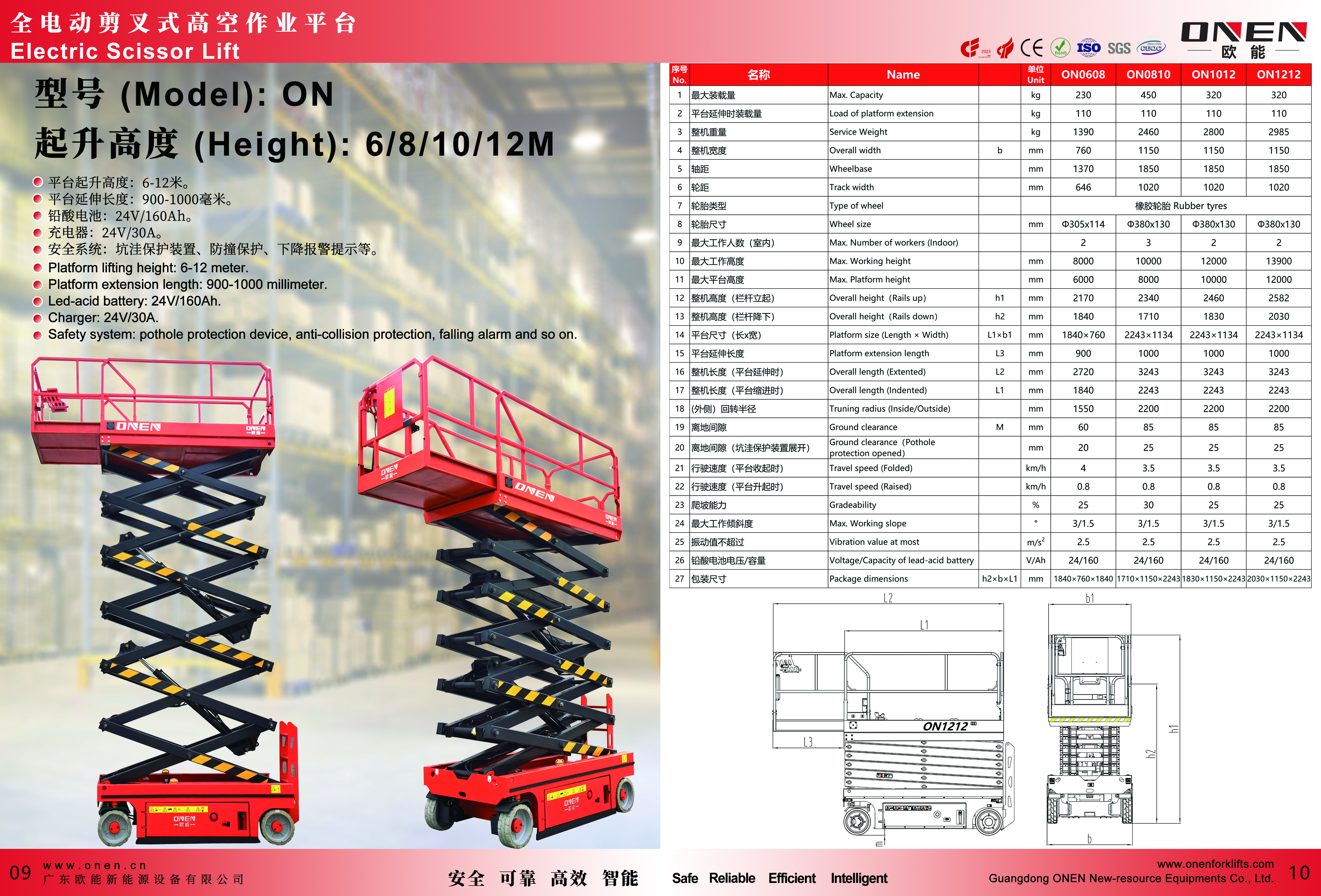

参数表
| 序号 No. | 名称 | Name | 单位 Unit | ON0608 | ON0810 | ON1012 | ON1212 | |
| 1 | 最大装载量 | Max. Capacity | kg | 230 | 450 | 320 | 320 | |
| 2 | 平台延伸时装载量 | Load of platform extension | kg | 110 | 110 | 110 | 110 | |
| 3 | 整机重量 | Service Weight | kg | 1390 | 2460 | 2800 | 2985 | |
| 4 | 整机宽度 | Overall width | b | mm | 760 | 1150 | 1150 | 1150 |
| 5 | 轴距 | Wheelbase | mm | 1370 | 1850 | 1850 | 1850 | |
| 6 | 轮距 | Track width | mm | 646 | 1020 | 1020 | 1020 | |
| 7 | 轮胎类型 | Type of wheel | 橡胶轮胎 Rubber tyres | |||||
| 8 | 轮胎尺寸 | Wheel size | mm | Φ305x114 | Φ380x130 | Φ380x130 | Φ380x130 | |
| 9 | 最大工作人数（室内） | Max. Number of workers (Indoor) | 2 | 3 | 2 | 2 | ||
| 10 | 最大工作高度 | Max. Working height | mm | 8000 | 10000 | 12000 | 13900 | |
| 11 | 最大平台高度 | Max. Platform height | mm | 6000 | 8000 | 10000 | 12000 | |
| 12 | 整机高度（栏杆立起） | Overall height（Rails up） | h1 | mm | 2170 | 2340 | 2460 | 2582 |
| 13 | 整机高度（栏杆降下） | Overall height（Rails down） | h2 | mm | 1840 | 1710 | 1830 | 2030 |
| 14 | 平台尺寸（长x宽） | Platform size (Length × Width) | L1×b1 | mm | 1840×760 | 2243×1134 | 2243×1134 | 2243×1134 |
| 15 | 平台延伸长度 | Platform extension length | L3 | mm | 900 | 1000 | 1000 | 1000 |
| 16 | 整机长度（平台延伸时） | Overall length (Extented) | L2 | mm | 2720 | 3243 | 3243 | 3243 |
| 17 | 整机长度（平台缩进时） | Overall length (Indented) | L1 | mm | 1840 | 2243 | 2243 | 2243 |
| 18 | (外侧）回转半径 | Truning radius (Inside/Outside) | mm | 1550 | 2200 | 2200 | 2200 | |
| 19 | 离地间隙 | Ground clearance | M | mm | 60 | 85 | 85 | 85 |
| 20 | 离地间隙（坑洼保护装置展开） | Ground clearance（Pothole protection opened） | mm | 20 | 25 | 25 | 25 | |
| 21 | 行驶速度（平台收起时） | Travel speed (Folded) | km/h | 4 | 3.5 | 3.5 | 3.5 | |
| 22 | 行驶速度（平台升起时） | Travel speed (Raised) | km/h | 0.8 | 0.8 | 0.8 | 0.8 | |
| 23 | 爬坡能力 | Gradeability | % | 25 | 30 | 25 | 25 | |
| 24 | 最大工作倾斜度 | Max. Working slope | ° | 3/1.5 | 3/1.5 | 3/1.5 | 3/1.5 | |
| 25 | 振动值不超过 | Vibration value at most | m/s2 | 2.5 | 2.5 | 2.5 | 2.5 | |
| 26 | 铅酸电池电压/容量 | Voltage/Capacity of lead-acid battery | V/Ah | 24/160 | 24/160 | 24/160 | 24/160 | |
| 27 | 包装尺寸 | Package dimensions | h2×b×L1 | mm | 1840×760×1840 | 1710×1150×2243 | 1830×1150×2243 | 2030×1150×2243 |
Electric Scissor Lift
Electric Lift Elevator
Extendable Platform
Strong power AC motor, hydraulic driving system, more stable and smoothy for driving and lifting;
Extendable platform, spacious and safe working space;
Pothole protection device, anti-collision protection, falling alarm and other safety systems, safe and reliable;
The integrated high-definition LCD instrument integrates functions such as lifting operation buttons, mode selection, power display, and working time
