CQD-B-2070-Q Electric Reach Truck

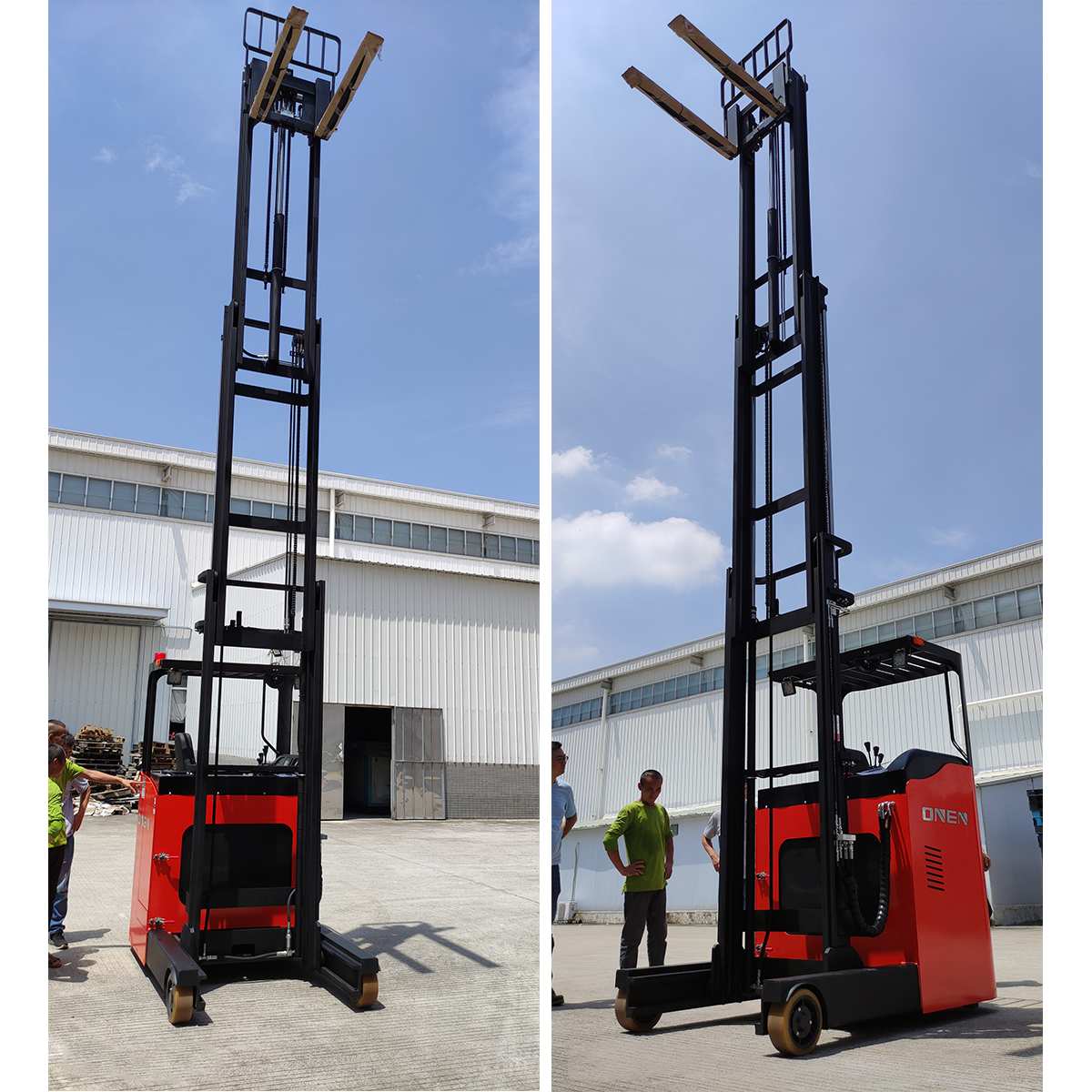

ONEN CQD-B ride-on reach stacker, with a load capacity of 2 tons and a maximum lifting height of up to 7 meters, is suitable for high-level warehouse operations.
The vehicle features a wide-bodied stable chassis and a high-strength portal frame, ensuring stability during high-altitude operations. Equipped with electronic steering and a multi-valve hydraulic system, it offers lightweight and precise control, and also boasts a forward movement function, allowing for flexible operations even in narrow passageways. This model supports both lithium-ion and lead-acid batteries, offering energy efficiency and environmental friendliness while significantly enhancing the utilization rate of storage space.
Availability:
  • CQD-B-2070-Q

  • ONEN

  • Electric Reach Truck

  • Electric

  • 2000kg

  • Seated

  • 7000mm

  • Lead-acid / Lithium

  • Single Sided Tray, Double Sided Tray

  • CE/RoHS/SGS

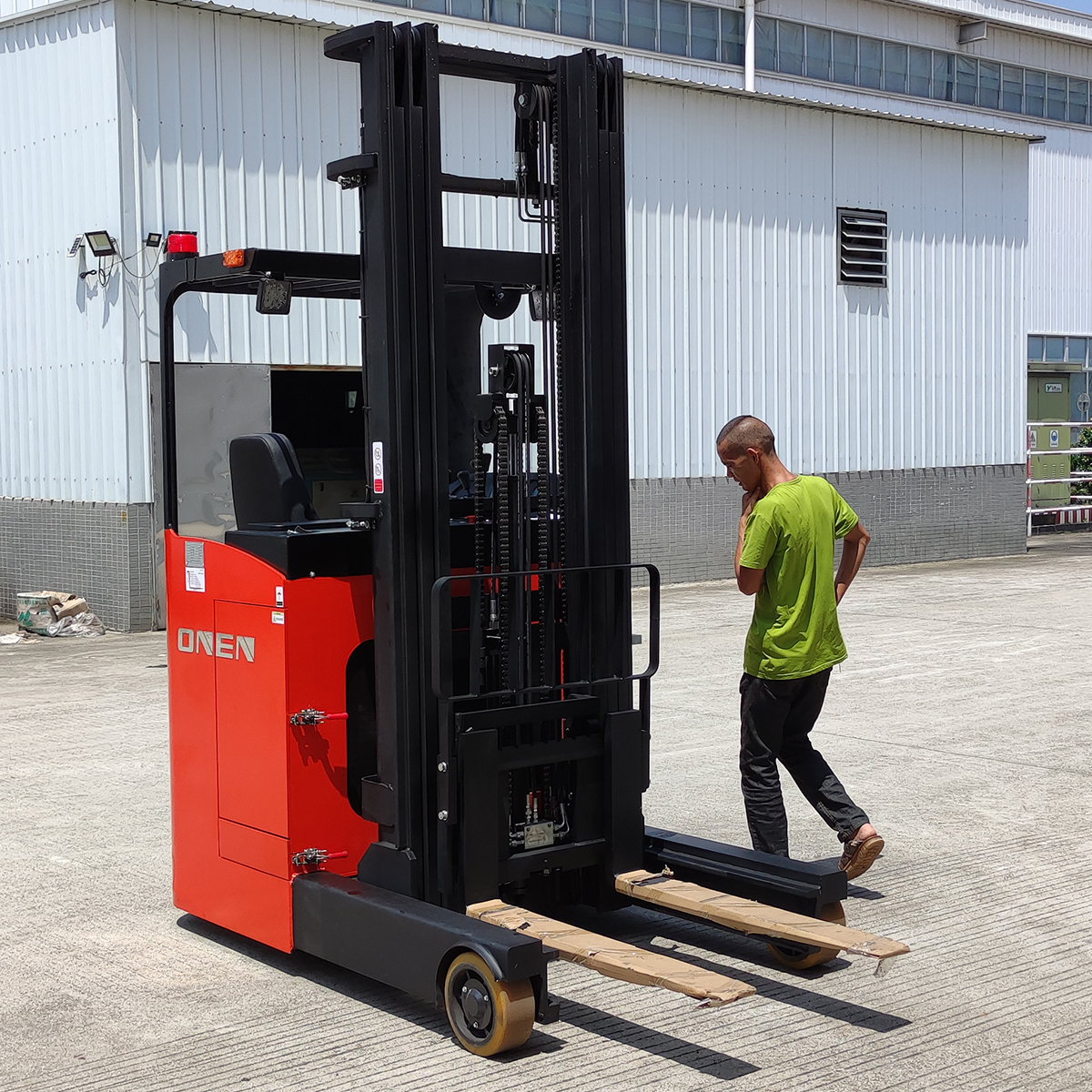

ONEN 2-ton reach truck

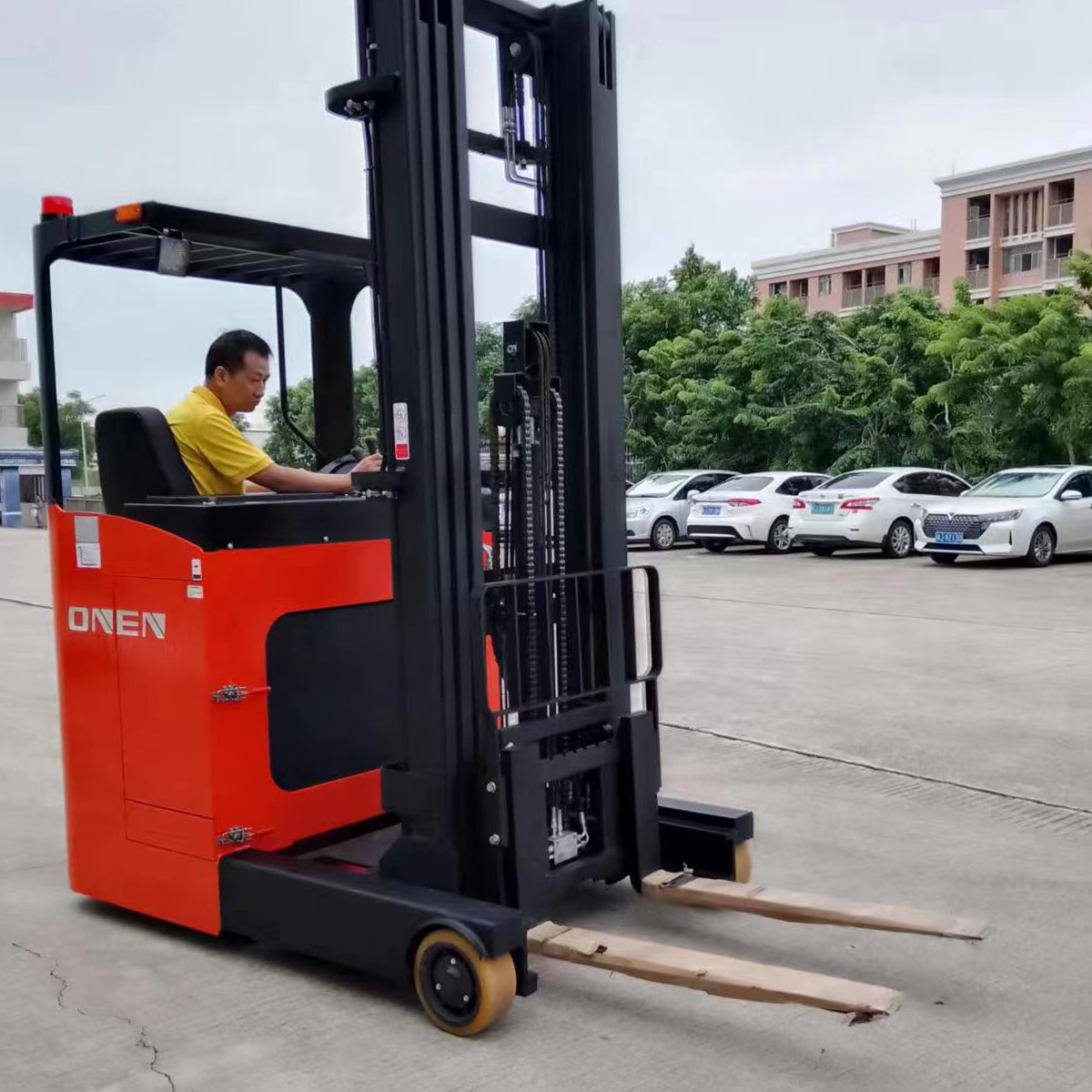

ONEN CQD-B stacking truck (with a load capacity of 2 tons and a lifting height of 7 meters) is suitable for use in high-level automated warehouses, large parts storage facilities, and building material workshops. Its reach-forward design allows for storage and retrieval in narrow aisles (within 2.9 meters), while the 7-meter lifting height effectively utilizes upper space.

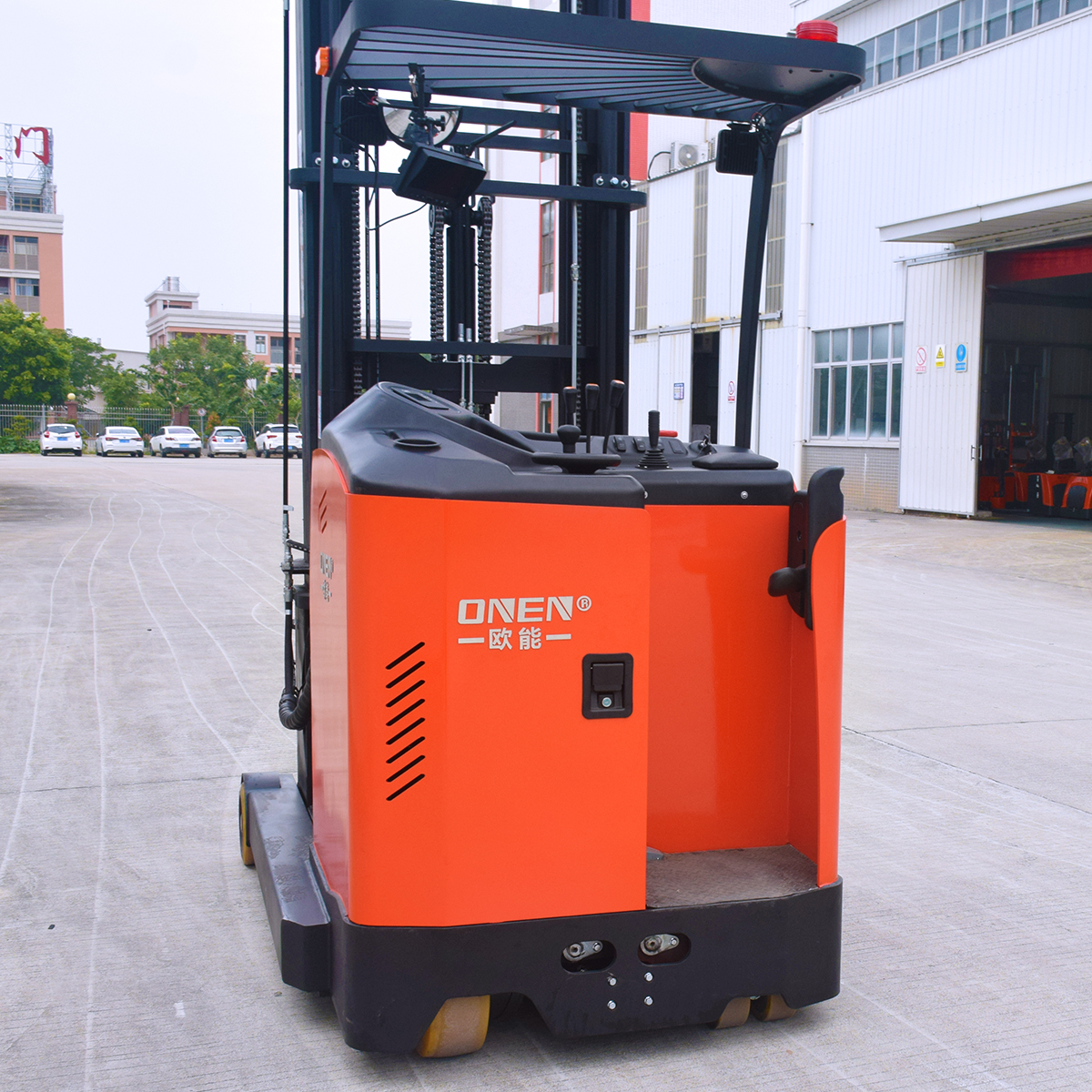

2-ton stacking truck with a lifting height of 7 meters

This truck is particularly suitable for high-level stacking and retrieval of long materials (such as pipes and profiles), solving the problem that traditional forklifts cannot simultaneously handle narrow aisle passage and high-altitude operations. It is widely used in high-level rack storage and line-side distribution.





1

Model

CQD-B

2

Configuration No.

2070-Q

3

Power type

Electric

4

Steering type

Electric steering

5

Operation type

Seated

6

Load capacity

kg

2000

7

Load center distance

mm

500

8

Reach Distance

mm

505

9

Wheels type

PU

10

Driving wheel size

mm

Ф382×142

11

Bearing wheel size

mm

Ф267×114

12

Overall Length (With Fork)

mm

2477

13

Overall Width

mm

1270

14

Mast lowered height

mm

3210

15

Lift height

mm

7000

16

Extended mast height

mm

7965

17

Fork dimensions

mm

35/100/1070

18

Turning radius

mm

1800

19

Travel speed (Laden/Unladen)

km/h

6.8/7.8

20

Lift speed (Laden/Unladen)

mm/s

120/240

21

Lowering speed (Laden/Unladen)

mm/s

315/260

22

Gradeability (Laden/Unladen)

%

≤10

23

Driving motor

kw

6.5

24

Lifting motor

kw

4.5

25

Voltage/Capacity of lead-acid battery

V/Ah

48/300

26

Lead-acid battery charger

V/A

24/40

27

Voltage/Capacity of lithium battery (Optional)

V/Ah

48/280

28

Lithium battery charger

V/A

24/50

29

Sound level at driver's ear

dB(A)

<70

Mast Table

Lift height

Mast lowered height

Free lift

Extended mast height

h3(mm)

h1(mm)

h2(mm)

h4(mm)

3000

2100

3577.5

3500

2350

4077.5

4000

2600

4577.5

4500

2100

1500

5465

5000

2280

1660

5965

5500

2450

1820

6465

6000

2620

1980

6965

6500

2790

2140

7465

7000

3210

2320

7965
