CQD-B-2050-Q Electric Reach Truck

ONEN CQD-B is a sit-down reach stacker designed specifically for high-level warehouse operations. With a rated load capacity of 2 tons and a maximum lifting height of up to 5 meters, this model meets the needs of high-level shelf stacking. The vehicle features a compact body design, allowing for flexible operations in narrow passageways and effectively enhancing warehouse space utilization. Equipped with a powerful motor and a high-strength mast, it ensures smooth lifting and safe operation under full load. Additionally, this vehicle is energy-saving, environmentally friendly, low-noise, and comfortable to operate, making it suitable for long-duration continuous operations and an ideal choice for efficient warehouse logistics.
Availability:
  • CQD-B-2050-Q

  • ONEN

  • Electric Reach Truck

  • Electric

  • 2000kg

  • Seated

  • 5000mm

  • Lead-acid / Lithium

  • Single Sided Tray, Double Sided Tray

  • CE/RoHS/SGS

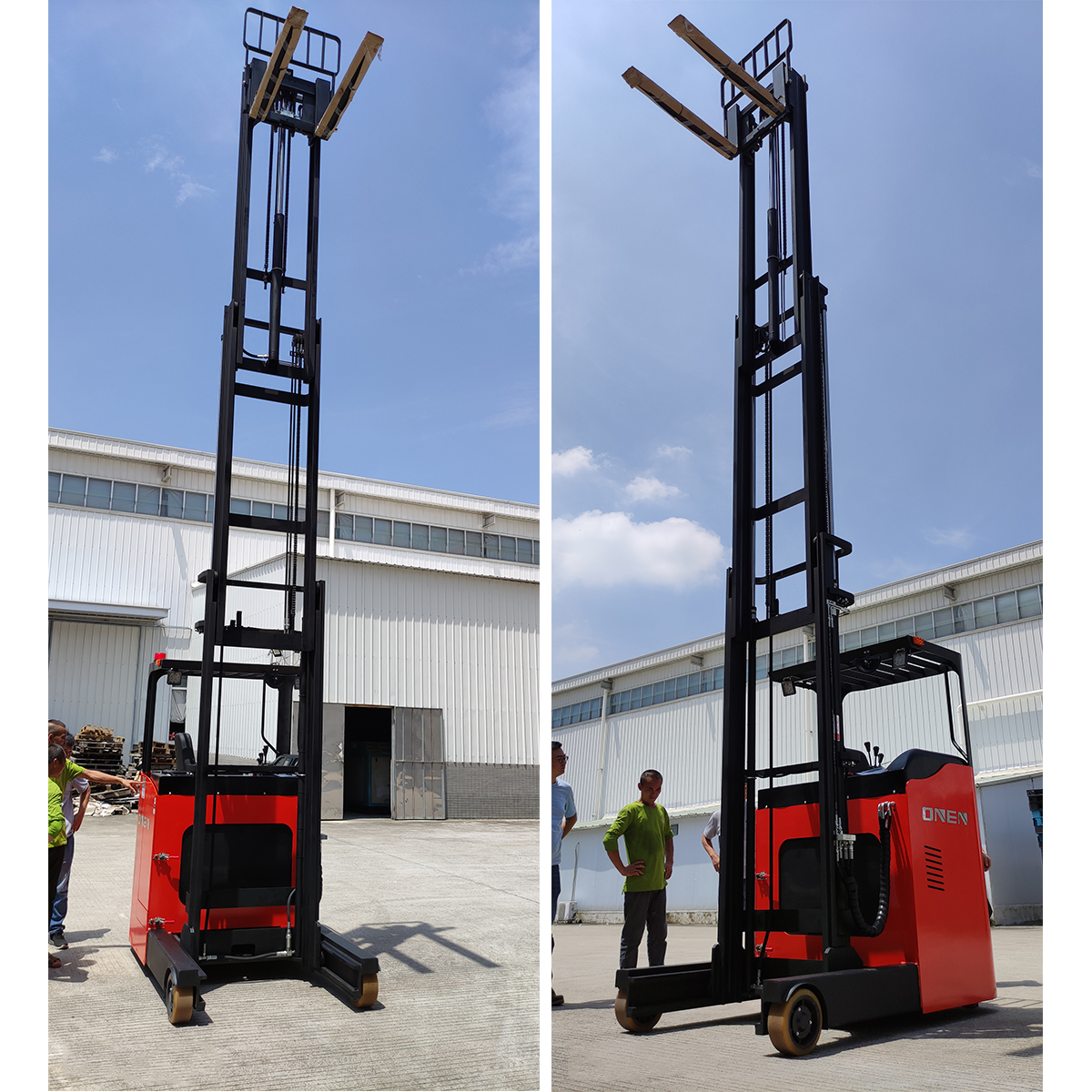

ONEN CQD-B 2-ton forklift

ONEN CQD-B stacking vehicle (version with a load capacity of 2 tons and a lifting height of 5 meters) is primarily suitable for dense storage scenarios in high-level automated warehouses, factory floors, and narrow passageways.

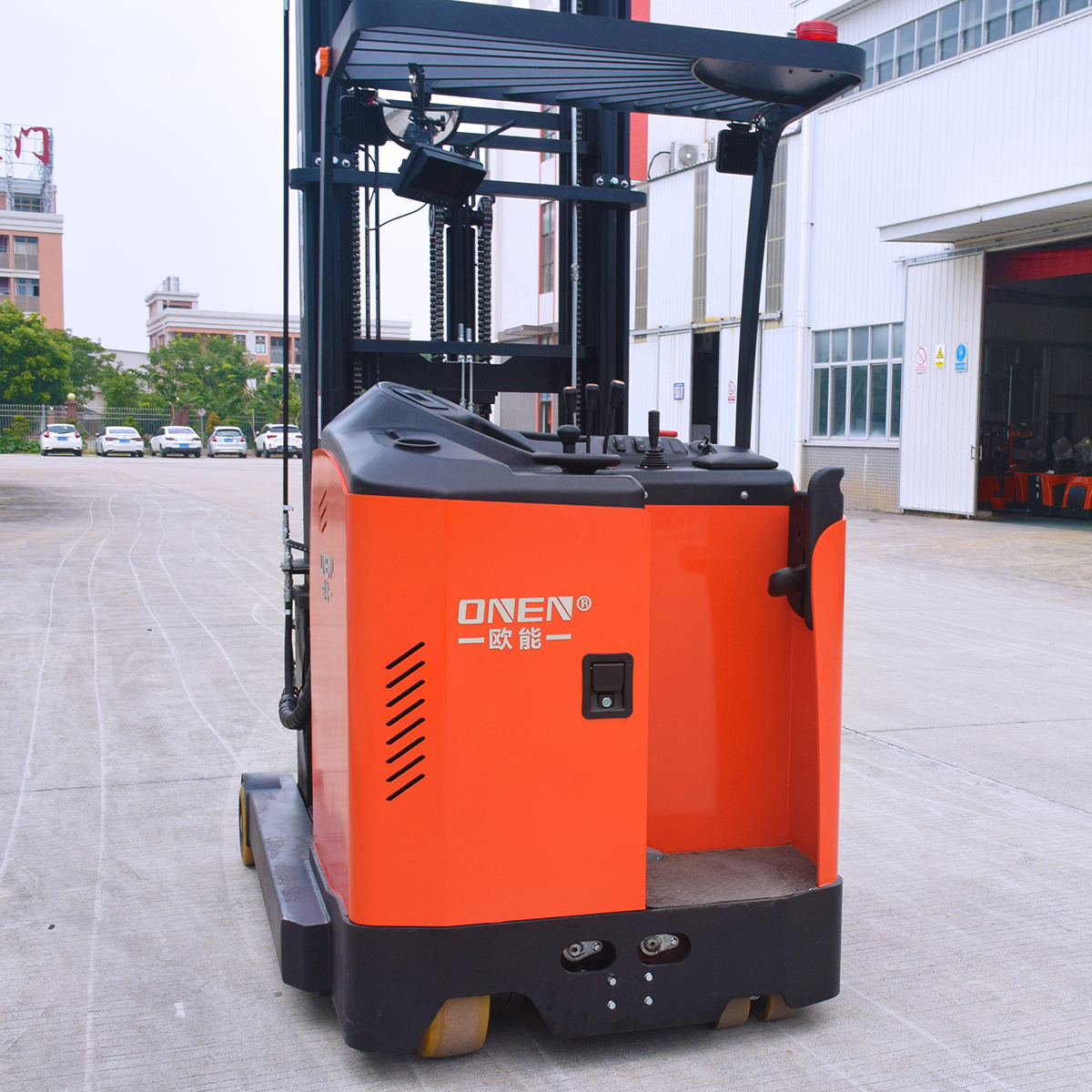

5-meter sit-down stacker

Its forward-moving design allows the vehicle to operate with only the mast moving forward while the body remains stationary, significantly reducing the turning radius. This makes it ideal for high-level stacking and picking within a space-limited warehouse, with distances up to 5 meters. The vehicle is electrically driven, producing low noise and zero emissions, meeting environmental requirements while significantly enhancing the efficiency of storing and retrieving heavy goods on high racks.


1

Model

CQD-B

2

Configuration No.

2050-Q

3

Power type

Electric

4

Steering type

Electric steering

5

Operation type

Seated

6

Load capacity

kg

2000

7

Load center distance

mm

500

8

Reach Distance

mm

505

9

Wheels type

PU

10

Driving wheel size

mm

Ф382×142

11

Bearing wheel size

mm

Ф267×114

12

Overall Length (With Fork)

mm

2477

13

Overall Width

mm

1270

14

Mast lowered height

mm

2280

15

Lift height

mm

5000

16

Extended mast height

mm

5965

17

Fork dimensions

mm

35/100/1070

18

Turning radius

mm

1800

19

Travel speed (Laden/Unladen)

km/h

6.8/7.8

20

Lift speed (Laden/Unladen)

mm/s

120/240

21

Lowering speed (Laden/Unladen)

mm/s

315/260

22

Gradeability (Laden/Unladen)

%

≤10

23

Driving motor

kw

6.5

24

Lifting motor

kw

4.5

25

Voltage/Capacity of lead-acid battery

V/Ah

48/300

26

Lead-acid battery charger

V/A

24/40

27

Voltage/Capacity of lithium battery (Optional)

V/Ah

48/280

28

Lithium battery charger

V/A

24/50

29

Sound level at driver's ear

dB(A)

<70

Mast Table

Lift height

Mast lowered height

Free lift

Extended mast height

h3(mm)

h1(mm)

h2(mm)

h4(mm)

3000

2100

3577.5

3500

2350

4077.5

4000

2600

4577.5

4500

2100

1500

5465

5000

2280

1660

5965

5500

2450

1820

6465

6000

2620

1980

6965

6500

2790

2140

7465

7000

3210

2320

7965
