CQD-B-2055-Q
ONEN
Electric Reach Truck
Electric
2000kg
Seated
5500mm
Lead-acid / Lithium
Single Sided Tray, Double Sided Tray
CE/RoHS/SGS

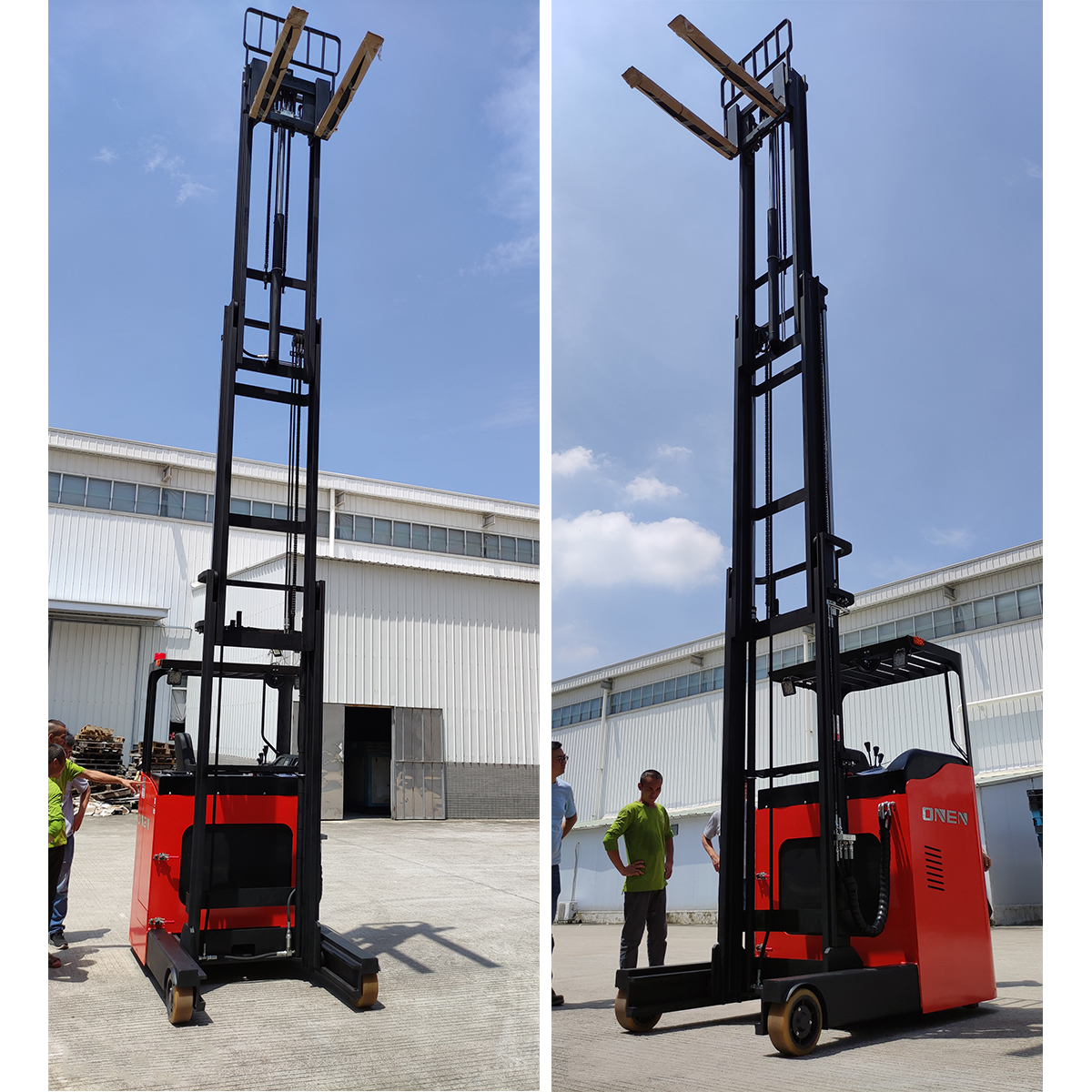

The 2-ton/5.5-meter ONEN CQD-B is highly suitable for high-level stacking operations in high-bay warehouses and ordinary flat warehouses. Its 2-ton rated load capacity can easily handle most heavy pallets; the 5.5-meter lifting height allows for storage on high-level racks, significantly enhancing the vertical space utilization of the warehouse.
The vehicle boasts a compact design with a forward-moving function, enabling flexible operations even in narrow passageways of around 2.6 meters. It is highly suitable for logistics centers or manufacturing workshops where space is limited but vertical expansion is necessary. The vehicle-mounted design effectively reduces the labor intensity for drivers during high-altitude operations.
1 | Model | CQD-B | |
2 | Configuration No. | 2055-Q | |
3 | Power type | Electric | |
4 | Steering type | Electric steering | |
5 | Operation type | Seated | |
6 | Load capacity | kg | 2000 |
7 | Load center distance | mm | 500 |
8 | Reach Distance | mm | 505 |
9 | Wheels type | PU | |
10 | Driving wheel size | mm | Ф382×142 |
11 | Bearing wheel size | mm | Ф267×114 |
12 | Overall Length (With Fork) | mm | 2477 |
13 | Overall Width | mm | 1270 |
14 | Mast lowered height | mm | 2450 |
15 | Lift height | mm | 5500 |
16 | Extended mast height | mm | 6465 |
17 | Fork dimensions | mm | 35/100/1070 |
18 | Turning radius | mm | 1800 |
19 | Travel speed (Laden/Unladen) | km/h | 6.8/7.8 |
20 | Lift speed (Laden/Unladen) | mm/s | 120/240 |
21 | Lowering speed (Laden/Unladen) | mm/s | 315/260 |
22 | Gradeability (Laden/Unladen) | % | ≤10 |
23 | Driving motor | kw | 6.5 |
24 | Lifting motor | kw | 4.5 |
25 | Voltage/Capacity of lead-acid battery | V/Ah | 48/300 |
26 | Lead-acid battery charger | V/A | 24/40 |
27 | Voltage/Capacity of lithium battery (Optional) | V/Ah | 48/280 |
28 | Lithium battery charger | V/A | 24/50 |
29 | Sound level at driver's ear | dB(A) | <70 |
Mast Table | |||
Lift height | Mast lowered height | Free lift | Extended mast height |
h3(mm) | h1(mm) | h2(mm) | h4(mm) |
3000 | 2100 | ‐ | 3577.5 |
3500 | 2350 | ‐ | 4077.5 |
4000 | 2600 | ‐ | 4577.5 |
4500 | 2100 | 1500 | 5465 |
5000 | 2280 | 1660 | 5965 |
5500 | 2450 | 1820 | 6465 |
6000 | 2620 | 1980 | 6965 |
6500 | 2790 | 2140 | 7465 |
7000 | 3210 | 2320 | 7965 |
