CQD-B-2065-Q Electric Reach Truck

ONEN CQD-B ride-on reach stacker has a load capacity of 2 tons and a maximum lifting height of up to 6.5 meters. The vehicle is designed compactly with a reach-type structure, allowing for flexible operation even in narrow passageways. The mast is sturdy and durable, ensuring stable driving. Equipped with a fully AC drive system, it provides strong power and low maintenance costs. The vehicle supports the option of lithium-ion or lead-acid batteries, featuring energy-saving, environmental protection, low noise, comfortable operation, and is suitable for high-level cargo stacking and loading/unloading in factories, warehouses, and other scenarios.
Availability:
  • CQD-B-2065-Q

  • ONEN

  • Electric Reach Truck

  • Electric

  • 2000kg

  • Seated

  • 6500mm

  • Lead-acid / Lithium

  • Single Sided Tray, Double Sided Tray

  • CE/RoHS/SGS

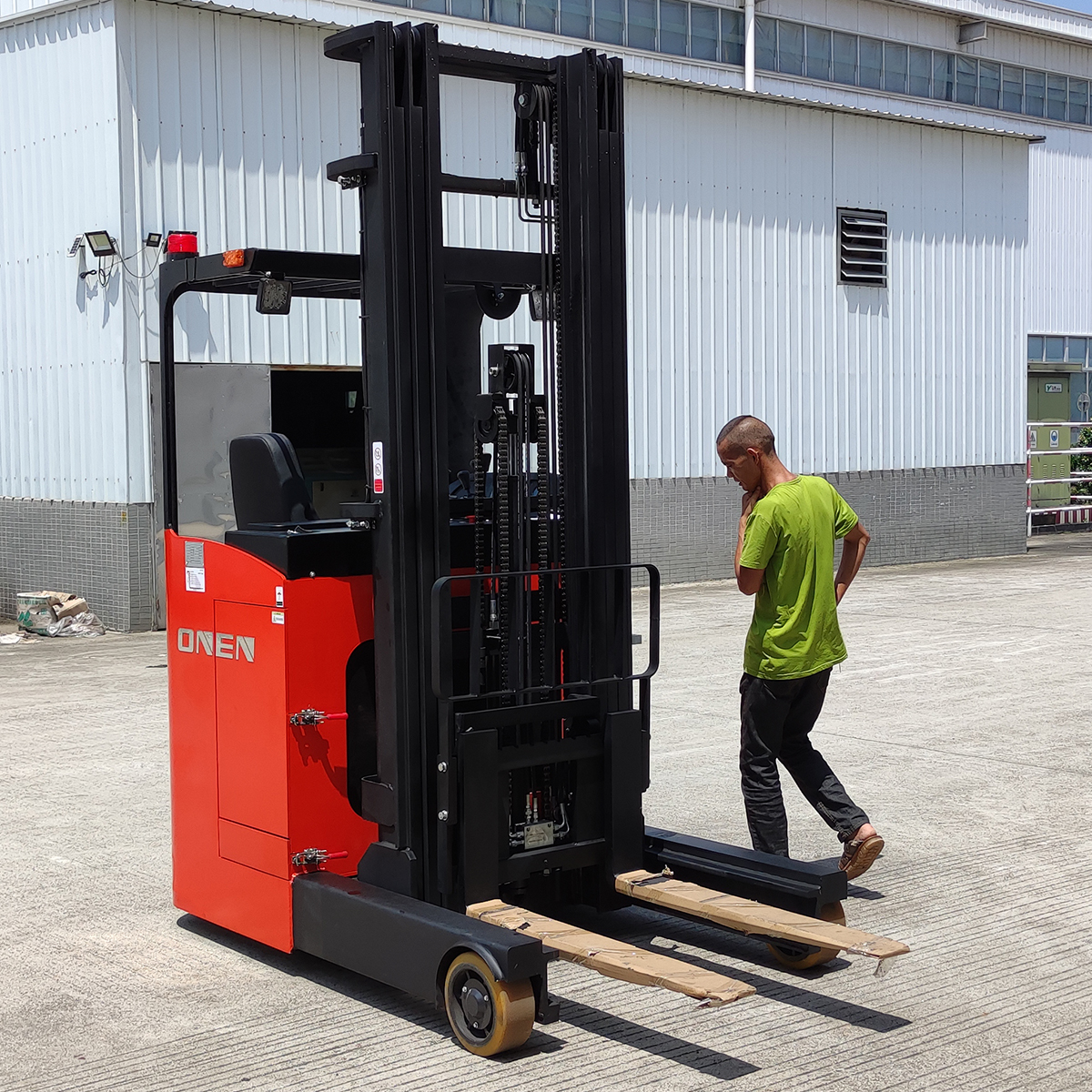

6.5-meter-high stacking truck

ONEN CQD-B stacking truck, with its reach-forward structure, is particularly suitable for high-level rack operations in warehouses and factories with limited space. Its 2-ton rated load capacity can easily handle heavy pallets, containers, or barreled goods.

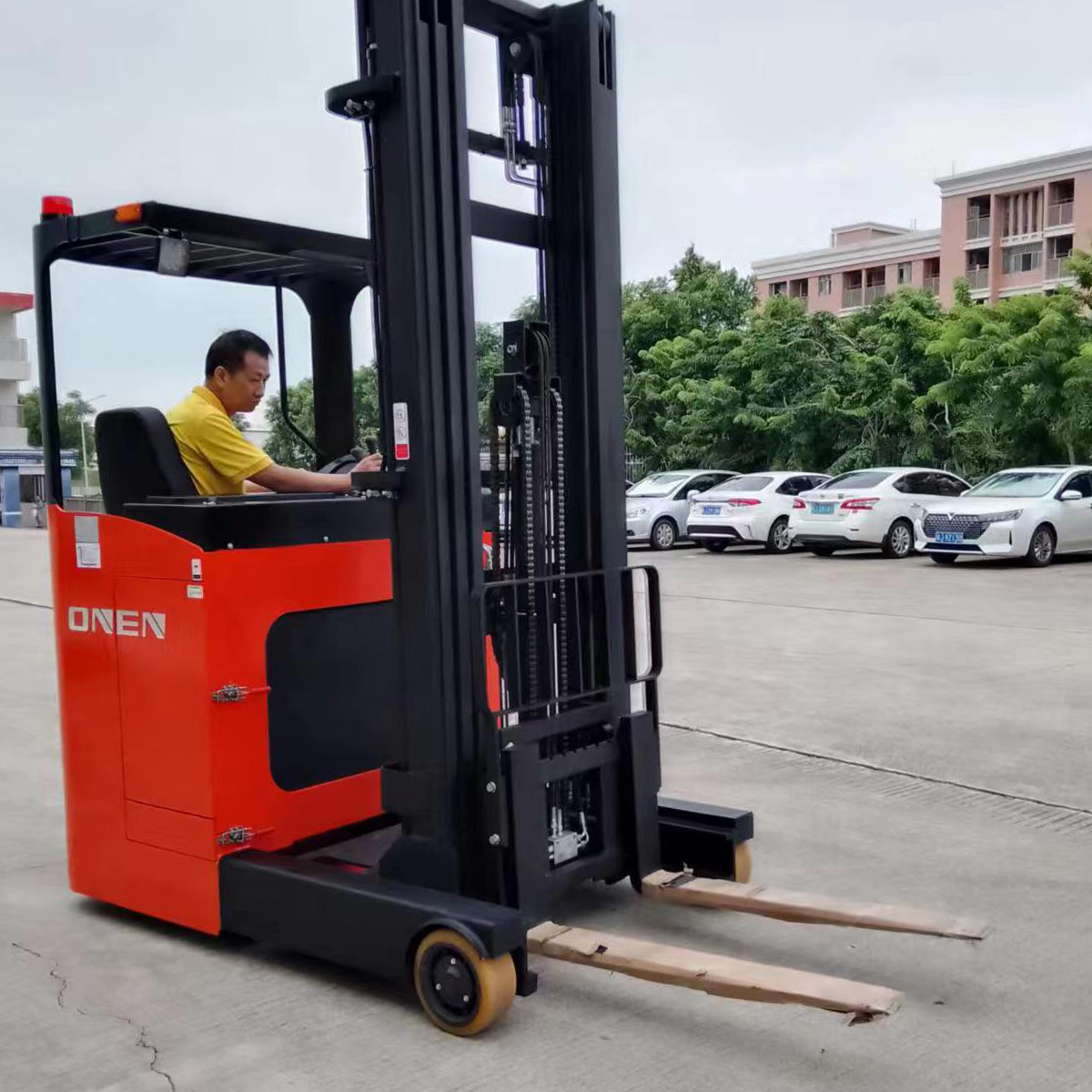

sit-down reach truck

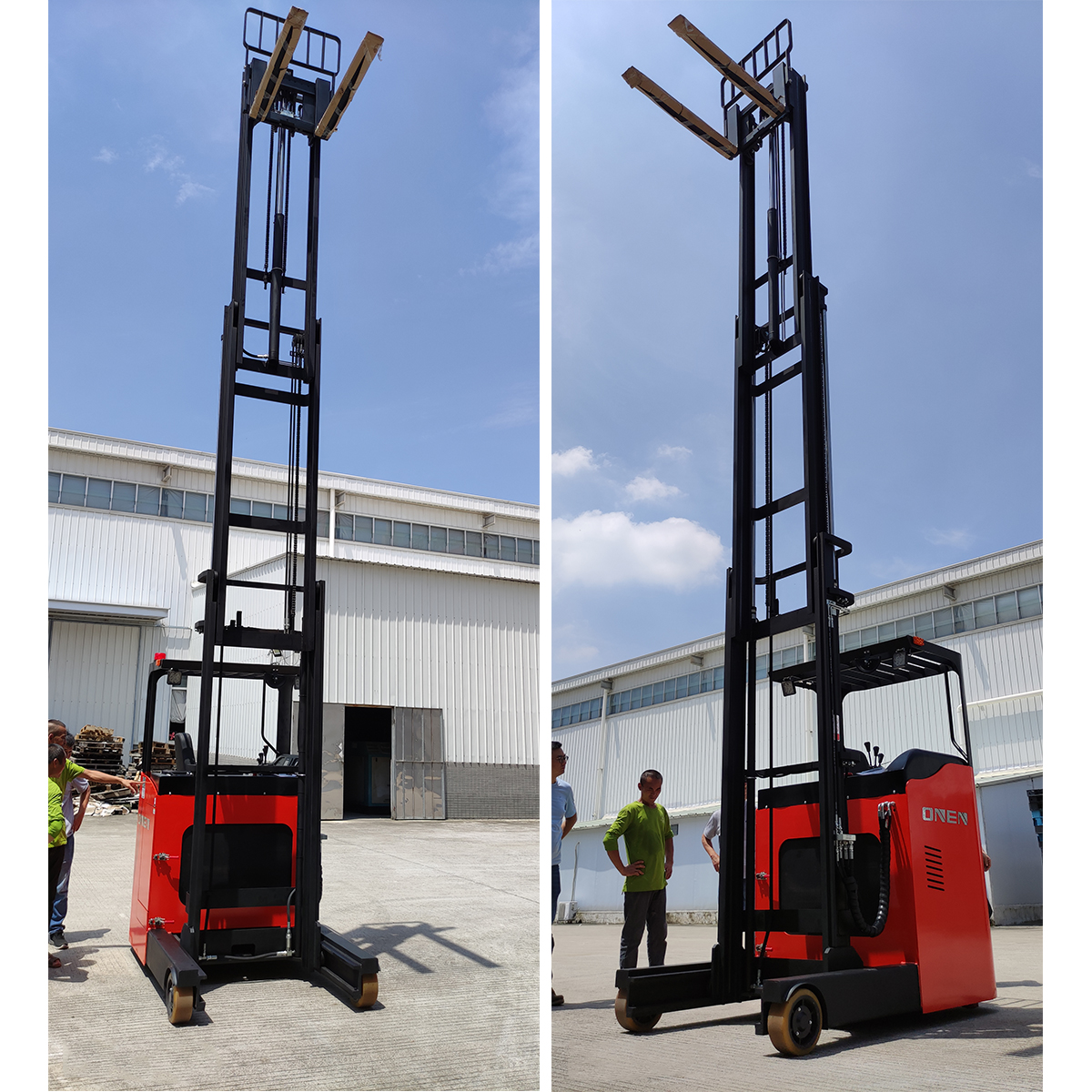

With a lifting height of 6.5 meters, it effectively utilizes high-level rack space, making it ideal for dense storage of heavy goods at high levels and for direct loading and unloading of trucks in loading and unloading areas. The truck is easy to maneuver and can meet the needs of stably stacking heavy goods in narrow aisles.




1

Model

CQD-B

2

Configuration No.

2070-Q

3

Power type

Electric

4

Steering type

Electric steering

5

Operation type

Seated

6

Load capacity

kg

2000

7

Load center distance

mm

500

8

Reach Distance

mm

505

9

Wheels type

PU

10

Driving wheel size

mm

Ф382×142

11

Bearing wheel size

mm

Ф267×114

12

Overall Length (With Fork)

mm

2477

13

Overall Width

mm

1270

14

Mast lowered height

mm

3210

15

Lift height

mm

7000

16

Extended mast height

mm

7965

17

Fork dimensions

mm

35/100/1070

18

Turning radius

mm

1800

19

Travel speed (Laden/Unladen)

km/h

6.8/7.8

20

Lift speed (Laden/Unladen)

mm/s

120/240

21

Lowering speed (Laden/Unladen)

mm/s

315/260

22

Gradeability (Laden/Unladen)

%

≤10

23

Driving motor

kw

6.5

24

Lifting motor

kw

4.5

25

Voltage/Capacity of lead-acid battery

V/Ah

48/300

26

Lead-acid battery charger

V/A

24/40

27

Voltage/Capacity of lithium battery (Optional)

V/Ah

48/280

28

Lithium battery charger

V/A

24/50

29

Sound level at driver's ear

dB(A)

<70

Mast Table

Lift height

Mast lowered height

Free lift

Extended mast height

h3(mm)

h1(mm)

h2(mm)

h4(mm)

3000

2100

3577.5

3500

2350

4077.5

4000

2600

4577.5

4500

2100

1500

5465

5000

2280

1660

5965

5500

2450

1820

6465

6000

2620

1980

6965

6500

2790

2140

7465

7000

3210

2320

7965
