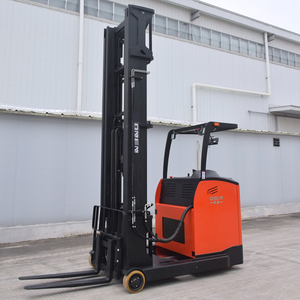

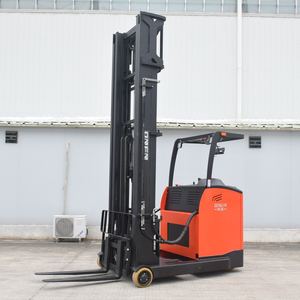

CQD-B-2060-Q Electric Reach Truck

ONEN CQD-B ride-on reach stacker, with a load capacity of 2 tons and a lifting height of up to 6 meters, features a compact body design and a small turning radius, making it ideal for operations in narrow passageways and high-bay racking warehouses. Equipped with a powerful AC drive motor and a hydraulic system with fork forward and tilt functions, it offers stable operation and a wide field of vision. The vehicle is ergonomically designed and can be equipped with lithium batteries, featuring energy-saving, environmental protection, low noise, and low maintenance costs, effectively improving warehouse space utilization and operational efficiency.
Availability:
  • CQD-B-2060-Q

  • ONEN

  • Electric Reach Truck

  • Electric

  • 2000kg

  • Seated

  • 6000mm

  • Lead-acid / Lithium

  • Single Sided Tray, Double Sided Tray

  • CE/RoHS/SGS

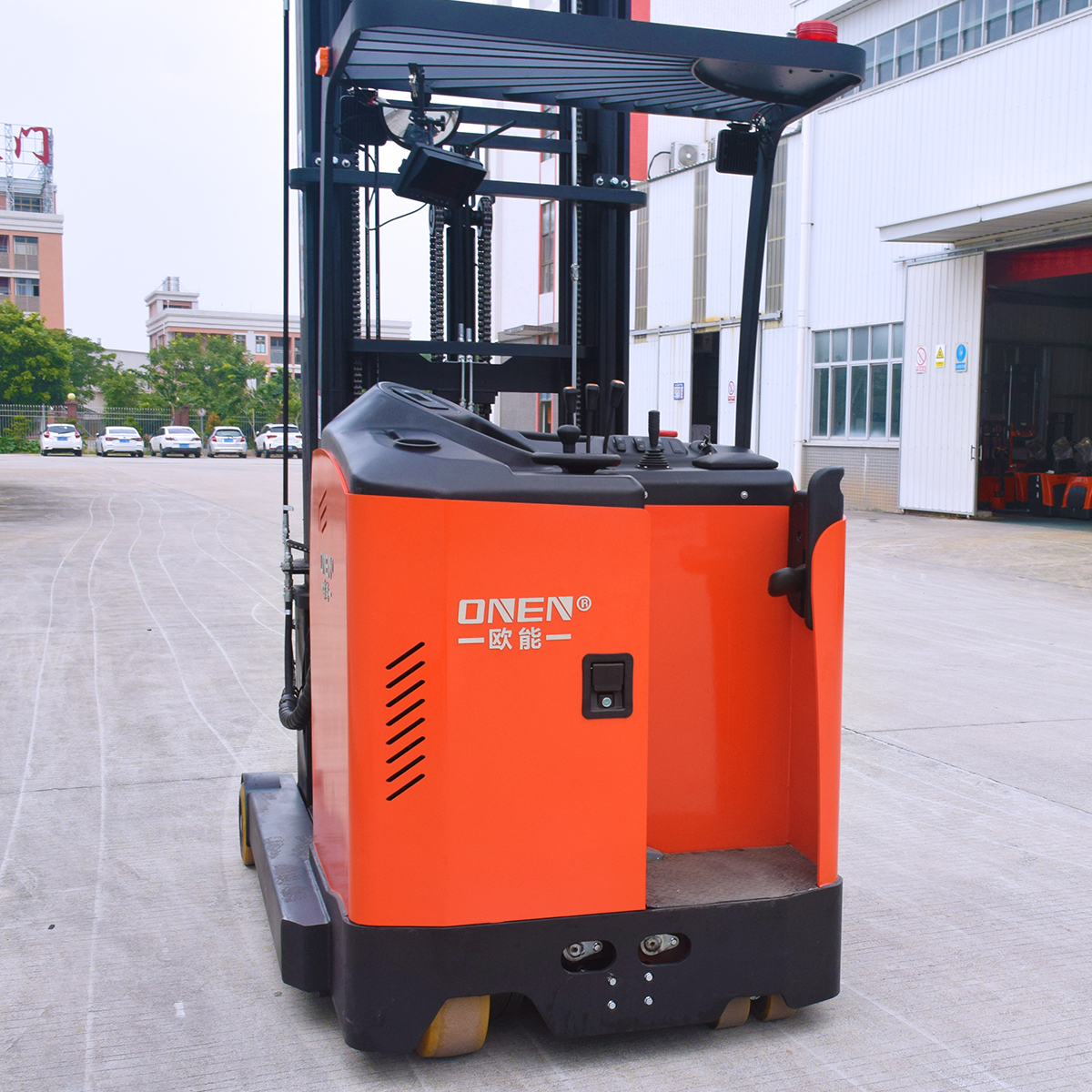

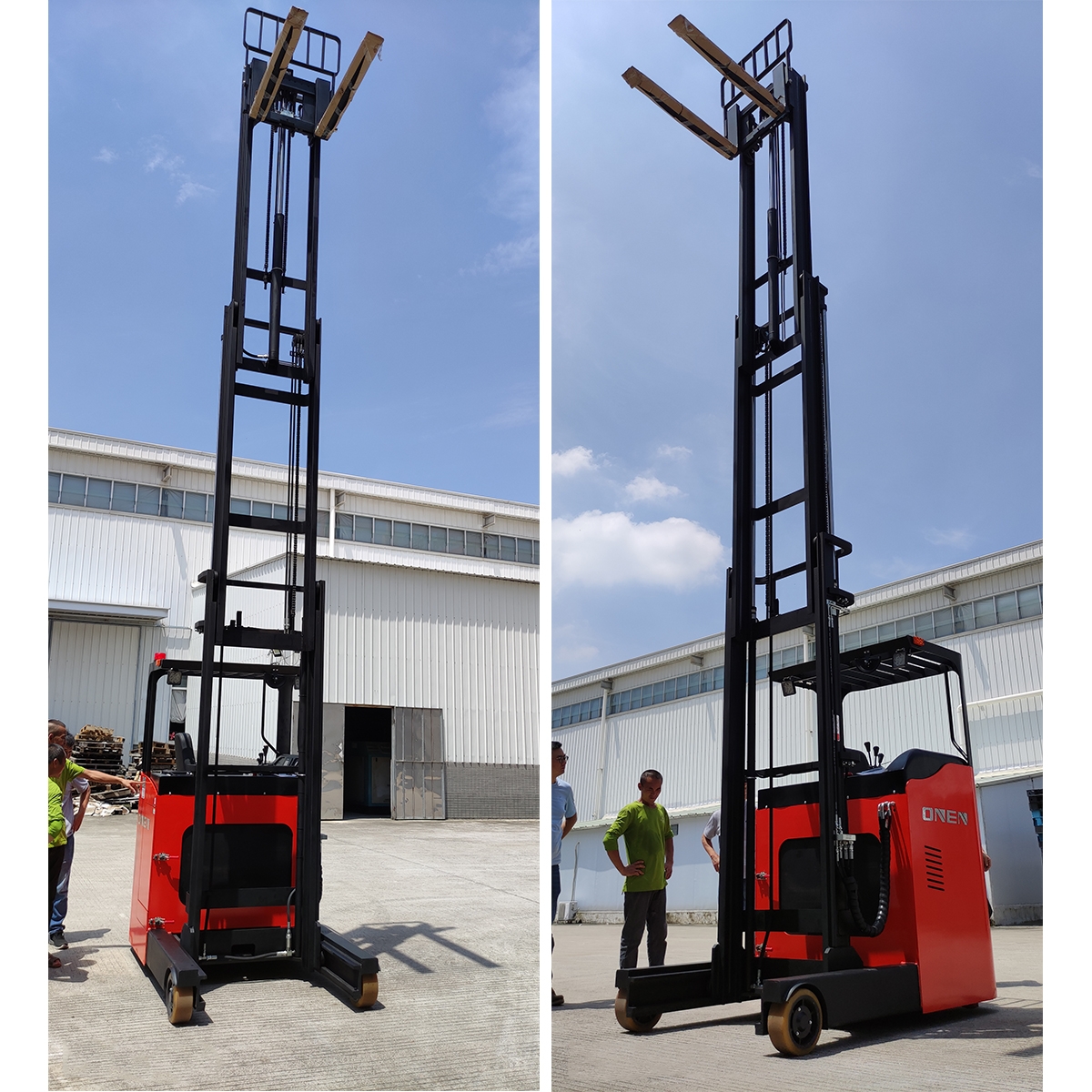

ONEN CQD-B reach forklift

ONEN CQD-B stacking vehicle (2 tons/6 meters) is specifically designed for high-density three-dimensional warehousing. Its 2-ton load capacity meets the needs of heavy pallets, and its 6-meter lifting height allows full utilization of upper shelf space.

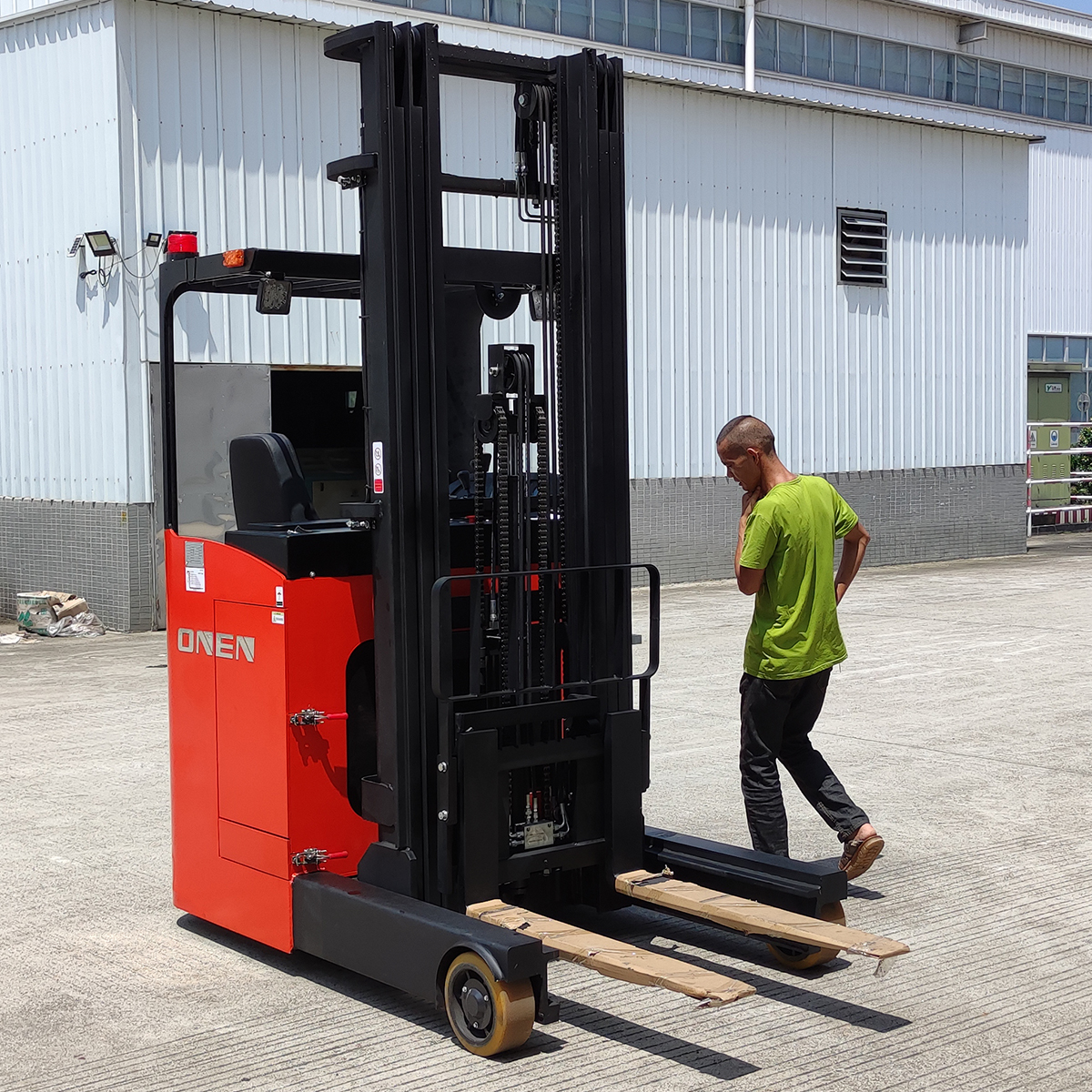

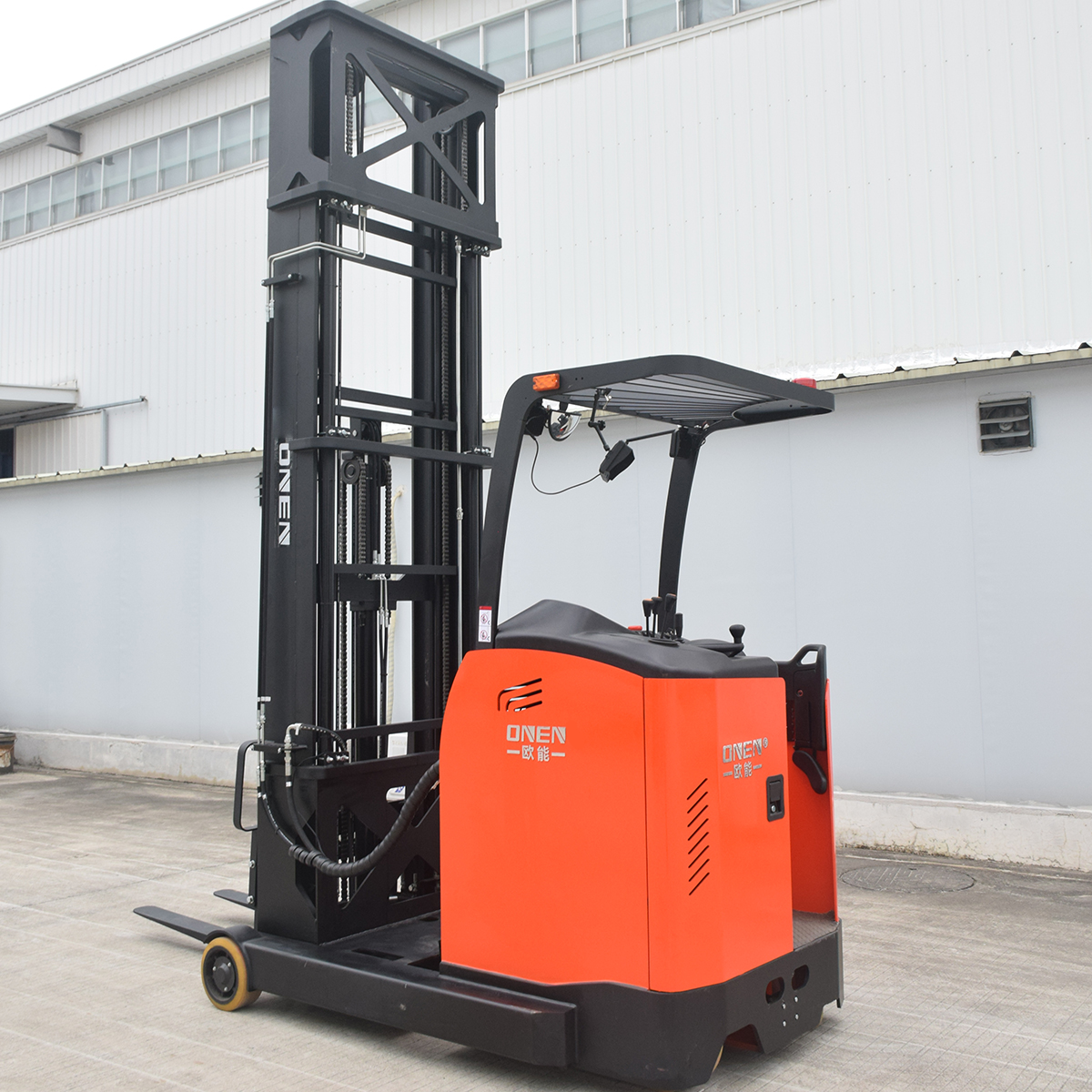

2-ton sit-down reach forklift

The forward-driving design enables it to operate flexibly in narrow aisles, with a right-angle stacking aisle width of only about 2.9 meters. It is suitable for high-level shelf access, production line material distribution, and cold storage operations, effectively improving warehouse capacity utilization and logistics efficiency.




1

Model

CQD-B

2

Configuration No.

2060-Q

3

Power type

Electric

4

Steering type

Electric steering

5

Operation type

Seated

6

Load capacity

kg

2000

7

Load center distance

mm

500

8

Reach Distance

mm

505

9

Wheels type

PU

10

Driving wheel size

mm

Ф382×142

11

Bearing wheel size

mm

Ф267×114

12

Overall Length (With Fork)

mm

2477

13

Overall Width

mm

1270

14

Mast lowered height

mm

2620

15

Lift height

mm

6000

16

Extended mast height

mm

6965

17

Fork dimensions

mm

35/100/1070

18

Turning radius

mm

1800

19

Travel speed (Laden/Unladen)

km/h

6.8/7.8

20

Lift speed (Laden/Unladen)

mm/s

120/240

21

Lowering speed (Laden/Unladen)

mm/s

315/260

22

Gradeability (Laden/Unladen)

%

≤10

23

Driving motor

kw

6.5

24

Lifting motor

kw

4.5

25

Voltage/Capacity of lead-acid battery

V/Ah

48/300

26

Lead-acid battery charger

V/A

24/40

27

Voltage/Capacity of lithium battery (Optional)

V/Ah

48/280

28

Lithium battery charger

V/A

24/50

29

Sound level at driver's ear

dB(A)

<70

Mast Table

Lift height

Mast lowered height

Free lift

Extended mast height

h3(mm)

h1(mm)

h2(mm)

h4(mm)

3000

2100

3577.5

3500

2350

4077.5

4000

2600

4577.5

4500

2100

1500

5465

5000

2280

1660

5965

5500

2450

1820

6465

6000

2620

1980

6965

6500

2790

2140

7465

7000

3210

2320

7965
