1. Integrated weighing and handling, improving work efficiency 2. The built-in high-precision weighing sensor ensures the accuracy of weighing 3. No need for professional training, easy to operate, and quick to learn operation 4. No additional space is required to place weighing equipment, saving space 5. Suitable for various warehouses, logistics centers, and other places, easily handling various complex road conditions
ONEN electronic scale manual pallet handling vehicle is a lightweight and small handling equipment that integrates weighing functions. It retains the lightweight and flexibility of traditional manual pallet handling vehicles, while incorporating high-precision weighing sensors and intelligent display instruments, achieving synchronous handling and weighing of goods. Operators only need to easily push to obtain the accurate weight of the goods in real time, greatly improving work efficiency and accuracy. Electronic scales and manual pallet trucks are widely used in warehouses, logistics centers, and other places, and are powerful assistants in modern logistics management.
Heavy-Duty Scale Pallet Truck — The Definitive Answer for Warehouses, Logistics Centers & Freight Yards
As warehouse rents climb and throughput pressure mounts, does your floor space still accommodate a separate weighing station? Are your operators wasting cycles moving pallets to a floor scale and back?

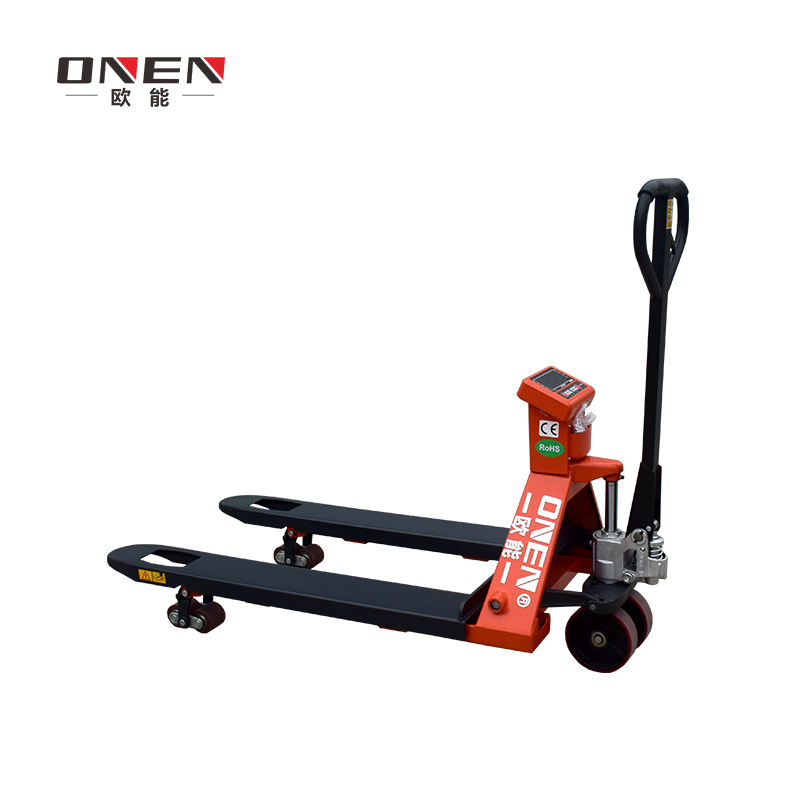

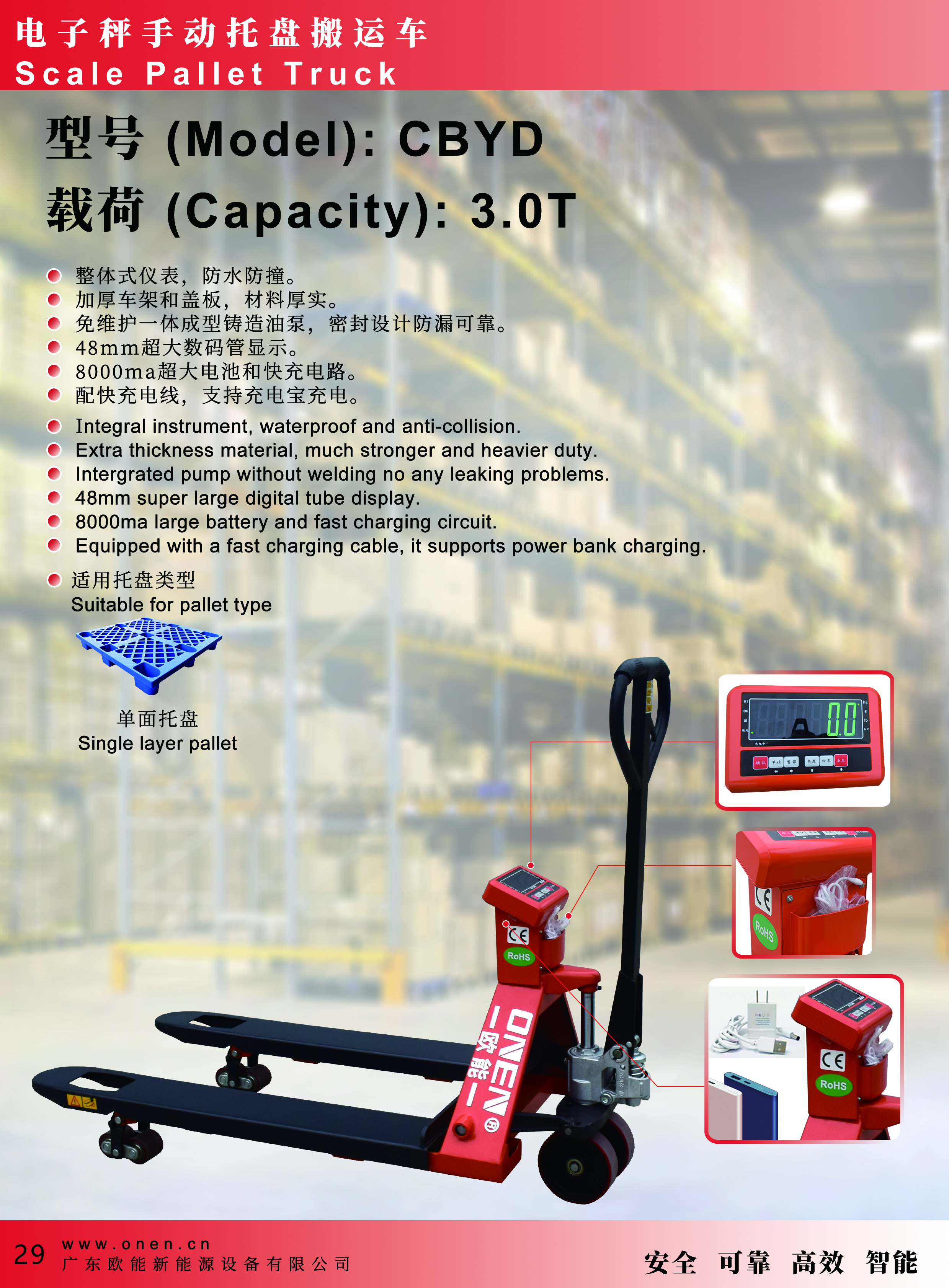

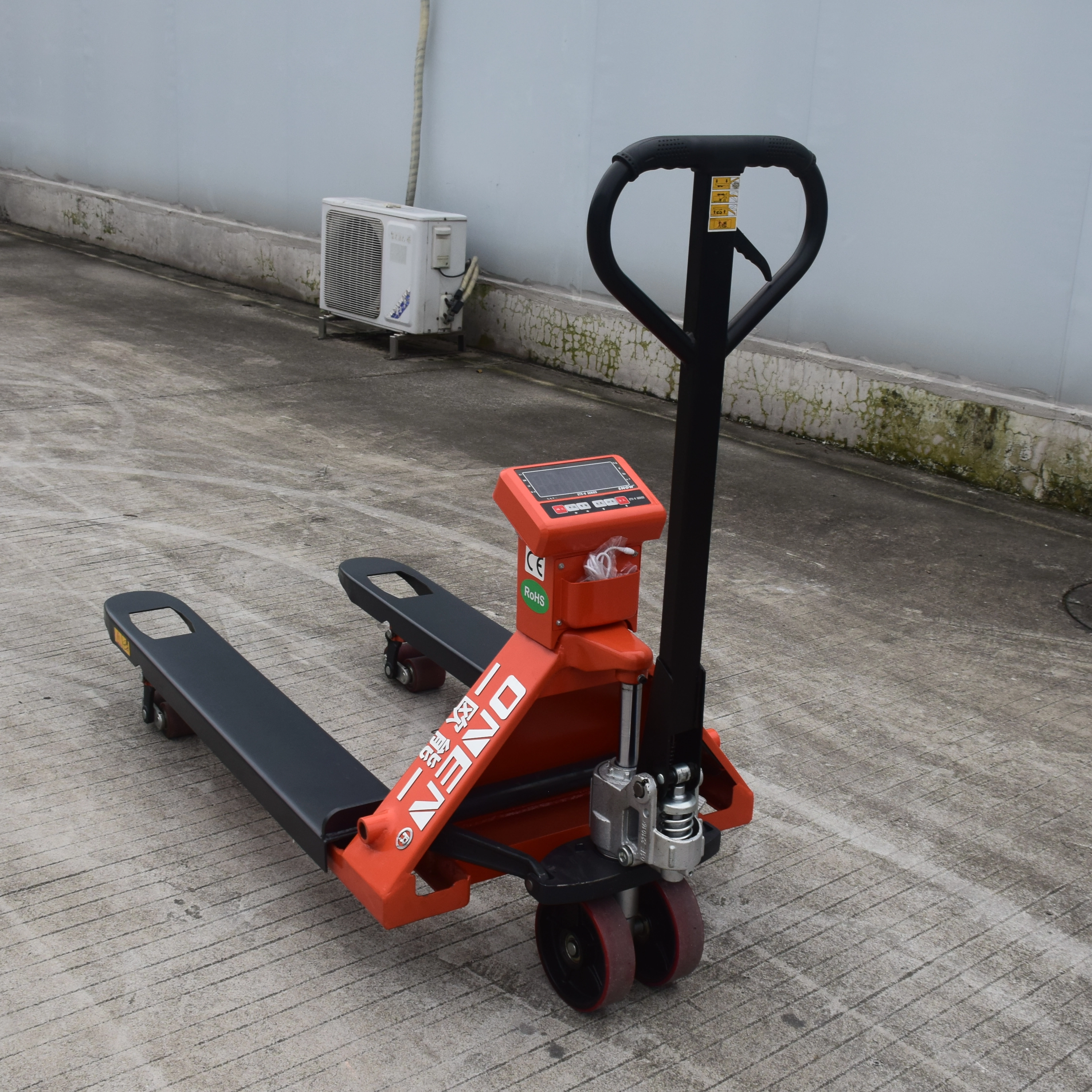

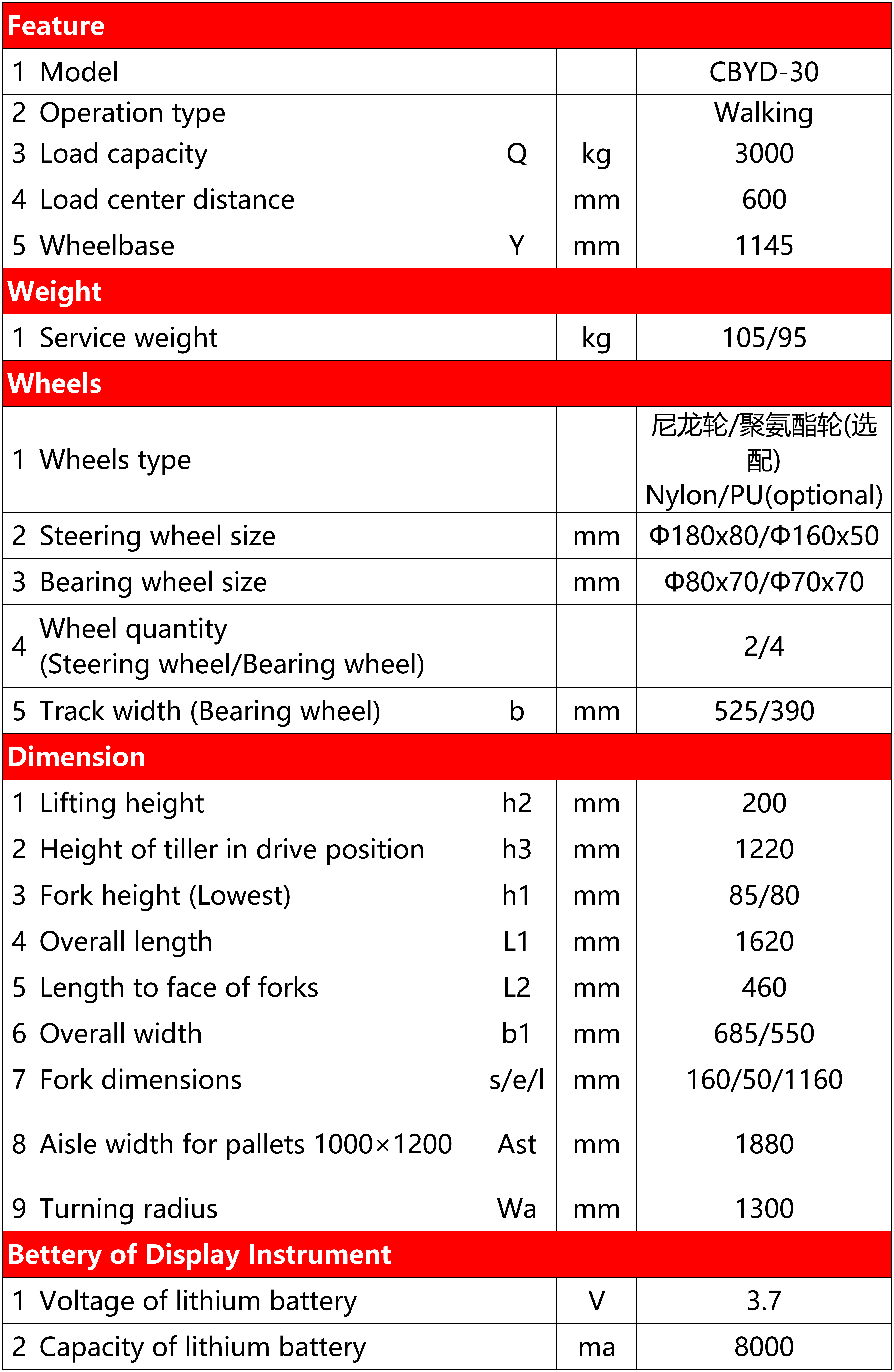

The CBYD is not a standard hand pallet truck with a bolted-on scale. Engineered from the frame up as an integrated weighing and handling platform, this 3-ton electronic scale pallet truck combines a high-precision XK3190-A12 weighing system with a reinforced hydraulic chassis. It delivers real-time weight data the moment the load lifts off the ground, helping 3PL providers, warehouse operators, and freight terminals eliminate redundant weighing steps, reclaim valuable floor space, and cut handling cycle times by up to 40%.
In traditional warehouse operations, forklifts and floor scales often function as two separate systems. After goods are unloaded from trucks, they must first be moved to a floor scale for weighing, then transferred to storage locations—occupying valuable aisle space while creating efficiency losses and error risks through repeated handling.
The ONEN CBYD electronic scale pallet truck redefines the "weigh-while-you-move" operational logic:
Zero Space Occupied: No need for additional floor scales or platform scales; one truck handles both transport and measurement.
Zero Data Delay: The XK3190-A12 intelligent indicator transmits weight data in real time, with a 6-digit large digital tube display that remains clearly readable even in direct sunlight.
Zero Learning Curve: The three-position handle control (lift / neutral / lower) allows ordinary warehouse staff to operate proficiently without specialized training.
Beyond "Standard" — Five Engineering Advantages Redefining Weigh-Pallet Efficiency

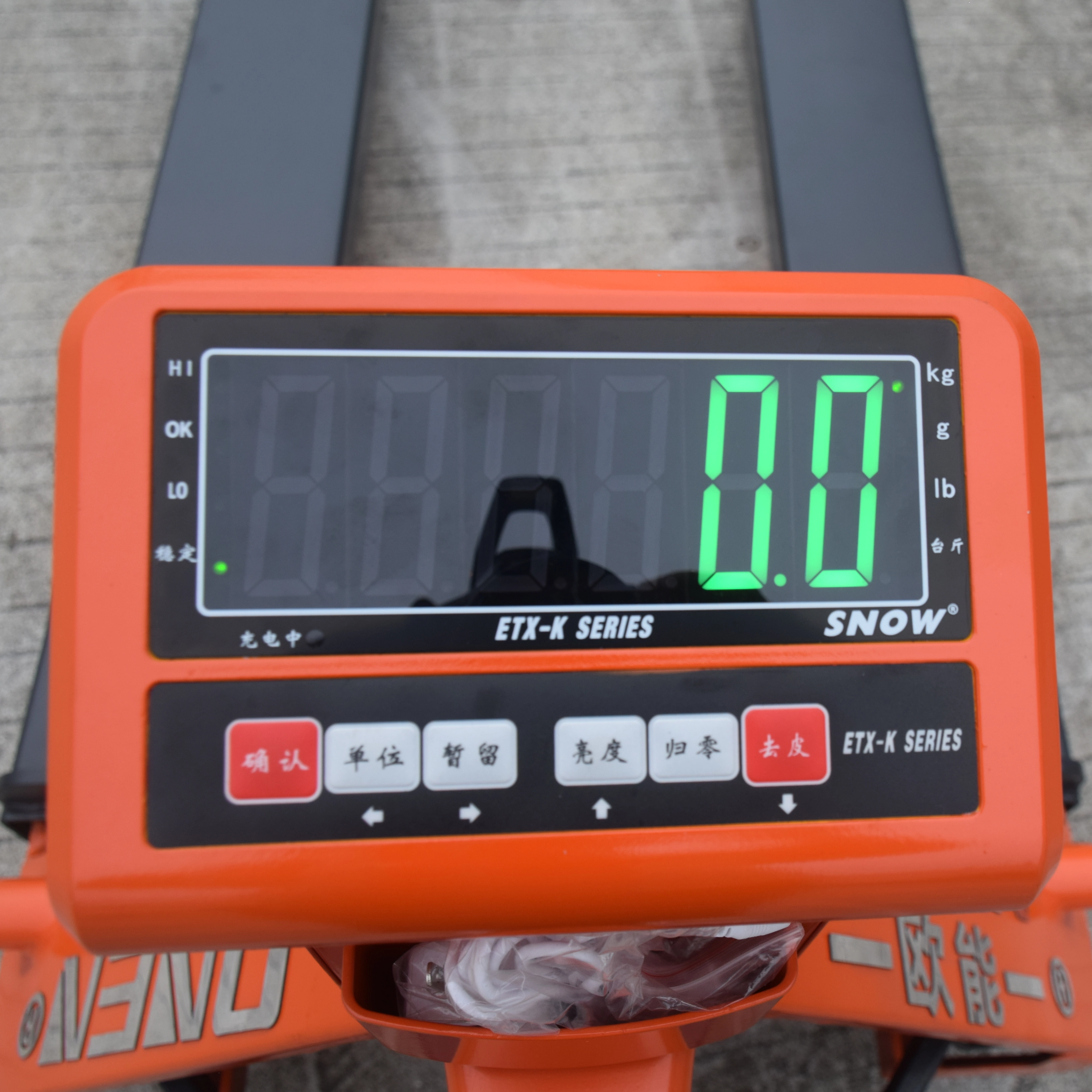

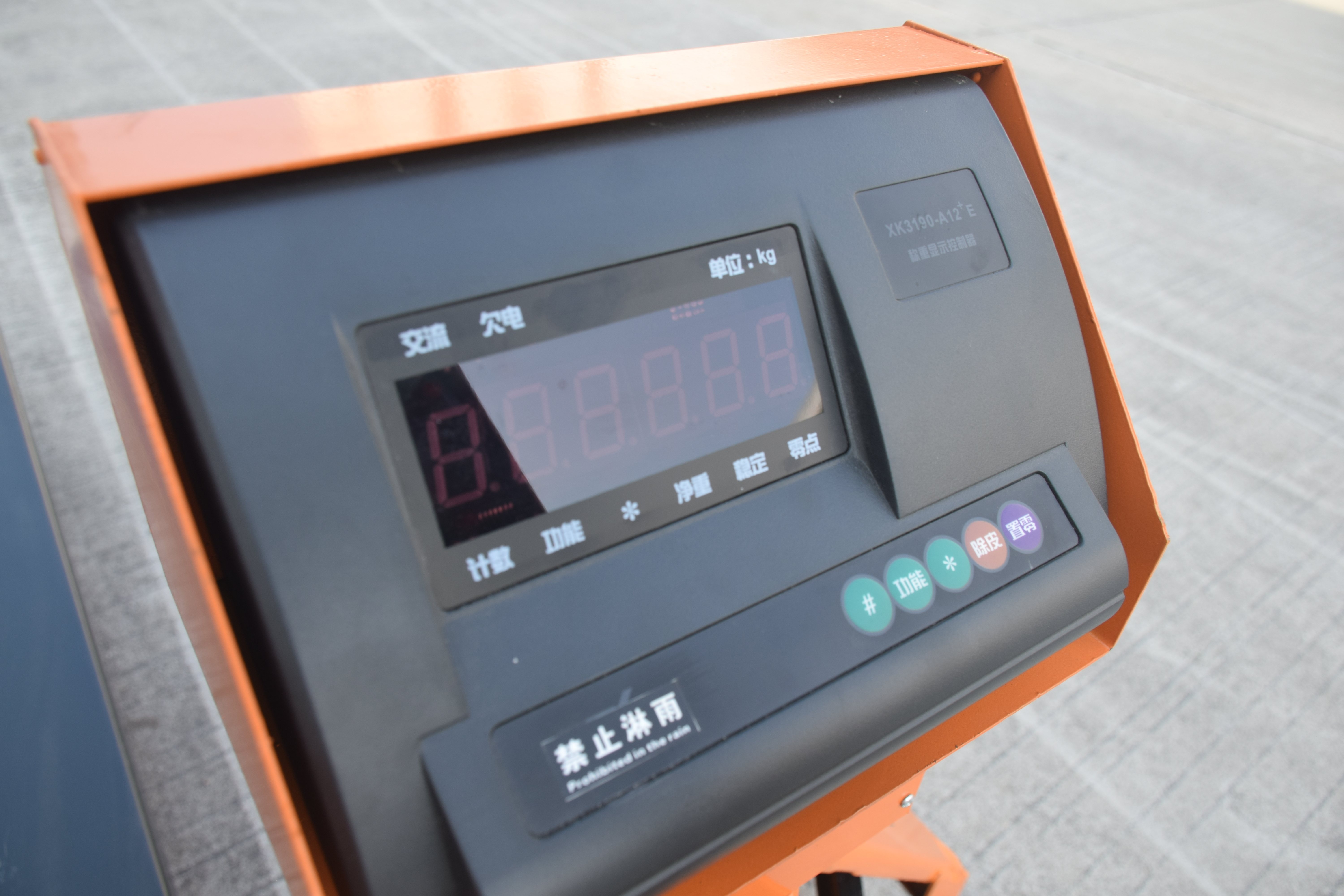

1. XK3190-A12 Intelligent Indicator: Accuracy You Can Read Across the Dock At the heart of the CBYD sits the XK3190-A12 weighing indicator. Featuring a 6-digit high-contrast LCD with status annunciators for count, function, tare, stability, and zero, the display remains legible under warehouse fluorescents or direct sunlight. Grade III accuracy (n=3000) and a 10 Hz sampling rate ensure that every reading is captured in milliseconds, while one-touch keys for zero, tare, accumulation, and counting turn the operator into a one-person weighing station.
2. Integrated Instrument Housing: Waterproof, Collision-Resistant, Warehouse-Tough Unlike aftermarket scale kits that leave displays exposed to fork impacts, the CBYD uses an integral instrument tower forged into the chassis structure. The sealed housing shrugs off accidental bumps from adjacent pallets, splashes from wet floors, and the dust endemic to busy docks. The result is a drastically lower failure rate compared to externally mounted indicators—meaning fewer maintenance tickets and zero downtime from a cracked screen.

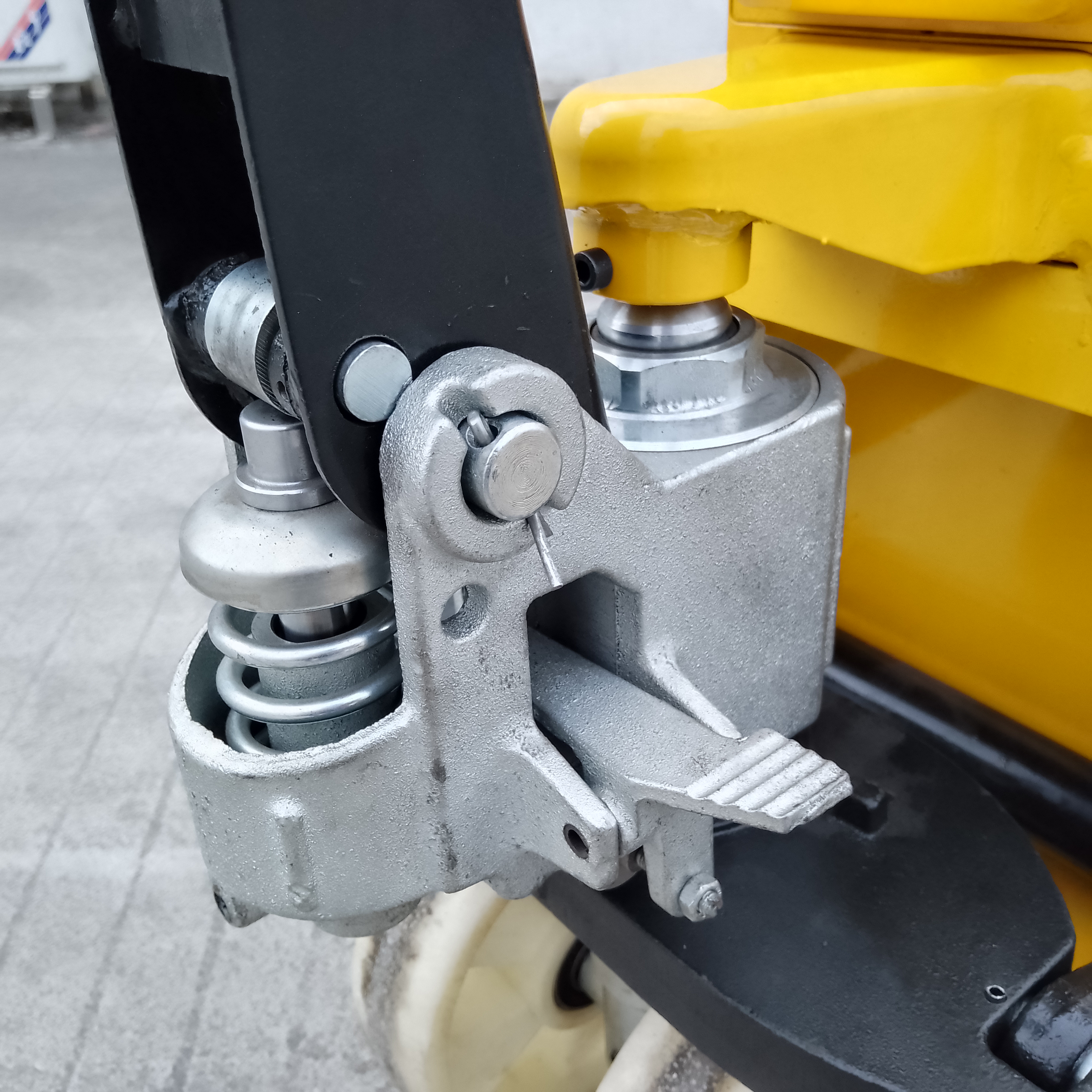

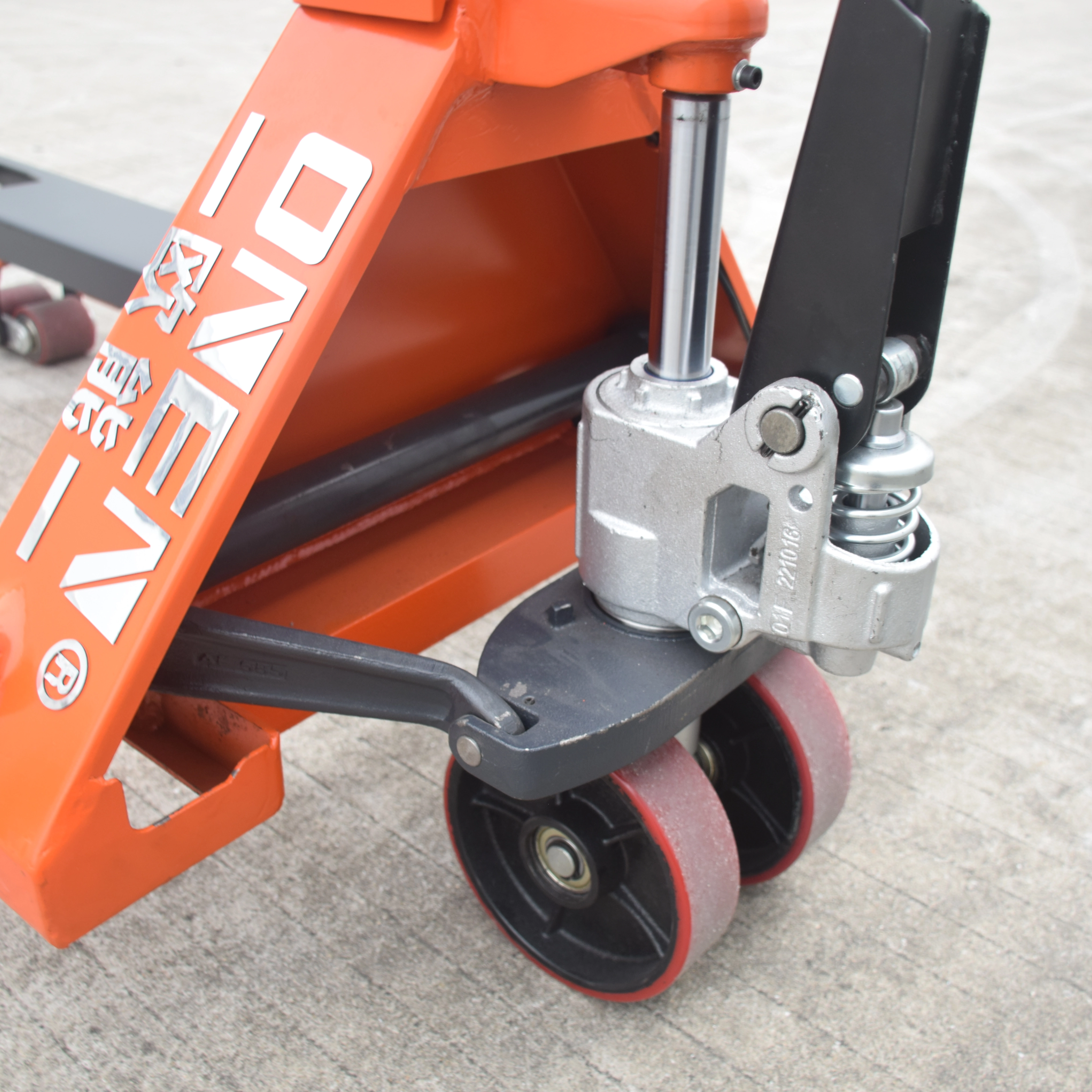

3. Maintenance-Free Integrated Casting Pump: Sealed for Life Hydraulic reliability starts at the pump. The CBYD abandons traditional welded pump bodies in favor of a one-piece cast iron hydraulic unit with precision-machined sealing surfaces. Without weld seams to fatigue or leak, the system maintains consistent lifting pressure across thousands of cycles. Paired with high-grade sealing rings and a 0.3 L ISO VG32 hydraulic oil capacity, the pump delivers drip-free performance from day one through year five.
4. 8,000 mAh Power Core: Fast Charge, All-Day Endurance, Power Bank Backup Power anxiety has no place on a busy dock. The built-in 3.7 V / 8,000 mAh lithium battery supports the indicator through multi-shift operations, while the fast-charge circuit brings the system back to full capacity in hours, not overnight. Forgot the charger? The USB-compatible charging port accepts standard power banks, ensuring that a dead battery never stops a consignment from shipping on time.

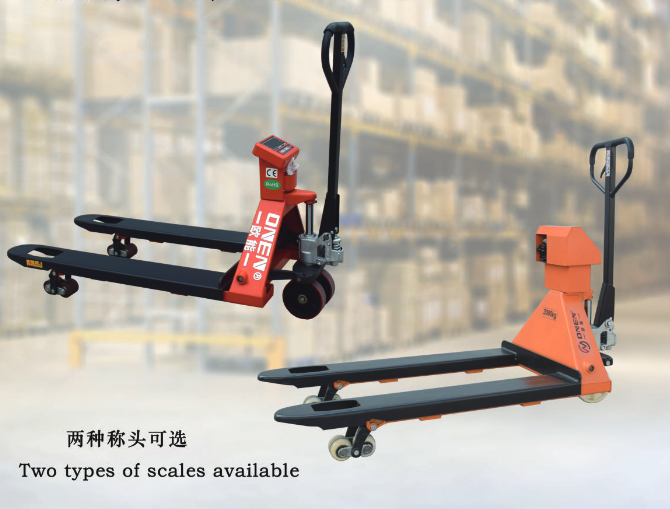

5. Reinforced Frame & Dual Fork Widths: Built for Real Loads The chassis and cover plates use extra-thickness steel to handle the daily abuse of 3-ton loads. Operators can choose between 550 mm and 685 mm overall widths to match narrow European pallets or wider Asian standard skids. Nylon wheels come standard for smooth concrete; optional polyurethane (PU) wheels provide silent, floor-friendly operation in retail backrooms and food-grade facilities. Two instrument head styles are also available to suit different operator sightlines and cab clearances.
Comprehensive International Certifications — Zero Risk for Export Procurement and Policy Compliance
From ISO 9001 / 14001 / 45001 management systems to CE and RoHS product compliance, the CBYD’s certification matrix covers quality management, product safety, and environmental directives.
What does this mean for you?
Overseas Distributors & Fleet Buyers: CE and RoHS compliance ensures smooth customs clearance and market entry into Europe and other high-standard regions without costly retrofits.
Domestic Enterprise & State-Owned Procurement: Complete special equipment qualifications and type-test reports meet bidding thresholds and safety inspection requirements.
Born for Real-World Conditions — Three Core Application Scenarios
Warehouses & Distribution Centers: Reclaim Your Floor Space In high-rent fulfillment centers, every square meter counts. The CBYD eliminates the need for a dedicated floor-scale zone, turning any aisle into a mobile weighing station. Operators can verify inbound freight, check outbound consignments, and spot-check picker accuracy without diverting traffic through a central scale house.
Freight Terminals & Cross-Docking Yards: Speed Through Turnaround For LTL and parcel hubs, velocity is currency. The CBYD lets forklift operators weigh palletized cargo during the natural handling flow—no double-touch, no queueing. The accumulation function totals multi-pallet shipments on the fly, while the RS-232 serial port (optional) streams data directly to WMS or shipping manifest software.
Manufacturing & Retail Backrooms: Precision Without Complexity From raw-material intake to finished-goods dispatch, production facilities need traceability without hiring specialized scale operators. The CBYD’s intuitive button layout—Zero, Tare, Unit, Hold, and Confirm—requires zero training. The upper/lower limit alarm (optional) instantly flags under- or overweight batches, preventing costly production line stoppages.
Fleet-Level Customization & Full-Lifecycle Support
The CBYD supports OEM and fleet customization, including:
Fork Width: 550 mm or 685 mm to match your pallet standard
Wheel Compound: Nylon (standard) or PU (floor-protection option)
Instrument Head: Two display housing styles for different sightline requirements
Color & Branding: OEM paint and logo integration for fleet identity
[Request a Fleet Quote] — Tell us your daily pallet volume and aisle width, and we will match the optimal fork configuration and battery strategy. [Schedule a Video Factory Tour] — View our assembly line, pump test bench, and finished-vehicle commissioning yard in real time.
Frequently Asked Questions
Q: How accurate is the weighing system? A: The XK3190-A12 indicator delivers Grade III accuracy with n=3000 divisions. For best results, ensure the pallet is centered and the floor is level. Annual calibration with certified weights is recommended.
Q: Can it operate outdoors or in damp conditions? A: The integral instrument housing is designed to resist splashes and dust common in warehouse environments. While the display is protected, prolonged exposure to rain should be avoided to preserve electronic longevity.
Q: What happens when the battery runs low? A: The display shows a "Lo-bAt" warning well before shutdown. The system supports operation during charging, and the USB-compatible port allows emergency charging from any standard power bank.
Q: Is professional training required? A: No. The three-position handle (lift / neutral / lower) operates identically to a standard manual pallet jack. The weighing functions use four clearly labeled buttons; most operators are proficient within five minutes.
