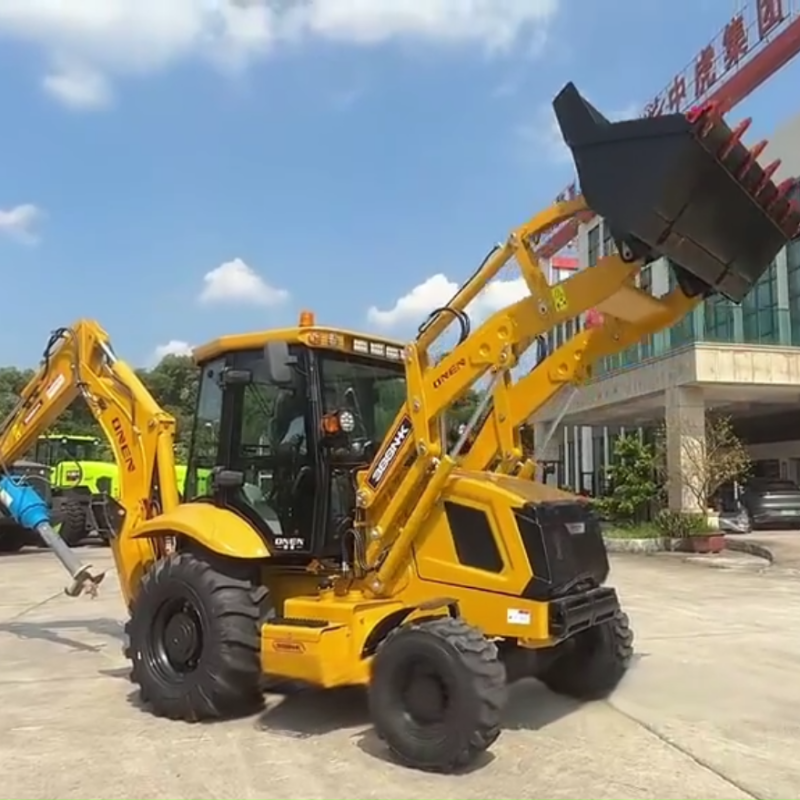

ONEN Multifunctional Backhoe Loader for Construction, Agriculture & Orchard

Product advantages
1. Configure Carraro drive axle and gearbox.
2. FOPS&ROPS integral cab.
3. The excavation work device adopts hydraulic sliding, which is more convenient to operate.
4. Equipped with a vehicle stability system to reduce bumps during driving and increase comfort.
5. Integrated rear flip hood for easy opening, maintenance, and repair.
Availability:
  • 388T/388

  • ONEN

  • Backhoe loader

  • Diesel

  • 2.5T

  • Seated

  • PU

  • 5750mm

  • 5050mm

  • Dongfeng Cummins (388T) / Yuchai YC4A105Z-T20 (388)

  • Support

  • CE/RoHS/SGS

Loader Parameters


Feature
1 model
388T 388

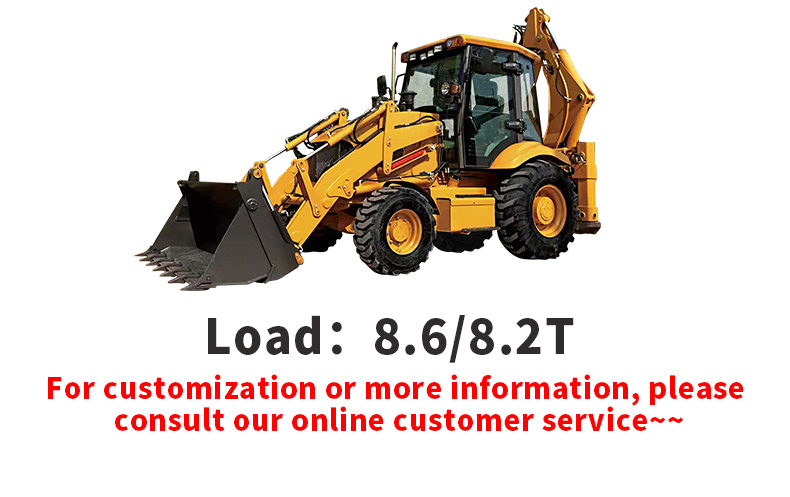

2 Load capacity kg 8600 8200
3 Engine model
Dongfeng Cummins Yuchai YC4A105Z-T20
4 Rated power KW 74.5 75
5 Steering Type
hydraulic steering
6 Steering gear model
BZZ-250
7 Ratedfrontaxleload kg 22500
8 Rated rear axle load kg 18750 18500
9 Drive axle
ltaly Carraro Chinese Feicheng
10 Wheel base mm 2280
Dimension
1 Overall dimension(LxWxH) mm 6050×2484×3453 6050×2465×3813
2 Load bucket capacity 1.0( 4 in 1 Bucket) 1.0
3 Telescopic Boom
(standard) (Optional)
4 Bucket unloadingheight mm 2807
5 Bucket unloading distance mm 801 908
6 Digging depth mm 30 56
7 Backhoe bucket capacity 0.3
8 Bucket unloadingheight mm 4084/4720 /
9 Max.Diggingdepth mm 4303/5246 3967
10 Ground clearance mm 300
11 Turning radius mm 6581
performance
1 Load breakout force KN 47
2 Load liftingcapacity kg 2500
3 Backhoe diggingforce KN 49.8 50
4 Backhoe swingangle ° 180 180
5 Max.Traction force KN 76 76
6 Traveling Brake
Wet internal self- regulatic self-balance type Air Over Oil Caliper Brake
External Type
Self-regulation
Self-balance
7 Parking brake
Mechanical braking
Tyre
1 Front/Rear Model
14-17.5/19.5L-24
2 Front Tyre Pressure Mpa 0.4
3 Rear Tyre Pressure Mpa 0.35
4 Max.TravelSpeed Km/h 39





388T Backhoe Loader — Multipurpose Excavator Loader Built for Real Work

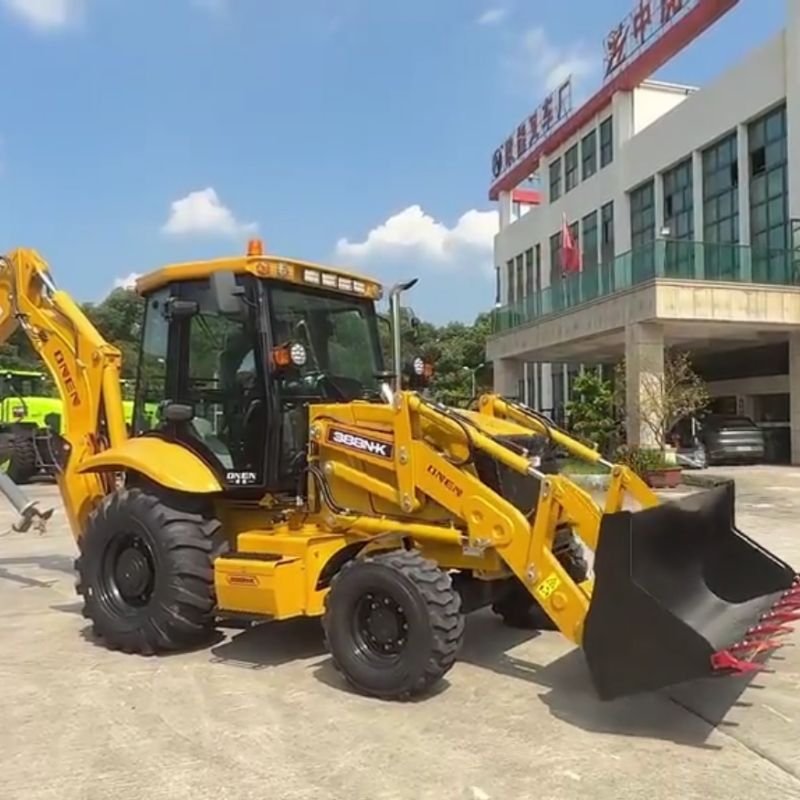

Heavy-Duty Backhoe Loader | Front Shovel & Rear Excavator in One Machine

One machine. Two work zones. Zero downtime switching attachments.

When your job site demands both loading and digging, the 388T backhoe loader eliminates the need for multiple machines. Designed as a fully integrated front shovel and rear excavator, this multipurpose excavator loader handles everything from trenching and material handling to site grading and agricultural earthmoving — all without repositioning equipment.

Whether you're breaking ground on a construction site, maintaining orchard roads, or managing breeding farm infrastructure, the 388T keeps you busy at both ends.


Why Operators Choose This Excavator Loader

Italian Drivetrain, Global Reliability

At the heart of the machine lies a Carraro axle and gearbox — the same drivetrain technology trusted by European OEMs. Power gets to the ground efficiently through a wet internal self-regulating brake system, giving you consistent traction in mud, gravel, and uneven terrain.

Cab Safety That Meets International Standards

Long shifts demand real protection. The FOPS & ROPS integral cab shields the operator from falling debris and rollover risk, while the panoramic glass design maintains full visibility of the front bucket and rear backhoe arm. Work confidently through dawn-to-dusk schedules.

Hydraulic Precision for Complex Digging

The rear excavation unit features a hydraulic sliding work device, allowing smooth lateral adjustment without repositioning the entire chassis. This means tighter trenching along walls, precise utility-line digging, and less ground disturbance in sensitive agricultural areas.

Stability Where It Counts

An optional vehicle stabilization system actively dampens frame flex when traversing rough ground. Combined with hydraulic outriggers, the loader maintains level operation during heavy rear-arc digging — reducing operator fatigue and improving cycle times.

Maintenance-Ready Design

Routine service shouldn't eat into your profit. The integrated rear flip hood opens wide for direct access to the engine bay, filters, and cooling pack. Fewer tools, less downtime, more billable hours.

Born From Decades of Manufacturing Discipline

This backhoe loader isn't assembled from off-the-shelf kits. It comes from a 30-year production heritage in heavy mechanical equipment — backed by a 150-million-yuan manufacturing base and precision processes including CNC bending, robotic welding, and full-vehicle testing lines.

Our floor isn't just about backhoe loaders. The same engineering team designs electric forklifts, reach trucks, and AGV intelligent logistics systems. That cross-pollination of electromechanical expertise means better hydraulic control logic, smarter CAN-bus diagnostics, and stricter quality gates on every 388T that rolls off the line.


Certified for Global Markets

Exporting equipment requires more than a good spec sheet. The 388T carries the documentation your customs and safety inspectors expect:

  • CE / RoHS / SGS compliance for European and environmentally regulated markets

  • ISO 9001 / 45001 / 14001 quality, safety, and environmental management systems

  • TX Type Test Certificate and Special Equipment Production License confirming structural integrity and manufacturing legality

From Southeast Asian construction zones to Eastern European agricultural cooperatives, these certifications keep your procurement process smooth and your liability low.

去中文留英文海报 (1).png

One Platform, Multiple Applications

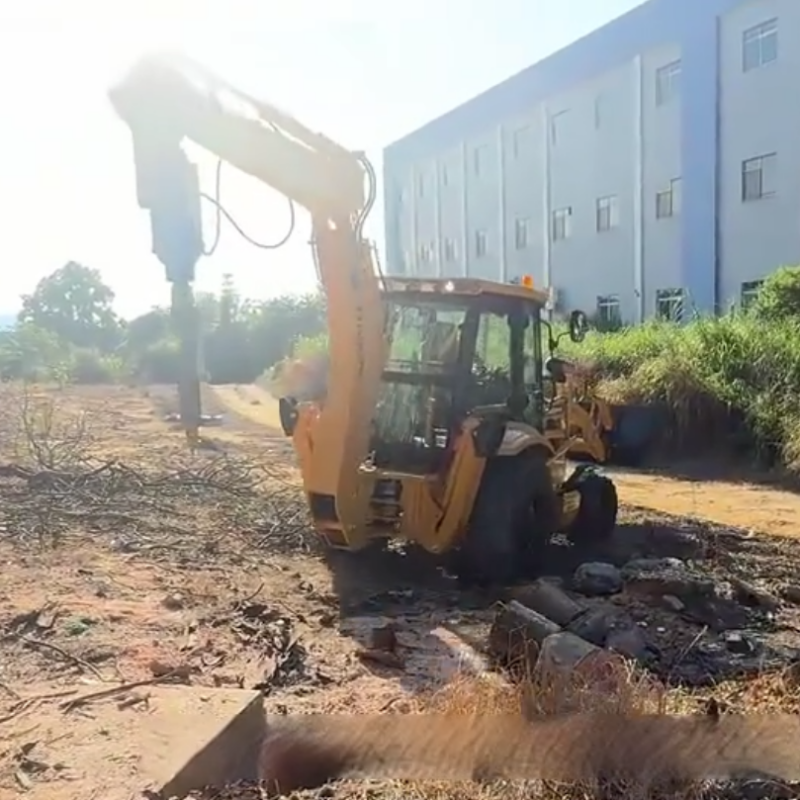

Construction & Civil Engineering

Dig foundations, backfill trenches, load aggregates, and grade surfaces — all with a single operator and one fuel tank.

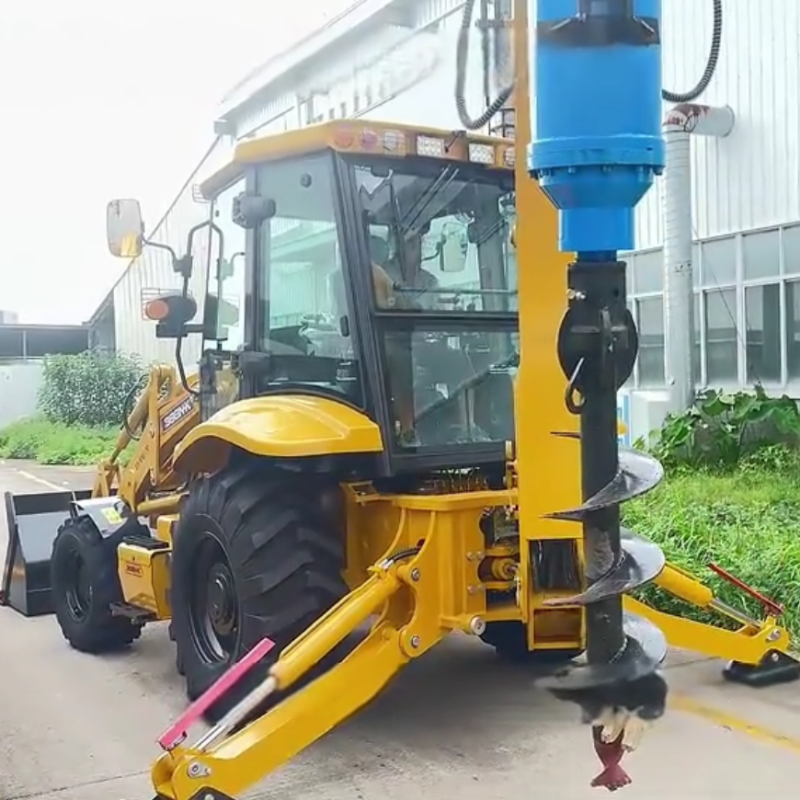

Agriculture & Orchard Breeding

Clear land, dig irrigation channels, and handle feed or fertilizer pallets. The compact turning radius navigates narrow orchard rows where larger excavators can't fit.

Municipal & Rental Fleets

A true multipurpose excavator loader reduces fleet size. One 388T replaces a wheel loader and a mini excavator, cutting capital expense, transport cost, and storage footprint.


Need a Custom Configuration?

Standard doesn't always fit. We support OEM customization on bucket types, auxiliary hydraulic circuits, tire compounds, and cab options. Before you commit, our team provides detailed quotations, video factory inspections, and sample logistics planning.

[Request a Quote] — Tell us your job site conditions, and we'll spec the right backhoe loader for your workload.

[Schedule a Video Factory Tour] — See the welding lines, test bays, and finished-goods yard in real time.
