Product Advantages 1. Multi-Directional Aerial Mobility Operates smoothly at various working heights, allowing continuous up/down, forward/backward, and turning movements for efficient in-air task completion. 2. Robust Safety Engineering Constructed from high-quality structural steel and equipped with a manual descent function, ensuring safe, reliable, and durable performance under daily use. 3. High Reach & Load Capacity Achieves a maximum working height of 10 meters with a rated load of 130–150 kg, meeting the demands of single-operator elevated maintenance and installation work. 4. Versatile Indoor & Outdoor Application Ideally suited for factory workshops, commercial lobbies, airports, parks, and public facilities where compact, zero-emission vertical access is required.

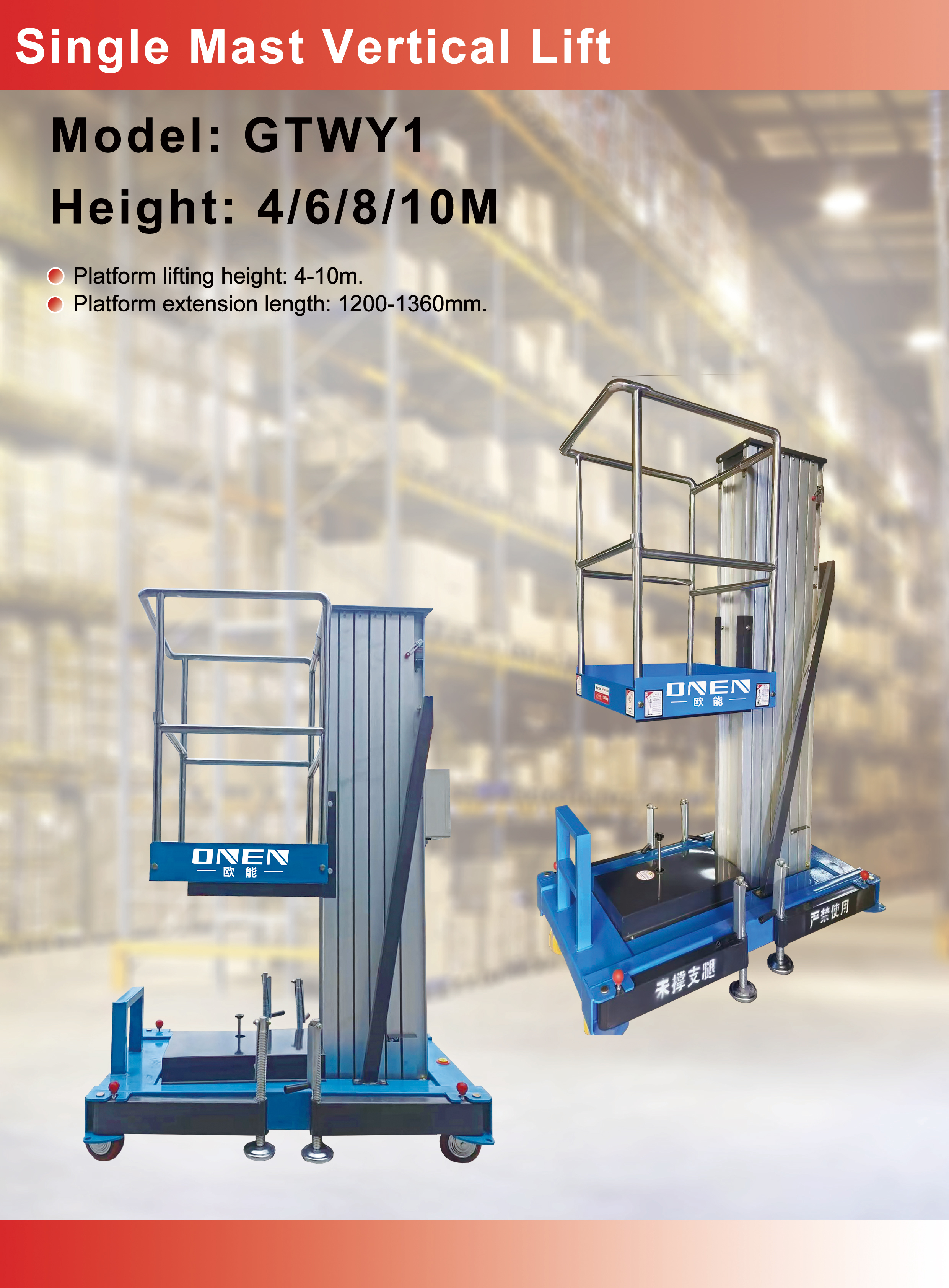

GTWY1 Single Mast Vertical Lift | Compact Aluminum Aerial Platform for Indoor Single
Single Mast Aluminum Aerial Work Platform — The Definitive Answer for Narrow-Aisle Maintenance, Retail Ceiling Work & Indoor Facility Upkeep
When standard doorways, retail aisles, and warehouse corridors limit your equipment choices, and indoor emission regulations ban fuel-powered machinery, does your maintenance fleet have a vertical access solution narrow enough to navigate tight spaces yet stable enough for safe overhead work?
The GTWY1 is not a stripped-down construction scissor lift. Designed from the ground up for single-operator indoor aerial tasks, this aluminum-mast vertical platform combines an aircraft-grade alloy structure with a zero-emission battery drive. It delivers quiet, fume-free elevation that meets continuous facility maintenance demands, helping facility managers, rental fleets, and commercial contractors reduce labor hours and improve safety compliance within strict indoor environmental policies.
Beyond "Compact" — Four Engineering Choices That Define Indoor Aerial Access
Aircraft-Grade Aluminum Mast: Lightweight Rigidity for Vertical Travel Replacing heavy steel scissor arms, the GTWY1 uses a high-strength anodized aluminum alloy mast system. With excellent corrosion resistance and a power-to-weight ratio optimized for indoor floors, the entire unit weighs only 240 kg to 350 kg depending on model—light enough for one person to manually push through standard doorways and onto elevators without auxiliary transport equipment.
Mechanical Stabilizer Interlock: Grounded Before Elevated The four-corner screw-type stabilizer system is more than a support feature; it is a passive safety gate. The platform elevation circuit remains locked until all four outrigger feet are firmly grounded, eliminating the risk of raising on an unstable base. Rated for 1.5° indoor and 3° outdoor slopes, the system adapts to slightly uneven workshop floors and loading bay transitions without compromising stability.

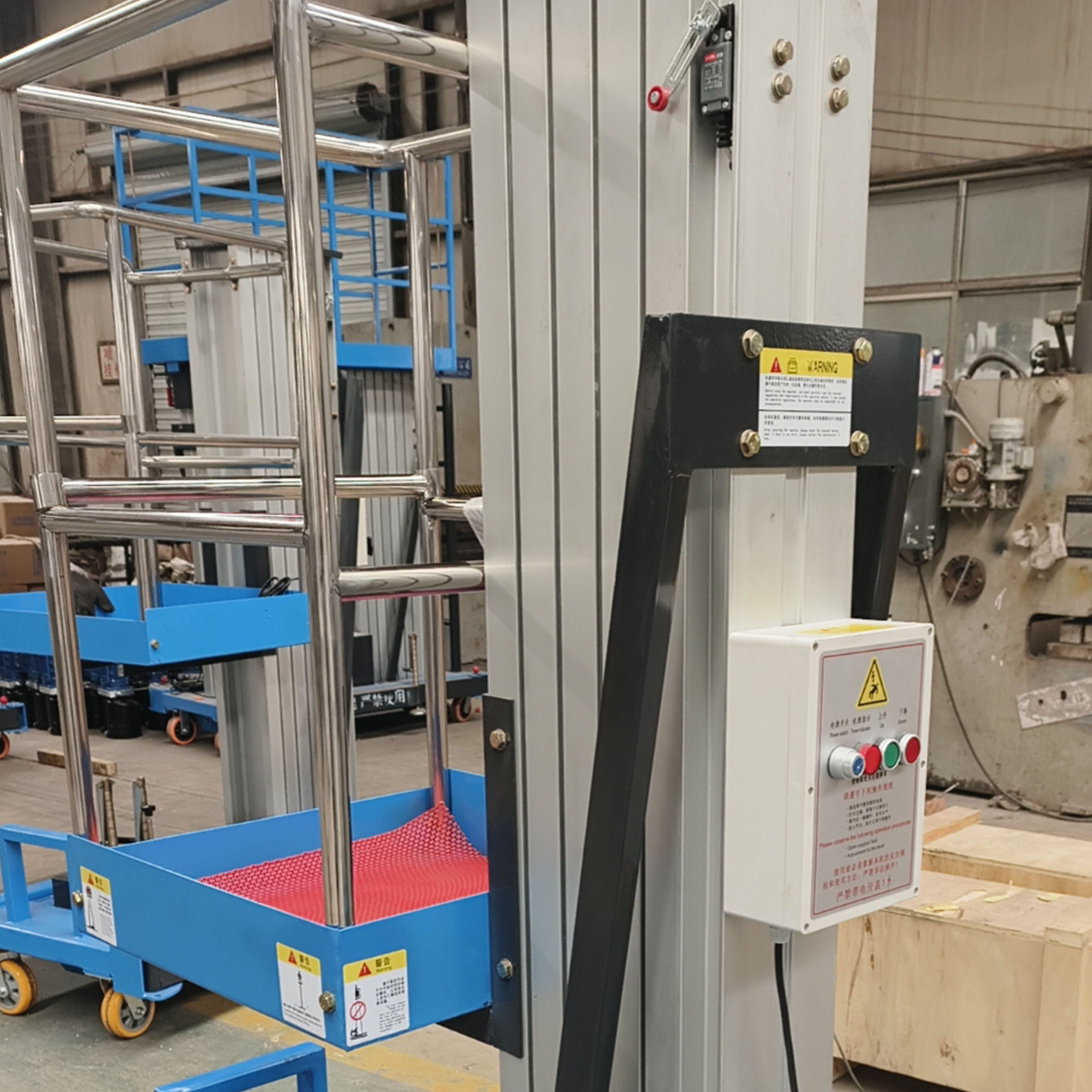

Dual-Point Control with Manual Descent: Redundancy at Height Operators command the platform from an upper pendant controller, while ground personnel retain an independent lower control station for supervision and emergency response. Should power be interrupted, a dedicated manual descent valve allows the platform to be lowered smoothly without electrical power—ensuring the operator is never stranded at elevation.
Polyurethane Non-Marking Mobility: Precision Positioning on Finished Floors Fitted with 150 mm polyurethane wheels and an overall width of just 850 mm, the GTWY1 passes through standard 900 mm doorframes and navigates narrow warehouse aisles with ease. The non-marking tire compound protects polished tile, epoxy, and retail flooring, while the battery-electric drive produces zero exhaust and near-silent operation—allowing work during business hours without disrupting customers or production.
International Certifications — Export-Ready Quality, Audit-Proof Compliance
From ISO 9001/45001/14001 management systems to CE, RoHS, and SGS product compliance, plus TX type test certificates, Special Equipment Production Licenses, and the Canton Fair Design Award—the GTWY1’s certification matrix covers quality management, product safety, environmental directives, and special equipment manufacturing regulations.
What does this mean for you?
Overseas Equipment Rental Companies: CE and SGS compliance ensure unrestricted market entry into Europe and other high-standard regions without costly retrofits. Domestic Facility
Management Contractors: Complete special equipment qualifications and type test reports satisfy the bidding thresholds and safety inspection requirements of commercial complexes, airports, and state-owned properties.
ESG-Focused Enterprises: RoHS environmental directive compliance and zero-emission battery operation support green building certifications, corporate ESG ratings, and carbon footprint accounting.
Fleet-Level Customization & Full-Lifecycle Support
The GTWY1 supports OEM and fleet customization, including platform extension configurations (platform extension length up to 1,200–1,360 mm depending on model), guardrail height adjustments, non-marking wheel compounds, and corporate color finishes.
[Request a Fleet Quote] — Tell us your typical working height and doorway width constraints, and we will match the optimal mast configuration and stabilizer package.
[Schedule a Video Factory Tour] — View our aluminum mast extrusion line, welding shop, and finished-unit testing area in real time.
