CPDD-V-3045
ONEN
Lithium forklift
Electric
3.0T
Seated
500mm
Pneumatic Tire / Solid Core Tire
4.5m
1070mm
2500mm
Lithium Battery
Single Sided Tray, Double Sided Tray
80V/205Ah
80V/100A
support
Warranty for one year or 2000 hours (5-year warranty for lithium batteries)
CE/RoHS/SGS
CPDD-V-3045
About the CPDD-V-3045

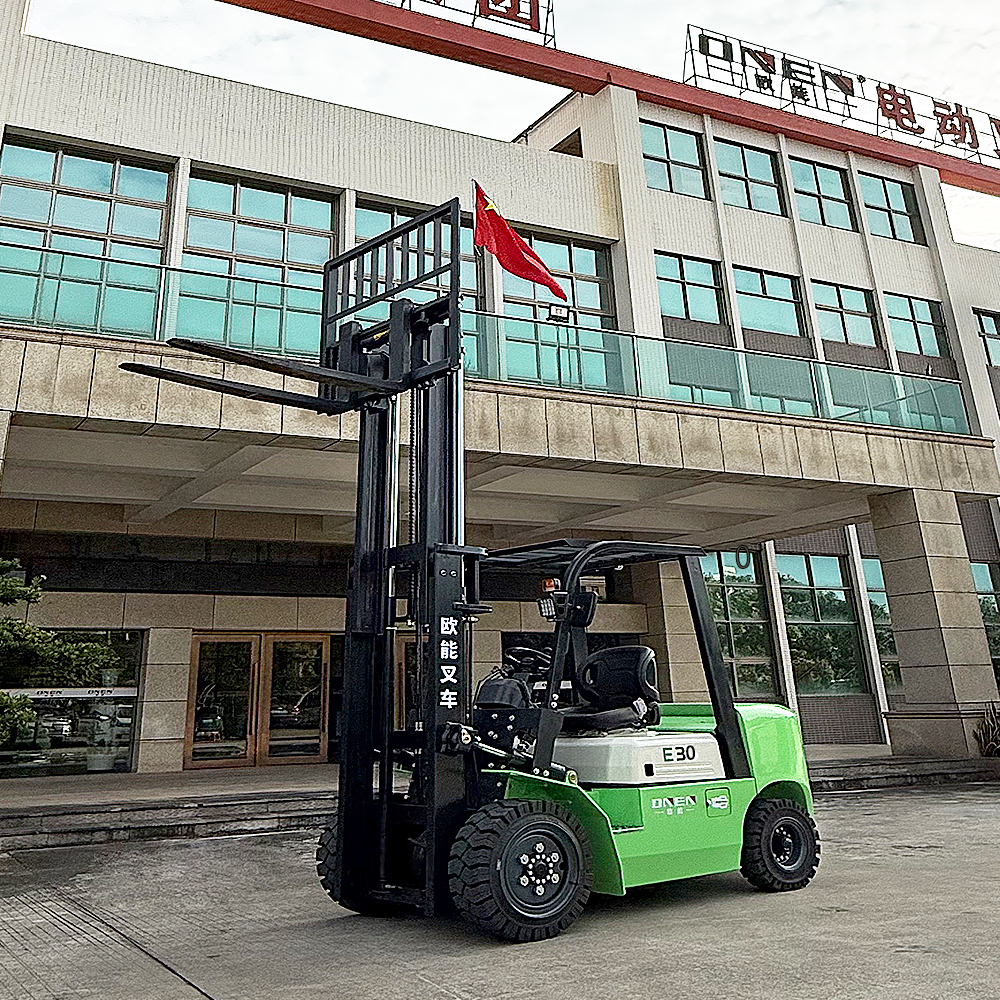

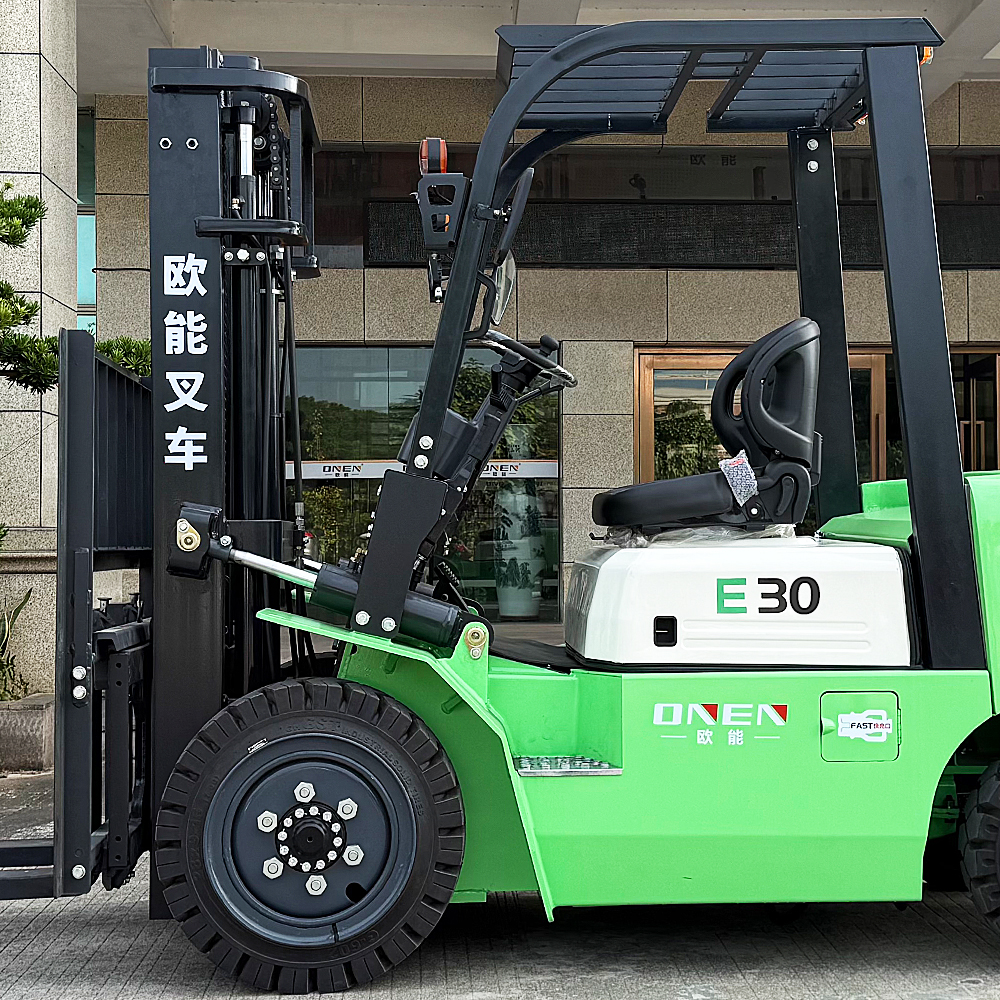

ONEN CPDD-V-3045 is an electric balanced weight forklift with high-performance configuration. The rated load capacity of this model reaches 3000 kilograms, adopting a car style operation design, equipped with an 80V high-capacity lithium battery system, with strong power and support for fast charging.
In terms of specifications, its standard gantry lifting height is 4500 millimeters, the vehicle width is 1220 millimeters, and the minimum turning radius is 2500 millimeters, with good channel adaptability. The vehicle is equipped with large-sized inflatable tires (front wheels 28 × 9-15, rear wheels 6.50-10), and solid tires can be optionally selected to cope with complex working conditions.
In addition, the maximum driving speed of the vehicle can reach 14.5 kilometers per hour, with a full load climbing ability of 15%, which can efficiently meet the demanding requirements of heavy material handling in industries such as warehousing, logistics, and manufacturing.
Core specifications for the CPDD-V-3045.
1 | Model | CPDD-V | ||
2 | Configuration No. | 3045 | ||
3 | Power type | Electric | ||
4 | Operation type | Seated | ||
5 | Load capacity | kg | 3000 | |
6 | Load center distance | mm | 500 | |
7 | Wheels type | Pneumatic tires/Solid tires(Optional) | ||
8 | Tyre size (Front) | 28×9-15-14PR | ||
9 | Tyre size (Rear) | 6.5-10-10PR | ||
10 | Mast lowered height | mm | 2170 | |
11 | Free lift | mm | 1379 | |
12 | Lift height | mm | 4500 | |
13 | Full height at maximum lifting | mm | 5674 | |
14 | Tilt of mast carriage (Forward/Backward) | ° | 6/12 | |
15 | Overall length（Without forks） | mm | 2760 | |
16 | Overall width | mm | 1220 | |
17 | Turning radius | mm | 2500 | |
18 | Aisle width for pallets 1000×1200 | mm | 4080 | |
19 | Maximum Travel speed (Laden/Unladen) | km/h | 13.5/14.5 | |
20 | Maximum Lift speed (Laden/Unladen) | mm/s | 290/400 | |
21 | Maximum Lowering speed (Laden/Unladen) | mm/s | 390/380 | |
22 | Gradeability (Laden/Unladen) | % | 15/15 | |
23 | Voltage/Capacity of lithium battery | V/Ah | 80/205 | |
24 | Lithium battery charger | V/A | 80/100 | |
