CPC/CPCD-3555 Diesel Forklift

Load Capacity: 3500kg
lift height: 5500mm
engine model: Xinchai / Quanchai / YANMAR / KUBOTA
Availability:
  • CPC/CPCD-3555

  • ONEN

  • Counterbalanced Diesel Forklift

  • Diesel

  • 3.5T

  • Seated

  • 500mm

  • Pneumatic Tire / Solid Core Tire

  • 5.5m

  • 1070mm

  • 2240mm

  • 60L

  • Xinchai/Quanchai/YANMAR/KUBOTA

  • Single Sided Tray, Double Sided Tray

  • support

  • Warranty for one year or 1000 hours

  • CE/RoHS/SGS

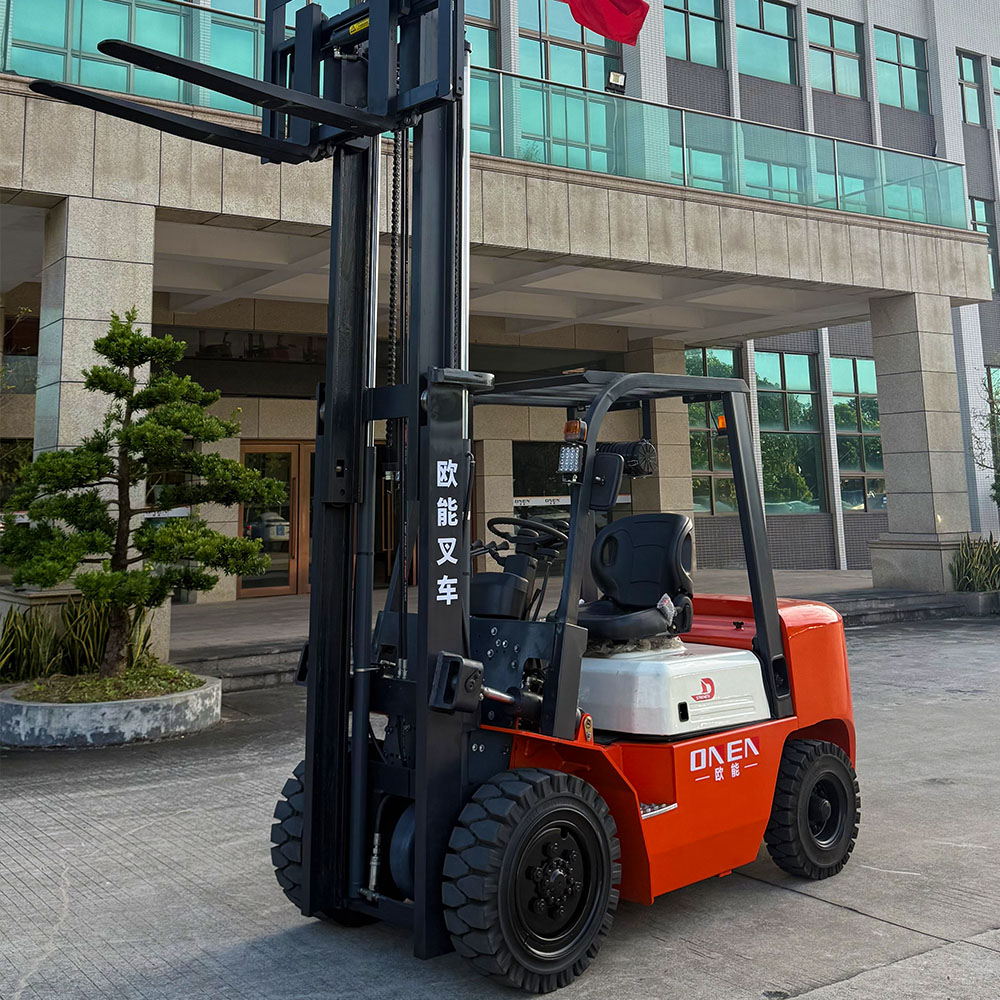

Diesel forklift catalog

CPC/CPCD-3555 is an outdoor workhorse designed specifically for heavy-duty and high-altitude stacking needs, featuring a 3.5-ton load capacity and a lifting height of 5.5 meters. It is widely used in logistics yards, port terminals, manufacturing workshops, and other scenarios.

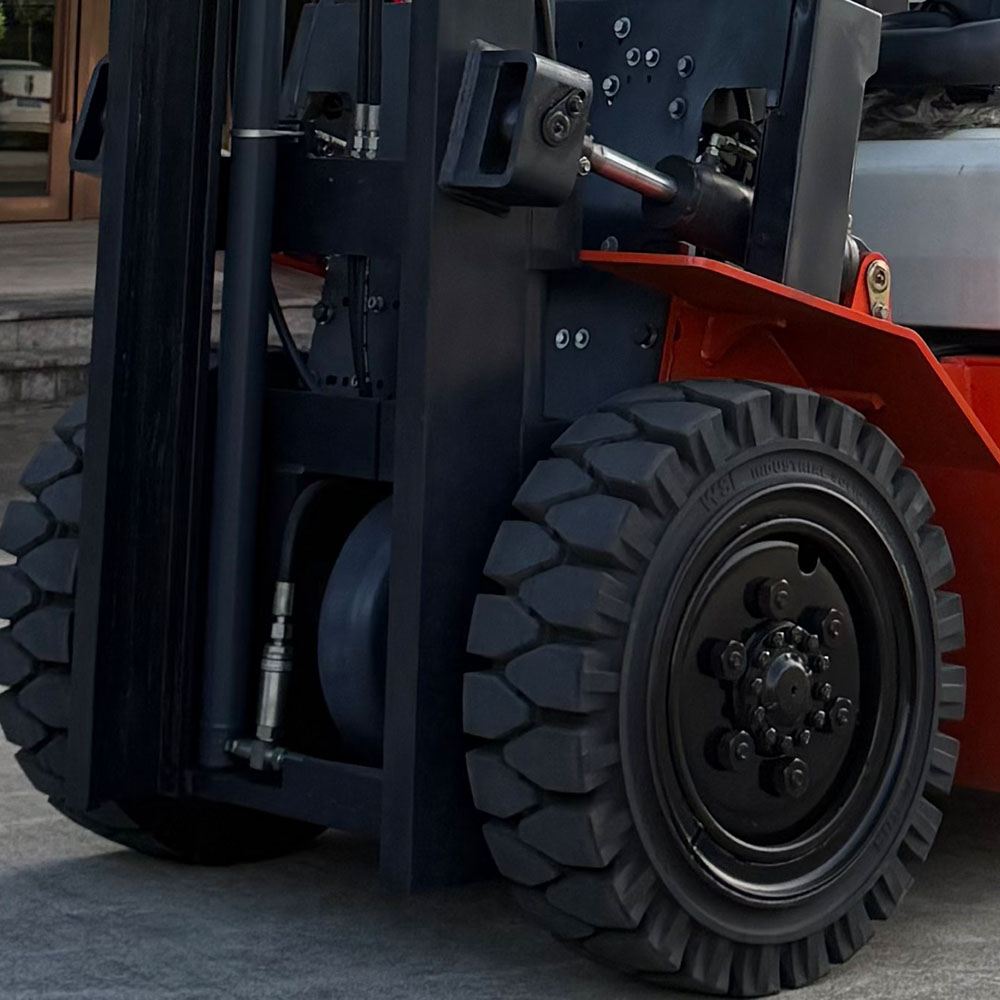

China diesel forklift exporterEquipped with a powerful diesel engine and a counterbalanced design, the forklift ensures stability and traction on rough roads and slopes. The three-level mast, reaching up to 5.5 meters, enables the forklift to easily handle container loading and unloading or stacking tasks on high-level racks, fully leveraging the rigidity advantage of the high-strength mast to achieve efficient and safe heavy-duty long-distance handling.


1 Model
CPC3555/CPCD3555
2 Powertype
diesel
3 Operation type
seated
4 Load capacity kg 3500
5 Load centre distance mm 500
6 Wheels type
Solid tires/Pneumatic tires(Optional)
7 Tire specification(Front/Rear)
28x9-15/6.50-10
8 Fork length mm 1070
9 Width overall forks (Adjustable) mm 1100/250
10 Overall Length (Without fork) mm 2690
11 Overall Width mm 1210
12 Lift height mm 5500
13 Extended mast height mm 6060
14 Mast lowered height mm 2470
15 Free height mm 1850
16 Tilt of mast carriage (Forward/Backward) α/β 6°/12°
17 Turning radius mm 2240
18 Travelspeed (Laden/Unladen) km/h 18/20
19 Lift speed (Laden/Unladen) mm/s 485/505
20 Lowering speed (Laden/Unladen) mm/s <600
21 Gradeability (Unladen) % 20
22 Service brake
Power brake (Pedal)
23 Parking brake
Mechanical (Manual)
24 Fuel capacity L 60
25 Engine model
Xinchal/Quanchai/YANMAR/KUBOTA
26 Battery (Voltage/Capacity) V/Ah 12/80
